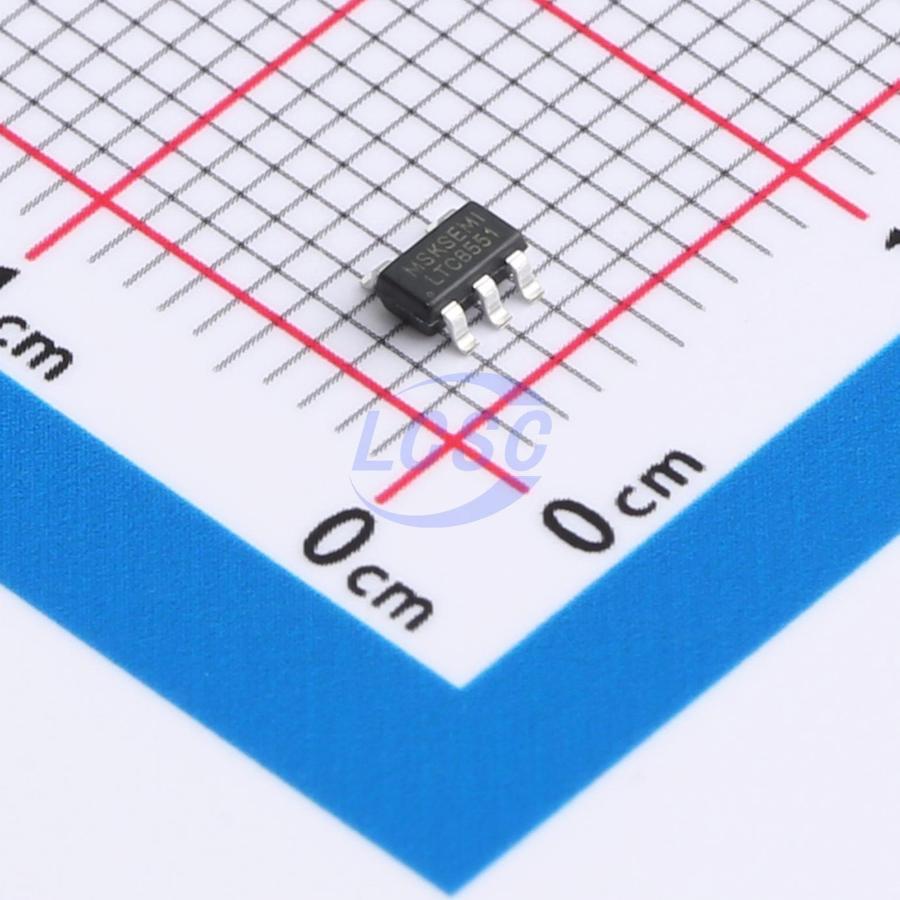

LTC8551-MS

30mA 1 2uV 5V/us 500pA 130dB 6MHz 600uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Ultra Low Noise Rail-to-Rail I/O CMOS Precision Operational Amplifiers

Manufacturer: MSKSEMI
Manufacturer part #: LTC8551-MS
Store part #: C22462534
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,835 in stock

#C22462534

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹33.58	₹167.90
50+	₹29.25	₹1,462.50
150+	₹27.40	₹4,110.00
500+	₹24.11	₹12,055.00
3,000+	₹23.07	₹69,210.00
6,000+	₹22.45	₹1,34,700.00

Quantity (min 5, multiples of 5)

5 × ₹33.58

₹167.90

excl. GST

₹198.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LTC8551-MS

₹167.90 for 5 + GST

Specifications

Output Current: 30mA
Number of Channels: 1
Vos - Input Offset Voltage: 2uV
Slew Rate: 5V/us
Input Offset Current(Ios): 50pA
Operating Temperature: -25℃~+125℃
Ib - Input Bias Current: 500pA
Common Mode Rejection Ratio(CMRR): 130dB
Input Offset Voltage Drift(Vos TC): 30nV/℃
Gain Bandwidth Product: 6MHz
Quiescent Current: 600uA
Features: Zero drift / auto-zero;Built-in compensation
Input Voltage Noise Density: 6nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-1V;1V~2.75V
Single Supply: 2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.041 g

Overview

The LTC8551-MS family represents a new generation of low-noise operational amplifiers, offering outstanding dc precision and ac performance. Rail-to-Rail input and output, low offset (2μV), low noise (6nV/√Hz), quiescent current of 600 μA, and a 6-MHz bandwidth make this part very attractive for a variety of precision and portable applications. In addition, this device has a reasonably wide supply range (2V to 5.5V) with excellent PSRR making it attractive for applications that run directly from batteries without regulation. The LTC8551-MS (single), LTC8552-MS (dual) and LTC 8554-MS (quad) families of operational amplifiers are specified for operation from -55°C to +125°C.

Applications

ADC Buffer
Audio Equipment
Medical Instrumentation
Handheld Test Equipment
Active Filtering Sensor Signal Conditioning

Key features

Input Offset Voltage: 2μV (Typical)
Zero Drift: 0.03μV/°C (Typical)
Ultra Low Noise: 6nV/√Hz at 1kHz
Supply Range: 2V to 5.5V
Gain Bandwidth: 6 MHz
Slew rate: 5V/μs
Quiescent current: 600μA (Vs = 5V)
Rail-to-Rail Input and Output
Micro size Packages: LTC8551-MS: SOT-23-5 LTC8552-MS: SOP-8 LTC8554-MS: SOP-14
