ADIDatasheet (PDF)

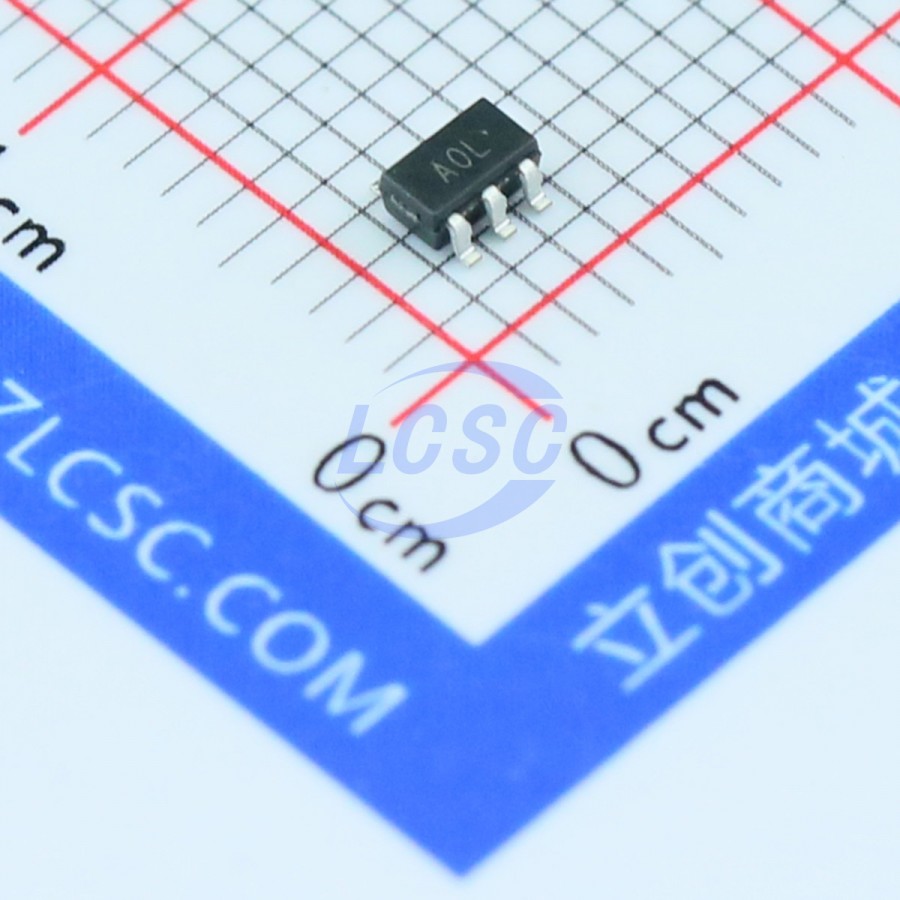

AD8628ARTZ-REEL7
10mA 1 1uV 1V/us 120dB 30pA 850uA 2.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
Zero-Drift, Single-Supply, Rail-to-Rail Input/Output Operational Amplifier
- Manufacturer
- ADI
- Manufacturer part #
- AD8628ARTZ-REEL7
- Store part #
- C29309
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25,477 in stock
#C29309
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹460.73 | ₹460.73 |
| 10+ | ₹405.08 | ₹4,050.80 |
| 30+ | ₹376.80 | ₹11,304.00 |
| 100+ | ₹338.75 | ₹33,875.00 |
| 500+ | ₹325.06 | ₹1,62,530.00 |
| 1,000+ | ₹319.19 | ₹3,19,190.00 |
1 × ₹460.73
₹460.73
excl. GST
₹543.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AD8628ARTZ-REEL7
₹460.73 for 1 + GST
Specifications
- Output Current
- 10mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1uV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 1.5nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 30pA
- Input Offset Voltage Drift(Vos TC)
- 2nV/℃
- Quiescent Current
- 850uA
- Gain Bandwidth Product
- 2.5MHz
- Features
- Zero drift / auto-zero;Built-in compensation;Overvoltage protection;Reverse-phase input protection
- Input Voltage Noise Density
- 22nV/√Hz@1kHz
- Dual Supply
- -2.5V~-1.35V;1.35V~2.5V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.047 g
Overview
This amplifier has ultralow offset, drift, and bias current. The AD8628/AD8629/AD8630 are wide bandwidth auto-zero amplifiers featuring rail-to-rail input and output swings and low noise. Operation is fully specified from 2.7 V to 5 V single supply (±1.35 V to ±2.5 V dual supply). The AD8628/AD8629/AD8630 provide benefits previously found only in expensive auto-zeroing or chopper-stabilized amplifiers. Using Analog Devices’ topology, these zero-drift amplifiers combine low cost with high accuracy and low noise. No external capacitor is required. In addition, the AD8628/ AD8629/AD8630 greatly reduce the digital switching noise found in most chopper-stabilized amplifiers. With an offset voltage of only 1 μV, drift of less than 0.005 μV/°C, and noise of only 0.5 μV p-p (0 Hz to 10 Hz), the AD8628/ AD8629/AD8630 are perfectly suited for applications in which error sources cannot be tolerated. Position and pressure sensors, medical equipment, and strain gage amplifiers benefit greatly from nearly zero drift over their operating temperature range. Many systems can take advantage of the railto-rail input and output swings provided by the AD8628/AD8629/AD8630 to reduce input biasing complexity and maximize SNR. The AD8628/AD8629/AD8630 are specified for the extended industrial temperature range -40°C to +125°C. The AD8628 is available in tiny TSOT-23, SOT-23, and the 8-lead narrow SOIC plastic packages. The AD8629 is available in the standard 8-lead narrow SOIC and MSOP plastic packages. The AD8630 quad amplifier is available in standard 14-lead SOIC and TSSOP plastic packages.
Applications
- Automotive sensors
- Pressure and position sensors
- Strain gage amplifiers
- Medical instrumentation
- Thermocouple amplifiers
- Precision current sensing
- Photodiode amplifier
Key features
- Lowest auto-zero amplifier noise
- Low offset voltage: 1 μV
- Input offset drift: 0.002 μV/°C
- Rail-to-rail input and output swing
- 5 V single-supply operation
- High gain, CMRR, and PSRR: 120 dB
- Very low input bias current: 100 pA max
- Low supply current: 1.0 mA
- Overload recovery time: 10 μs
- No external components required
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AD8628ARTZ-R2#C207504ADI · SOT-23-5 | ADI | SOT-23-5 | 387 | ₹658.42 · 387 in stock | View |
 | AD8628WAUJZ-R7#C653043ADI · TSOT-23-5 | ADI | TSOT-23-5 | 1 | ₹608.00 · 1 in stock | View |
| AD8628WARTZ-R7#C653040ADI · SOT-23-5 | ADI | SOT-23-5 | 805 | ₹355.50 · 805 in stock | View | |
 | AD8628AUJZ-REEL7#C141946ADI · TSOT-23-5 | ADI | TSOT-23-5 | 2,223 | ₹660.47 · 2,223 in stock | View |
 | CBM8628AST5#C19724796Corebai Microelectronics · SOT-23-5 | Corebai Microelectronics | SOT-23-5 | 1,851 | ₹122.63 · 1,851 in stock | View |
