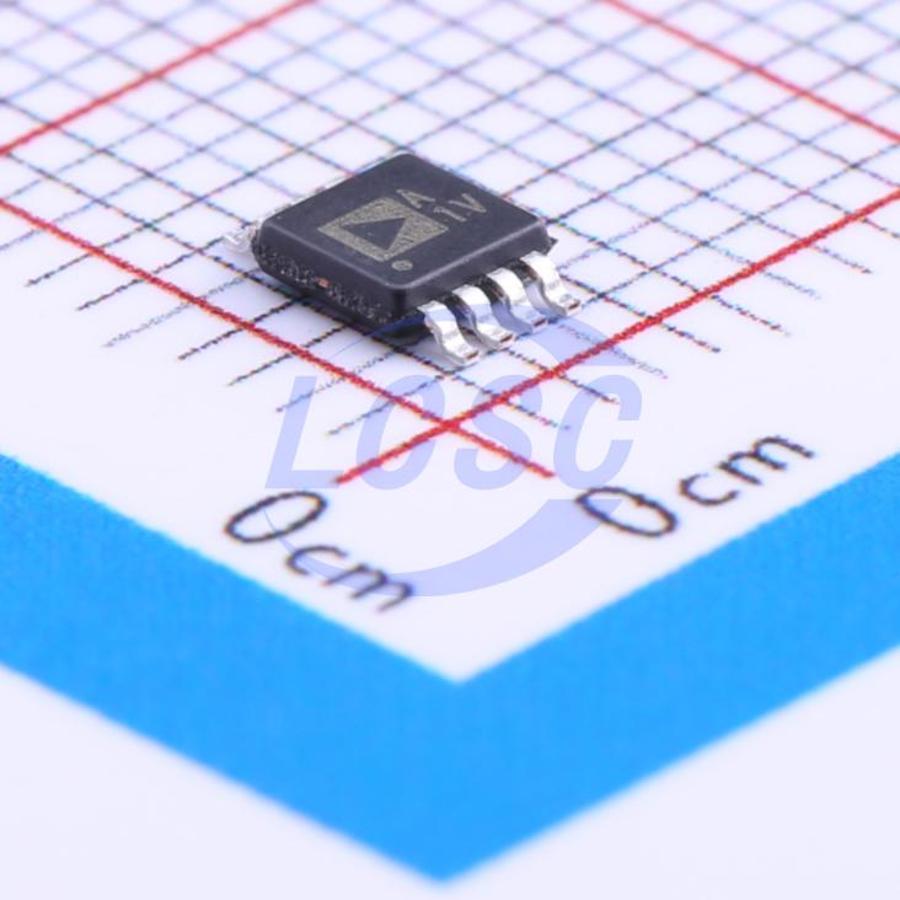

AD8646ARMZ-REEL

120mA 2 2.5mV 11V/us 116dB 0.3pA 1.5mA 24MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS3 CompliantActive

24 MHz Rail-to-Rail Amplifiers with Shutdown Option

Manufacturer: ADI
Manufacturer part #: AD8646ARMZ-REEL
Store part #: C182138
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

196 in stock

#C182138

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹234.36	₹234.36
10+	₹200.47	₹2,004.70
30+	₹178.98	₹5,369.40
100+	₹157.25	₹15,725.00
500+	₹141.19	₹70,595.00
1,000+	₹136.84	₹1,36,840.00

Quantity (min 1)

1 × ₹234.36

₹234.36

excl. GST

₹276.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AD8646ARMZ-REEL

₹234.36 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 120mA
Number of Channels: 2
Vos - Input Offset Voltage: 2.5mV
Slew Rate: 11V/us
Input Offset Current(Ios): 0.5pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 116dB
Ib - Input Bias Current: 0.3pA
Input Offset Voltage Drift(Vos TC): 1.8uV/℃
Quiescent Current: 1.5mA
Gain Bandwidth Product: 24MHz
Features: Built-in compensation
Input Voltage Noise Density: 8nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.105 g
