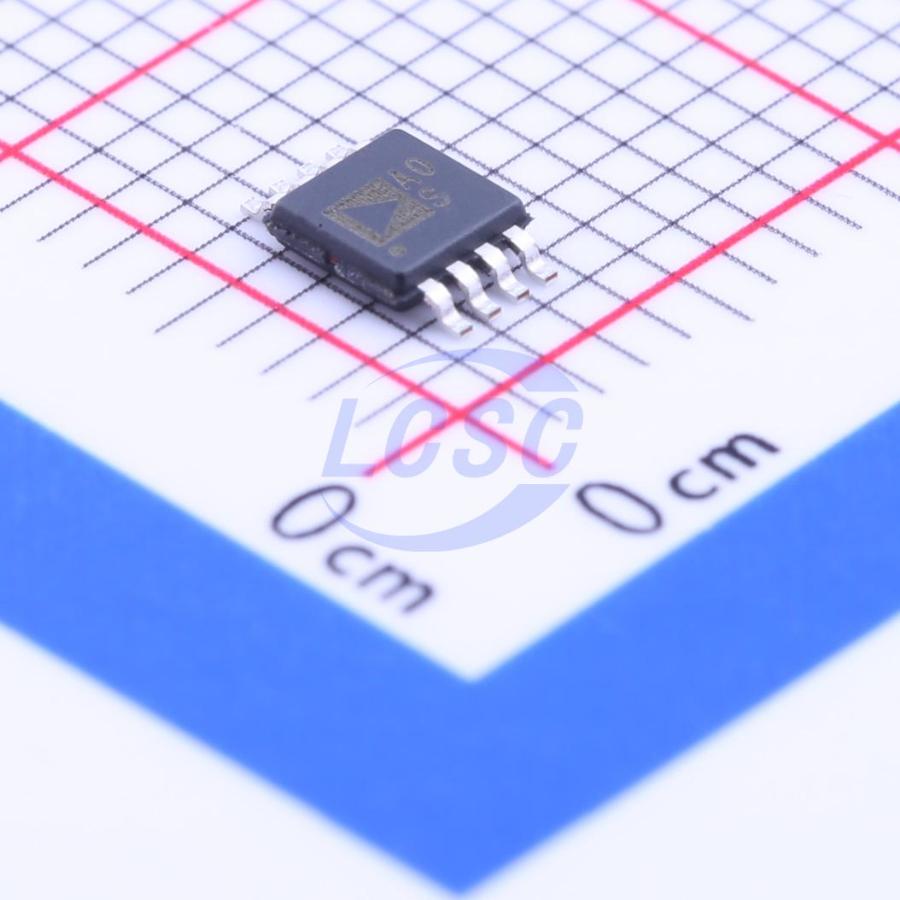

AD8656ARMZ-REEL

220mA 1 50uV 11V/us 10pA 100dB 28MHz 4.5mA Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS3 CompliantActive

Low-noise, precision CMOS amplifier

Manufacturer: ADI
Manufacturer part #: AD8656ARMZ-REEL
Store part #: C208582
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,650 in stock

#C208582

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹435.61	₹435.61
10+	₹367.03	₹3,670.30
30+	₹324.27	₹9,728.10
100+	₹280.21	₹28,021.00
500+	₹260.46	₹1,30,230.00
1,000+	₹251.78	₹2,51,780.00

Quantity (min 1)

1 × ₹435.61

₹435.61

excl. GST

₹514.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AD8656ARMZ-REEL

₹435.61 for 1 + GST

Specifications

Output Current: 220mA
Number of Channels: 1
Vos - Input Offset Voltage: 50uV
Slew Rate: 11V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 100dB
Input Offset Voltage Drift(Vos TC): 400nV/℃
Gain Bandwidth Product: 28MHz
Quiescent Current: 4.5mA
Features: Built-in compensation;ESD protection;Reverse-phase input protection
Input Voltage Noise Density: 2.7nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.105 g

Overview

The AD8655/AD8656 are precision CMOS amplifiers featuring industry-leading low noise. Both utilize DigiTrim technology to achieve high DC accuracy. The AD8655/AD8656 deliver low noise (2.7 nV/√Hz at 10 kHz), low THD+N (0.0007%), and high precision performance (maximum 250 μV over VCM) for low-voltage applications. Rail-to-rail input and output swing capability allows designers to buffer ADCs and other wide dynamic range devices in single-supply systems. In low-voltage applications, the high precision of the AD8655/AD8656 improves resolution and dynamic range. Audio applications such as microphone preamplifiers and mixing consoles benefit from the low noise, low distortion, and high output current capability of the AD8655/AD8656, reducing system-level noise and ensuring audio fidelity. The high precision and rail-to-rail input and output of the AD8655/AD8656 also benefit data acquisition, process control, and PLL filter applications. The AD8655/AD8656 are rated for a temperature range of -40°C to +125°C. The AD8655/AD8656 are available in lead-free, 8-lead MSOP and SOIC packages.

Applications

ADC and DAC buffers
Audio
Industrial control
Precision filters
Digital scales
Automotive collision avoidance
PLL filters

Key features

Low noise: 2.7 nV/√Hz nE = 10(kHz)
Low offset voltage: 250 μV max over vcm
Offset voltage drift: 0.4 μV/°C (typical); 2.3 μV/°C (maximum)
Bandwidth: 28 MHz
Rail-to-rail input/output
Unity-gain stable
Supply voltage range: 2.7V to 5.5V
Operating temperature range: -40°C to +125°C
Automotive qualified (AD8656)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
AD8656ARMZ#C209459ADI · MSOP-8	ADI	MSOP-8	36	₹571.31 · 36 in stock	View
AD8655ARMZ-REEL#C578057ADI · MSOP-8	ADI	MSOP-8	12	₹445.81 · 12 in stock	View
GM45002ARMZ-R7#C20421906GONGMOSEMI · MSOP-8-EP	GONGMOSEMI	MSOP-8-EP	1,275	₹270.87 · 1,275 in stock	View
