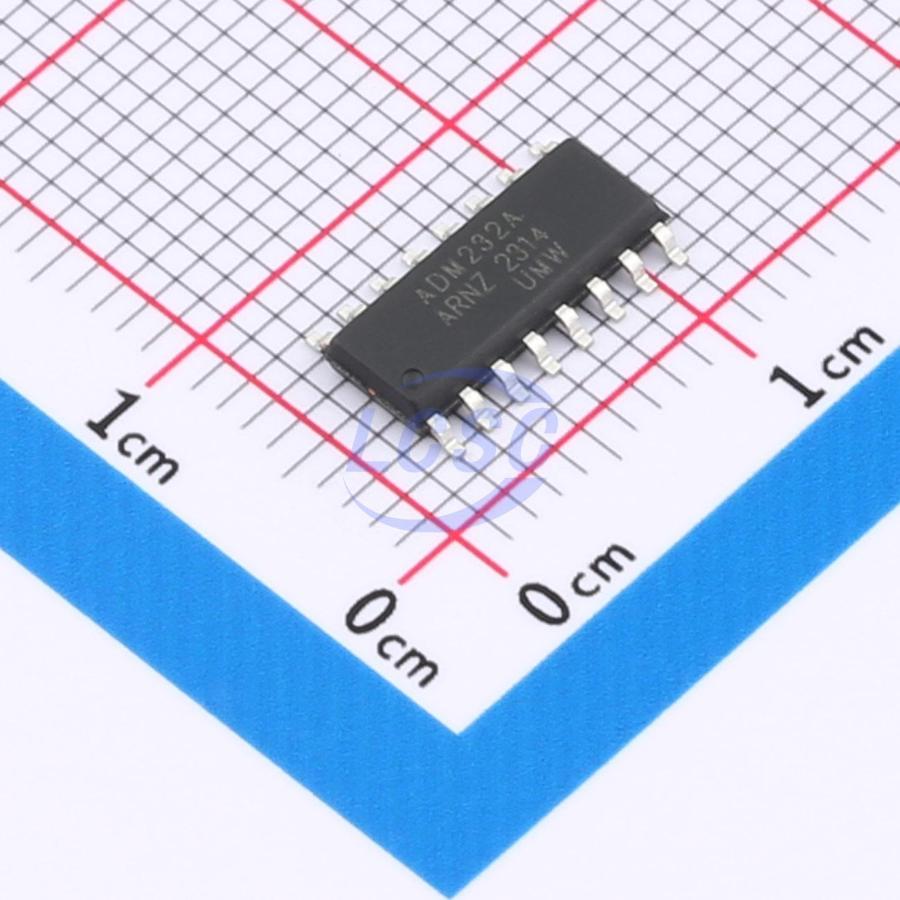

ADM232AARNZ(UMW)
4.5V~5.5V Transceiver 120Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
+5V-Powered, Multi-Channel RS-232 Drivers/Receivers
- Manufacturer
- UMW
- Manufacturer part #
- ADM232AARNZ(UMW)
- Store part #
- C2904792
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,484 in stock
#C2904792
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹45.10 | ₹45.10 |
| 10+ | ₹39.31 | ₹393.10 |
| 30+ | ₹36.73 | ₹1,101.90 |
| 100+ | ₹33.72 | ₹3,372.00 |
| 500+ | ₹31.79 | ₹15,895.00 |
| 1,000+ | ₹30.93 | ₹30,930.00 |
1 × ₹45.10
₹45.10
excl. GST
₹53.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ADM232AARNZ(UMW)
₹45.10 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 120Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±2kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 10mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.268 g
Overview
The ADM232A features two drivers and two receivers. The drivers and receivers comply with all EIA/TIA-232E and CCITT V.28 specifications, supporting data rates up to 200kB/s when loaded in accordance with EIA/TIA-232E specifications.
Key features
- Single +5V supply
- Guaranteed 200kB/s data rate
- Latch-up free
- ESD protection ±2kV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP232EEN(UMW)#C2904740UMW · SOP-16 | UMW | SOP-16 | 29,805 | ₹44.43 · 29,805 in stock | View |
 | MAX232ESE(UMW)#C2904791UMW · SOP-16 | UMW | SOP-16 | 6,797 | ₹57.14 · 6,797 in stock | View |
 | ST232BDR(UMW)#C2987705UMW · SOP-16 | UMW | SOP-16 | 5,905 | ₹32.64 · 5,905 in stock | View |
 | MAX3232ESE(UMW)#C2904738UMW · SOP-16 | UMW | SOP-16 | 14,118 | ₹61.15 · 14,118 in stock | View |
 | ST3232BDR(UMW)#C2987706UMW · SOP-16 | UMW | SOP-16 | 4,650 | ₹49.56 · 4,650 in stock | View |
