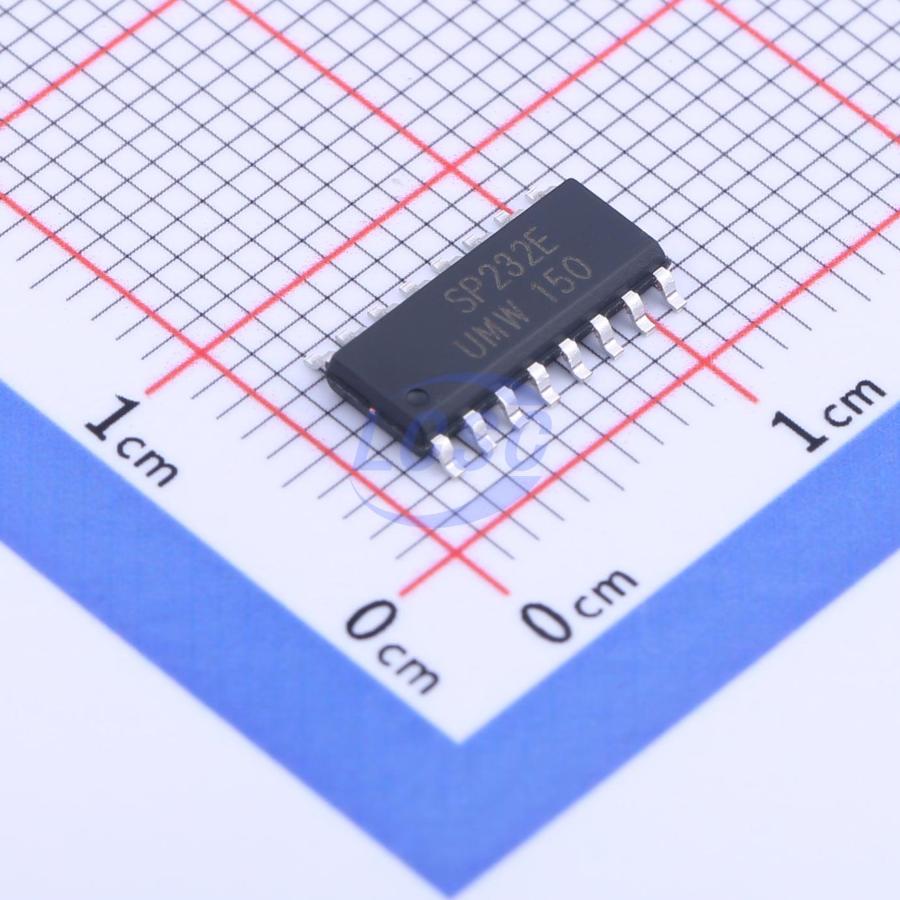

SP232EEN(UMW)
4.5V~5.5V Transceiver 120Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
+5V-Powered, Multi-Channel RS-232 Drivers/Receivers
- Manufacturer
- UMW
- Manufacturer part #
- SP232EEN(UMW)
- Store part #
- C2904740
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30,680 in stock
#C2904740
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.43 | ₹222.15 |
| 50+ | ₹34.42 | ₹1,721.00 |
| 150+ | ₹30.14 | ₹4,521.00 |
| 500+ | ₹24.79 | ₹12,395.00 |
| 2,500+ | ₹21.29 | ₹53,225.00 |
| 5,000+ | ₹19.86 | ₹99,300.00 |
5 × ₹44.43
₹222.15
excl. GST
₹262.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP232EEN(UMW)
₹222.15 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 120Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±2kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 10mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.287 g
Overview
UMW SP232EEN contains two drivers and two receivers. When loaded in accordance with EIA/TIA-232E specifications, its drivers and receivers meet all EIA/TIA-232 and CCITT V.28 specifications at data rates up to 120kbps.
Key features
- Single +5V supply
- Guaranteed 120kbps data rate
- Latch-up free
- ±2kV ESD protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX232ESE(UMW)#C2904791UMW · SOP-16 | UMW | SOP-16 | 10,825 | ₹57.14 · 10,825 in stock | View |
 | ADM232AARNZ(UMW)#C2904792UMW · SOP-16 | UMW | SOP-16 | 5,484 | ₹45.10 · 5,484 in stock | View |
 | ST232BDR(UMW)#C2987705UMW · SOP-16 | UMW | SOP-16 | 5,915 | ₹32.64 · 5,915 in stock | View |
 | MAX3232ESE(UMW)#C2904738UMW · SOP-16 | UMW | SOP-16 | 21,924 | ₹61.15 · 21,924 in stock | View |
 | ST3232BDR(UMW)#C2987706UMW · SOP-16 | UMW | SOP-16 | 4,690 | ₹49.56 · 4,690 in stock | View |
