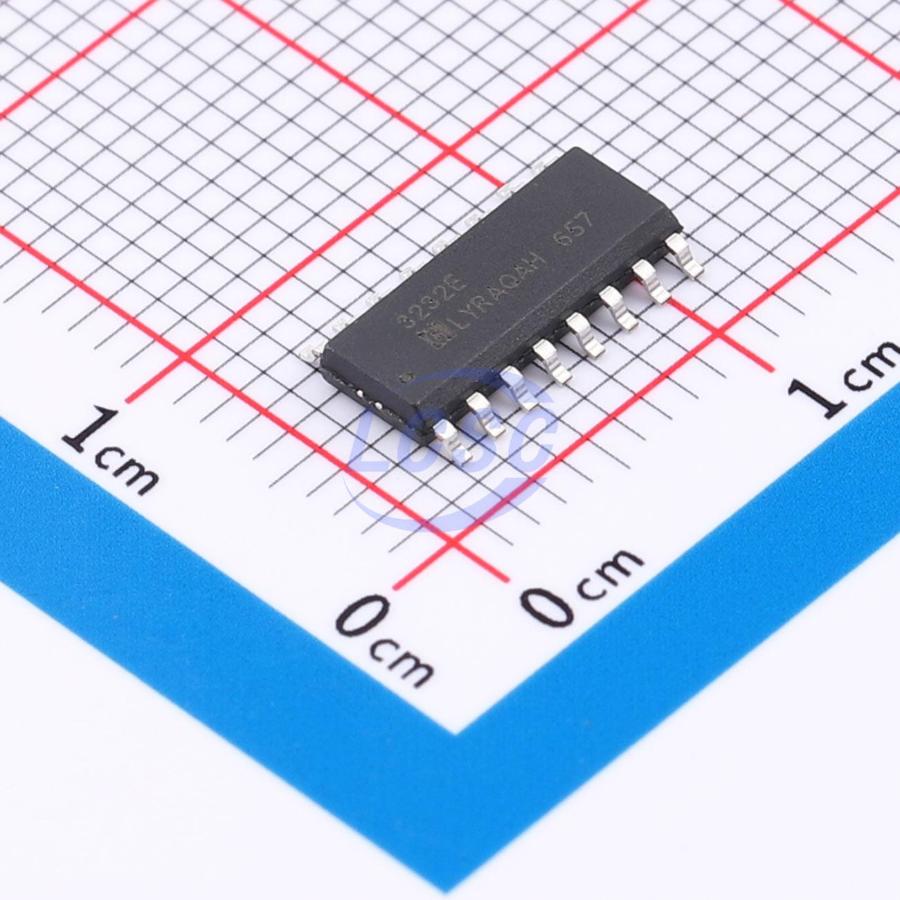

ADM3232EARNZ/HG
Transceiver 3.3V~5.5V 120Kbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- ADM3232EARNZ/HG
- Store part #
- C53433739
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,495 in stock
#C53433739
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.05 | ₹71.05 |
| 10+ | ₹57.42 | ₹574.20 |
| 30+ | ₹50.72 | ₹1,521.60 |
| 100+ | ₹44.02 | ₹4,402.00 |
| 500+ | ₹40.03 | ₹20,015.00 |
| 1,000+ | ₹37.93 | ₹37,930.00 |
1 × ₹71.05
₹71.05
excl. GST
₹83.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ADM3232EARNZ/HG
₹71.05 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3.3V~5.5V
- Data Rate
- 120Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.382 g
Overview
The ADM3232E is a 3.3V-powered EIA/TIA-232 and V.28/V.24 communications interface with low power consumption and high data rate capability. The ADM3232E features a proprietary low dropout transmitter output stage that delivers true RS-232 performance from a 3.3V to 5.5V supply. The device operates from a 3.3V supply using only four small, standard 0.1μF external capacitors. The ADM3232E incorporates two receivers and two drivers. The device is guaranteed to operate at data rates of 120Kbps while maintaining RS-232 output levels. Typical applications include laptop, subnotebook, and palmtop computers, battery-powered equipment, handheld devices, peripherals, and printers.
Applications
- Notebook computers, sub-notebook computers and PDAs, battery-powered devices, handheld devices, peripherals and printers
Key features
- Supply current 300μA
- Maximum guaranteed data rate 120Kbps
- Minimum guaranteed slew rate 3V/μs
- Enhanced ESD specifications:
- ±15kV IEC61000-4-2 air discharge
- ±8kV IEC61000-4-2 contact discharge
- Available in SOP-16 and TSSOP-16 packages
