UMWDatasheet (PDF)

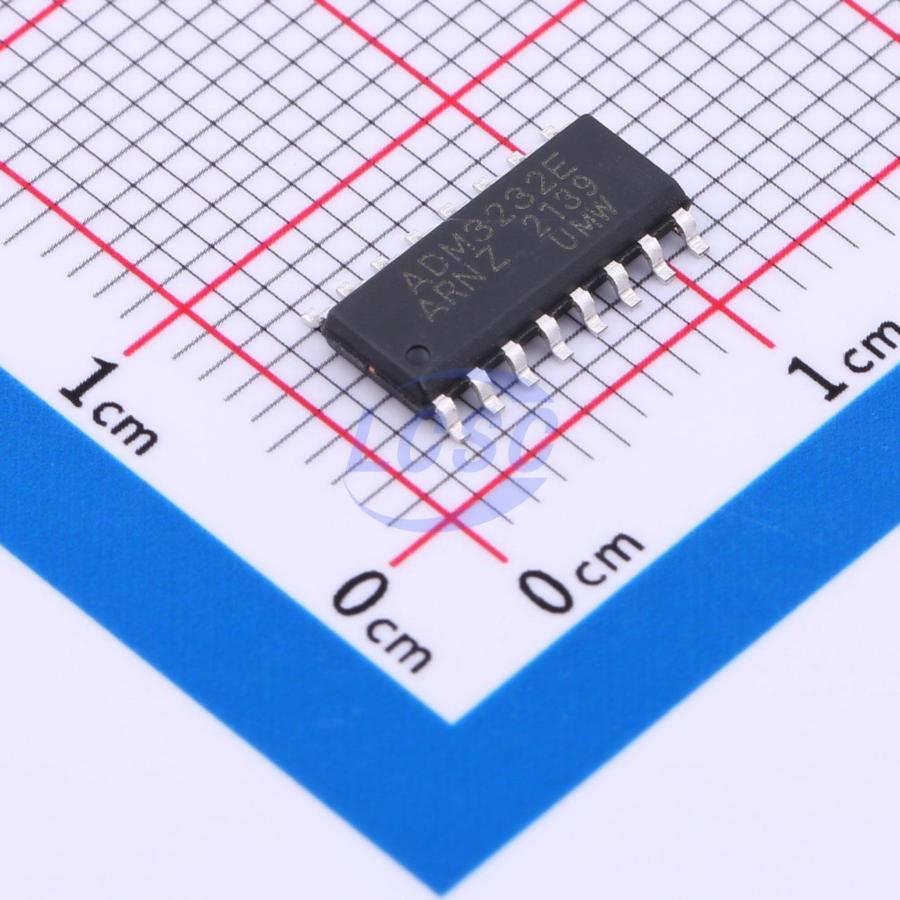

ADM3232EARNZ(UMW)
Transceiver 3V~5.5V 235Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
True RS-232 Transceivers
- Manufacturer
- UMW
- Manufacturer part #
- ADM3232EARNZ(UMW)
- Store part #
- C2904793
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,280 in stock
#C2904793
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.79 | ₹74.79 |
| 10+ | ₹58.89 | ₹588.90 |
| 30+ | ₹52.01 | ₹1,560.30 |
| 100+ | ₹43.63 | ₹4,363.00 |
| 500+ | ₹39.12 | ₹19,560.00 |
| 1,000+ | ₹36.75 | ₹36,750.00 |
1 × ₹74.79
₹74.79
excl. GST
₹88.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ADM3232EARNZ(UMW)
₹74.79 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 235Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.274 g
Overview
The ADM3222A/3232E series is an RS-232 transceiver solution designed for portable or handheld applications such as notebook computers or PDAs. This series features a high-efficiency charge pump power supply requiring only 0.1μF capacitors at 3.3V operating voltage. The charge pump enables true RS-232 performance from a single supply (ranging from +3.3V to +5.0V). The ADM3222A/3232E are 2-driver/2-receiver devices ideally suited for portable or handheld applications such as notebook computers or PDAs.
Key features
- Meets true EIA/TIA-232-F standard with +3.0V to +5.5V supply
- Minimum data rate of 120Kbps under full-load conditions
- 1μA low-power shutdown mode with receiver active (ADM3222A)
- Enhanced ESD specifications: ±15kV Human Body Model, ±15kV IEC1000-4-2 air discharge, ±8kV IEC1000-4-2 contact discharge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP3232EEN(UMW)#C2904739UMW · SOP-16 | UMW | SOP-16 | 1,57,315 | ₹36.51 · 1,57,315 in stock | View |
 | ST3232CDR(UMW)#C19185931UMW · SOP-16 | UMW | SOP-16 | 4,477 | ₹41.03 · 4,477 in stock | View |
 | MAX3232IDR(UMW)#C5721296UMW · SOP-16 | UMW | SOP-16 | 6,230 | ₹42.27 · 6,230 in stock | View |
 | MAX3232CSE(UMW)#C5693009UMW · SOP-16 | UMW | SOP-16 | 1,670 | ₹49.10 · 1,670 in stock | View |
 | MAX3232CDR(UMW)#C5721293UMW · SOP-16 | UMW | SOP-16 | 1,880 | ₹40.43 · 1,880 in stock | View |
