Wuxi I-core ElecDatasheet (PDF)

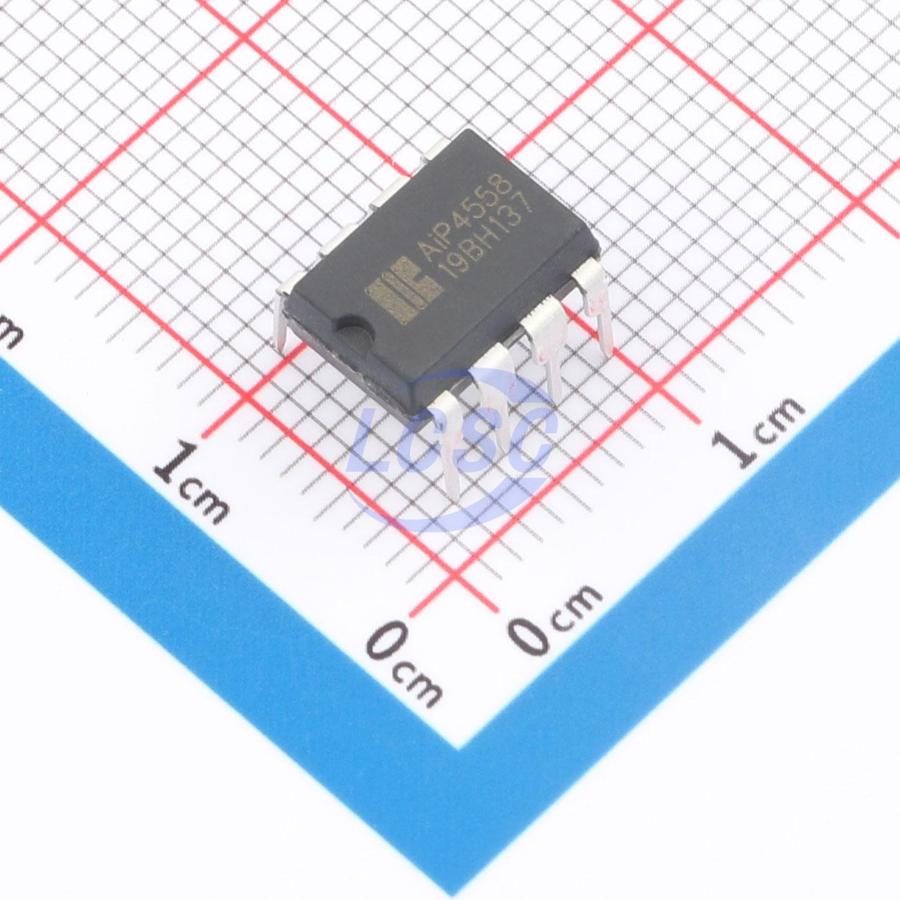

AiP4558DA8.TB
2 500uV 1.1V/us 150nA 90dB 3.6mA 3MHz DIP-8 Instrumentation, Op Amps, Buffer Amps
DIP-8RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP4558DA8.TB
- Store part #
- C52722517
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C52722517
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.74 | ₹83.70 |
| 50+ | ₹13.30 | ₹665.00 |
| 150+ | ₹11.58 | ₹1,737.00 |
| 500+ | ₹10.29 | ₹5,145.00 |
| 2,000+ | ₹9.26 | ₹18,520.00 |
| 4,000+ | ₹8.75 | ₹35,000.00 |
5 × ₹16.74
₹83.70
excl. GST
₹98.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
AiP4558DA8.TB
₹83.70 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 1.1V/us
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 150nA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Quiescent Current
- 3.6mA
- Gain Bandwidth Product
- 3MHz
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.15 g
Overview
The AiP4558 integrates two independent, high-gain, internally frequency-compensated general-purpose operational amplifiers. The device operates from a wide supply voltage range with single-supply power, and also supports dual-supply operation. The internal frequency compensation ensures stable circuit operation without external components. Its wide common-mode input voltage range and latch-up-free characteristics make it suitable for voltage followers, DC gain stages, and all other standard op-amp applications.
Applications
- Voltage follower
- DC gain stage
- Industrial control
- General-purpose op-amp applications
Key features
- Wide common-mode and differential voltage range
- No frequency compensation required
- Low power consumption
- Latch-up free
- Unity-gain bandwidth: 3MHz (typical)
- Excellent gain and phase matching between amplifiers
- Low noise: 8 nV/√Hz typical
- Package: SOP8, DIP8, SIP8, SOP8(W)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP5532DA8.TB#C52722527Wuxi I-core Elec · DIP-8 | Wuxi I-core Elec | DIP-8 | 1,985 | ₹49.16 · 1,985 in stock | View |
 | AiP4580DA8.TB#C52994652Wuxi I-core Elec · DIP-8 | Wuxi I-core Elec | DIP-8 | 10 | ₹23.07 · 10 in stock | View |
