Wuxi I-core ElecDatasheet (PDF)

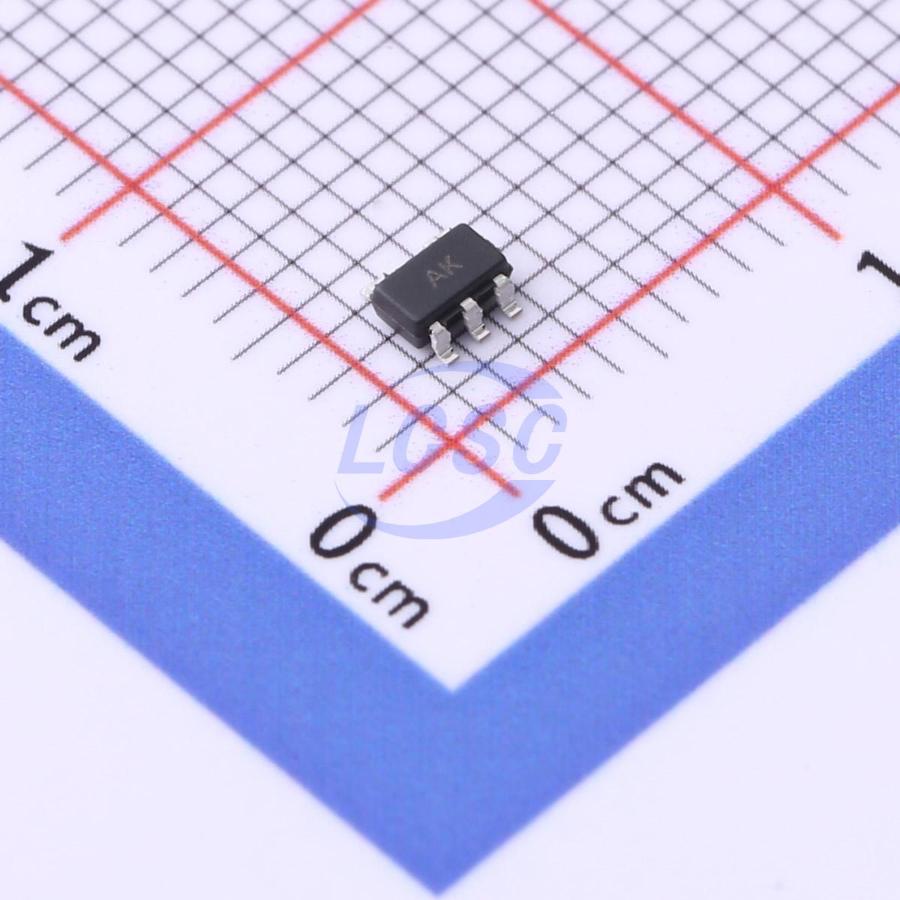

AiP74LVC1G14GB235.TR
Schmitt trigger 1.65V~5.5V 1 1 3ns@3.3V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
Single Inverter Schmitt Trigger
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP74LVC1G14GB235.TR
- Store part #
- C3294715
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,510 in stock
#C3294715
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.91 | ₹79.10 |
| 100+ | ₹6.13 | ₹613.00 |
| 300+ | ₹5.23 | ₹1,569.00 |
| 3,000+ | ₹4.55 | ₹13,650.00 |
| 6,000+ | ₹4.01 | ₹24,060.00 |
| 9,000+ | ₹3.74 | ₹33,660.00 |
10 × ₹7.91
₹79.10
excl. GST
₹93.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP74LVC1G14GB235.TR
₹79.10 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+105℃
- Quiescent Supply Current
- 4uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
The AiP74LVC1G14 provides the inverting buffer function with Schmitt-trigger input. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. The input can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment. Schmitt-trigger action at the input makes the circuit tolerant for slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The I_OFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range from 1.65V to 5.5V
- ±24 mA output drive (V_CC = 3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 250 mA
- Direct interface with TTL levels
- Unlimited rise and fall times
- Input accepts voltages up to 5V
- Specified from -40 ℃ to +105 ℃
- Packaging information: SOT-23-5/SOT-353
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AIP74LVC1G17GB235.TR#C4945069Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 2,570 | ₹12.40 · 2,570 in stock | View |
| AiP74LVC1G34GB235.TR#C52121050Wuxi I-core Elec · SOT23-5 | Wuxi I-core Elec | SOT23-5 | 2,150 | ₹6.73 · 2,150 in stock | View | |
 | AIP74LVC1G07GB235.TR#C4945063Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 150 | ₹9.64 · 150 in stock | View |
 | AiP74LVC1G125GB235.TR#C3294717Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 1,820 | ₹8.27 · 1,820 in stock | View |
 | AIP74LVC1G126GB235.TR#C3294719Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 2,720 | ₹9.66 · 2,720 in stock | View |
