AIP74LVC1G17GB235.TR
Schmitt trigger 1.65V~5.5V 1 1 2.2ns@5V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive

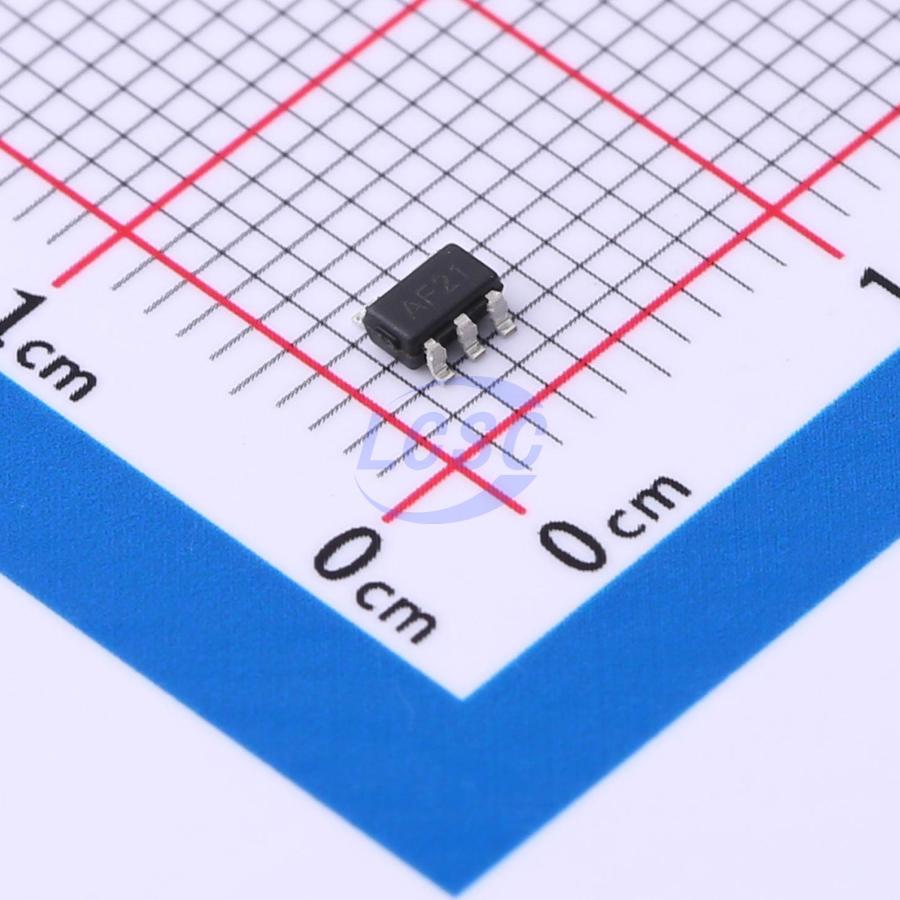

Single Buffer Schmitt Trigger
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AIP74LVC1G17GB235.TR
- Store part #
- C4945069
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,570 in stock
#C4945069
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹12.40 | ₹124.00 |
| 100+ | ₹9.59 | ₹959.00 |
| 300+ | ₹8.18 | ₹2,454.00 |
| 3,000+ | ₹7.13 | ₹21,390.00 |
| 6,000+ | ₹6.28 | ₹37,680.00 |
| 9,000+ | ₹5.86 | ₹52,740.00 |
10 × ₹12.40
₹124.00
excl. GST
₹146.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AIP74LVC1G17GB235.TR
₹124.00 for 10 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 32mA
- Input type
- Schmitt trigger
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+105℃
- Quiescent Supply Current
- 4uA
- Propagation Delay
- 2.2ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.05 g
Overview
The AiP74LVC1G17 provides a buffer function with Schmitt trigger input. It is capable of transforming slowly changing input signals into sharply defined outputs. The input can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment. This device is fully specified for partial power-down applications using IOFF. The I_OFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range from 1.65V to 5.5V
- ±24mA output drive (V_CC = 3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- Direct interface with TTL levels
- Unlimited rise and fall times
- Input accepts voltages up to 5V
- Specified from -40℃ to +105℃
- Packaging information: SOT-23-5/SOT-353
