Wuxi I-core ElecDatasheet (PDF)

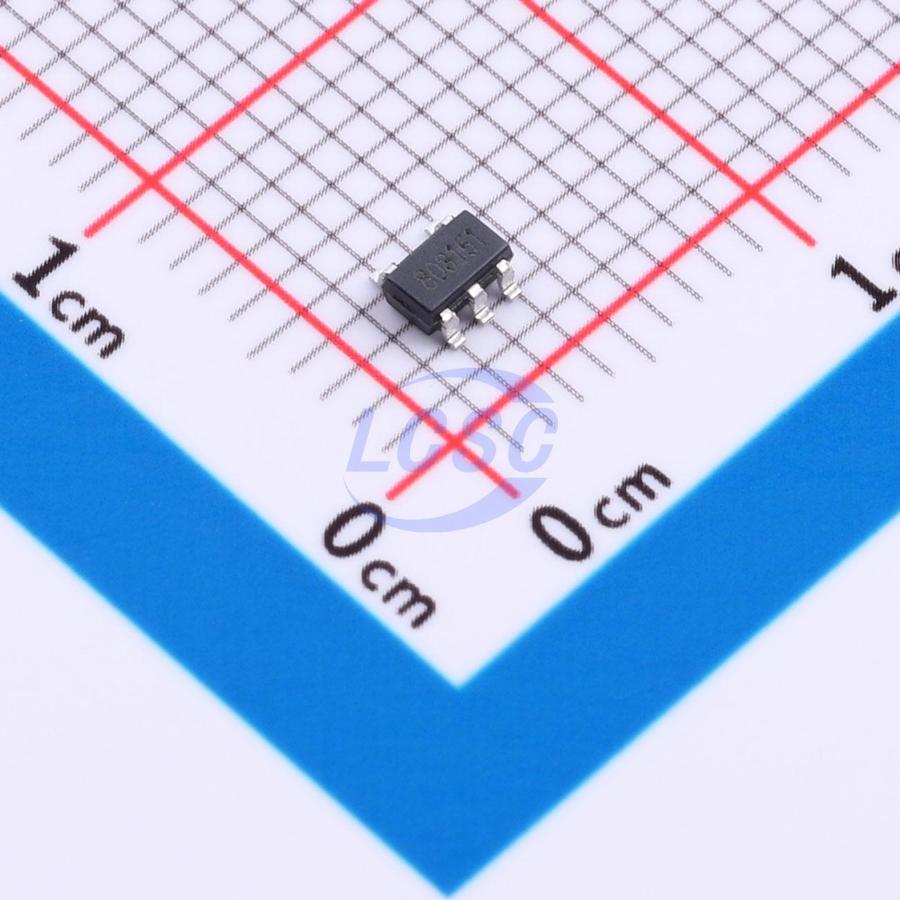

AiP8031GB235.TR
185mA 1 2mV 68V/us 85dB 3pA 2.5mA 50MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP8031GB235.TR
- Store part #
- C52953049
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,995 in stock
#C52953049
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.29 | ₹221.45 |
| 50+ | ₹34.77 | ₹1,738.50 |
| 150+ | ₹30.68 | ₹4,602.00 |
| 500+ | ₹25.60 | ₹12,800.00 |
| 3,000+ | ₹23.32 | ₹69,960.00 |
| 6,000+ | ₹21.96 | ₹1,31,760.00 |
5 × ₹44.29
₹221.45
excl. GST
₹261.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP8031GB235.TR
₹221.45 for 5 + GST
Specifications
- Output Current
- 185mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 68V/us
- Input Offset Current(Ios)
- 3pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 3pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 2.5mA
- Gain Bandwidth Product
- 50MHz
- Input Voltage Noise Density
- 8nV/√Hz@1MHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.155 g
Overview
The AiP803X series are rail-to-rail input/output op-amps, including single, dual, and quad-channel versions without shutdown control pins, as well as single and dual-channel versions with shutdown control pins. This series is primarily used in filters, audio and video processing, data acquisition, and test equipment. It is a CMOS rail-to-rail input/output op-amp featuring a 50MHz gain-bandwidth product, 68V/us slew rate, and unity-gain stability, suitable for use as a +1V/V voltage follower, with a supply voltage range of +2.5V to +5.5V (±1.25V to ±2.75V).
Applications
- Filters
- Audio and video processing
- Data acquisition
- Test equipment
Key features
- Supply voltage: 2.5V~5.5V
- Unity-gain bandwidth: 100MHz
- Gain-bandwidth product: 50MHz
- Slew rate: 68V/us
- Low offset voltage: ≤2mV
- Low noise: 8nV/√Hz
- Rail-to-rail input/output
- High output short-circuit current: >50mA
- Excellent video performance
- Low input bias current: 3pA
- Thermal shutdown
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP8051GB235.TR#C52953044Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 55 | ₹32.03 · 55 in stock | View |
 | AiP8071GB235.TR#C52953052Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 2,875 | ₹48.45 · 2,875 in stock | View |
 | AiP8041GB235.TR#C54899976Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | On request | Price on request | Quote |
