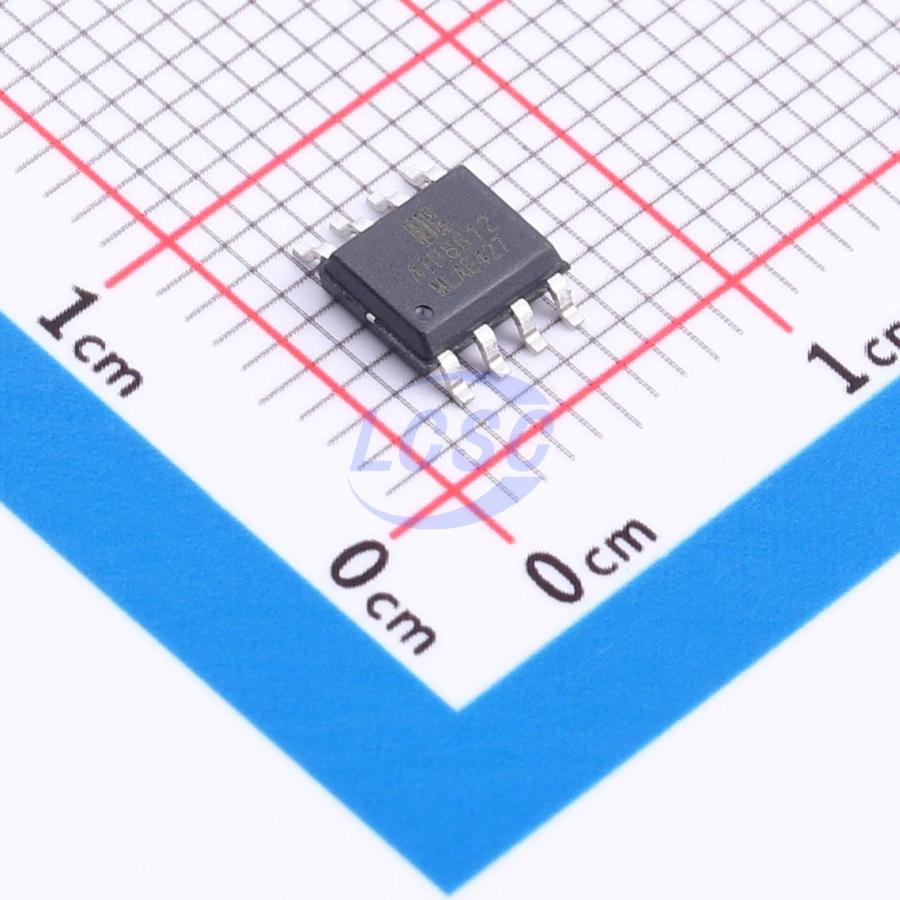

AiP8612SA8.TR

35mA 2 3mV 74V/ms 85dB 4pA 150kHz 4.8uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP8612SA8.TR
Store part #: C52994630
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,800 in stock

#C52994630

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.79	₹108.95
50+	₹17.19	₹859.50
150+	₹15.21	₹2,281.50
500+	₹12.75	₹6,375.00
2,500+	₹11.66	₹29,150.00
4,000+	₹10.99	₹43,960.00

Quantity (min 5, multiples of 5)

5 × ₹21.79

₹108.95

excl. GST

₹128.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

AiP8612SA8.TR

₹108.95 for 5 + GST

Specifications

Output Current: 35mA
Number of Channels: 2
Vos - Input Offset Voltage: 3mV
Slew Rate: 74V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 85dB
Ib - Input Bias Current: 4pA
Input Offset Voltage Drift(Vos TC): 900nV/℃
Gain Bandwidth Product: 150kHz
Quiescent Current: 4.8uA
Features: Built-in compensation
Input Voltage Noise Density: 88nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-1V;1V~2.75V
Single Supply: 2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.205 g

Overview

The AiP861x series are micropower rail-to-rail input/output op-amps. The series includes the AiP8611, AiP8612, and AiP8614 (single, dual, and quad-channel op-amps without enable control pins, respectively), as well as the AiP8613 and AiP8619 (single and dual-channel op-amps with enable control pins, respectively). The devices operate from supply voltages as low as 2V, with a quiescent current of 5μA per amplifier. With a gain-bandwidth product of 150kHz and unity-gain stability, these op-amps are well suited for battery-powered applications such as battery current monitors, sensor conditioning, and portable instrumentation.

Key features

Gain-Bandwidth Product: 150kHz
Slew Rate: 0.074 V/μs
Unity-Gain Stable
Offset Voltage: ≤ 3mV
Offset Voltage Drift: 0.9 μV/℃
Input Common-Mode Range: (V-) - 0.1V ~ (V+) + 0.1V
Quiescent Current/Amplifier: 5 μA
Supply Range: 2V ~ 5.5V
Temperature Range: -40℃ ~ 125℃
Substrate Connected to VSN (if Die)
