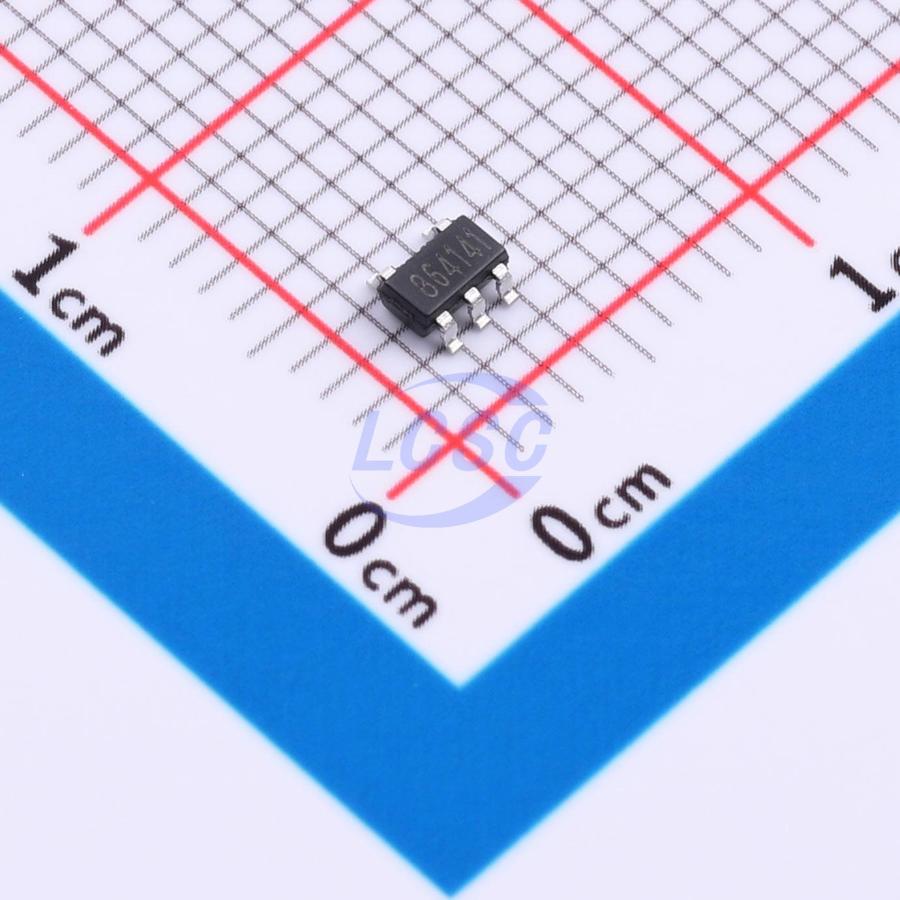

AiP8641GB235.TR
23mA 1 400uV 4.2V/ms 1pA 92dB 15kHz 700nA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP8641GB235.TR
- Store part #
- C52953072
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C52953072
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.31 | ₹186.55 |
| 50+ | ₹29.11 | ₹1,455.50 |
| 150+ | ₹25.59 | ₹3,838.50 |
| 500+ | ₹21.21 | ₹10,605.00 |
| 3,000+ | ₹19.25 | ₹57,750.00 |
| 6,000+ | ₹18.07 | ₹1,08,420.00 |
5 × ₹37.31
₹186.55
excl. GST
₹220.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP8641GB235.TR
₹186.55 for 5 + GST
Specifications
- Output Current
- 23mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 400uV
- Slew Rate
- 4.2V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 92dB
- Input Offset Voltage Drift(Vos TC)
- 2.5uV/℃
- Gain Bandwidth Product
- 15kHz
- Quiescent Current
- 700nA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 210nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.4V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.155 g
Overview
The AiP864x series are micro-power rail-to-rail input/output operational amplifiers, comprising the AiP8641, AiP8642, and AiP8644 (single, dual, and quad-channel versions without enable control pin) and the AiP8643 (single-channel version with enable control pin). The series operates at supply voltages as low as 1.4V, with a quiescent current of only 670nA per amplifier. With a gain-bandwidth product of 15kHz and unity-gain stability, these devices are well-suited for low-frequency applications such as battery current sensing and sensor conditioning.
Key features
- Open-loop voltage gain: 92dB
- Gain bandwidth product: 15kHz
- Slew rate: 4.2 V/ms
- Offset voltage: ≤2.5 mV
- Noise: 210 nV/√Hz
- Output short-circuit current: >21mA
- Input bias current: 1 pA
- Input common-mode range: (V-) 0.1V ~ (V+) + 0.1V
- Quiescent current/amplifier: 670 nA
- Supply voltage range: 1.4V ~ 5.5V
- Temperature range: -40℃ ~ 125℃
