Wuxi I-core ElecDatasheet (PDF)

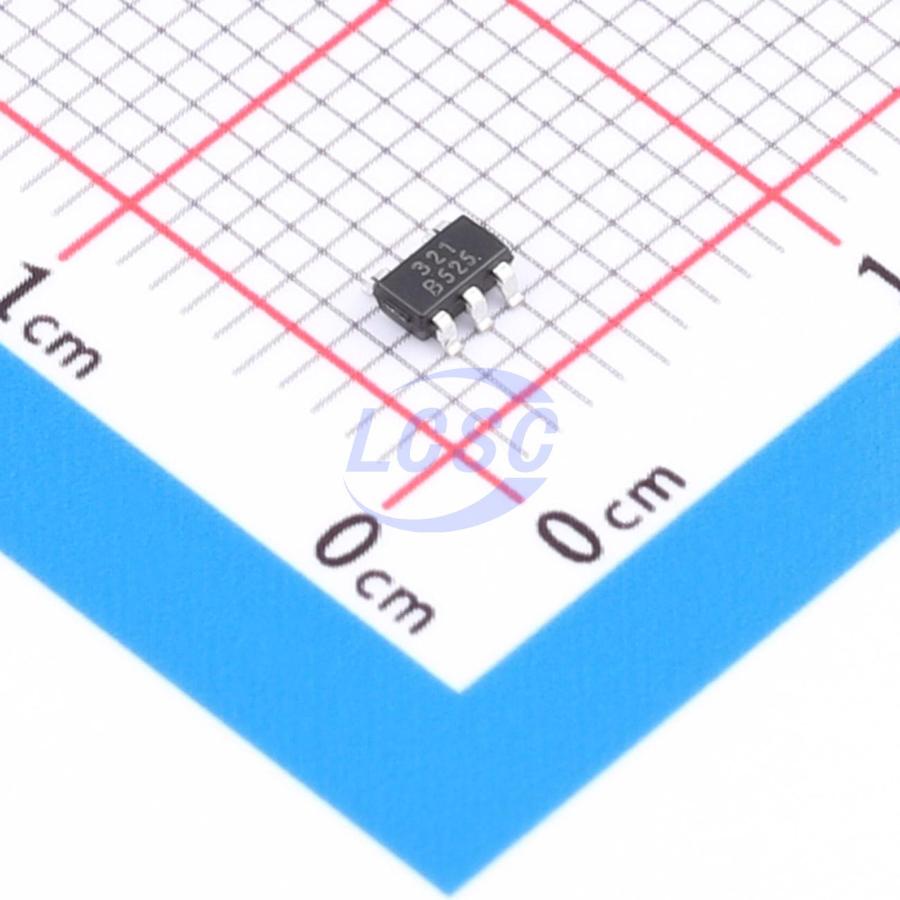

AiP321GB235.TR
30mA 1 3mV 300V/ms 100dB 20nA 700kHz 700uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP321GB235.TR
- Store part #
- C52722512
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,210 in stock
#C52722512
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.66 | ₹63.30 |
| 50+ | ₹10.05 | ₹502.50 |
| 150+ | ₹8.76 | ₹1,314.00 |
| 500+ | ₹7.78 | ₹3,890.00 |
| 3,000+ | ₹7.00 | ₹21,000.00 |
| 6,000+ | ₹6.62 | ₹39,720.00 |
5 × ₹12.66
₹63.30
excl. GST
₹74.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP321GB235.TR
₹63.30 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 300V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 20nA
- Gain Bandwidth Product
- 700kHz
- Quiescent Current
- 700uA
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -18V~-1.5V;1.5V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.402 g
Overview
AiP221/AiP321 is a single-channel, high-gain, internally frequency-compensated op-amp. It is designed for single-supply applications over a wide supply voltage range and also supports dual-supply operation. Under recommended operating conditions, the supply current is independent of supply voltage. The device features a wide operating voltage range (single supply: 3 V ~ 36 V; dual supply: ±1.5 V ~ ±18 V), low supply current (typical 0.7 mA), wide unity-gain bandwidth (typical 0.7 MHz), and built-in frequency compensation. Input characteristics include low input offset voltage (typical 3 mV), low input offset current (typical 2 nA), and low input bias current (typical 20 nA). The differential input voltage range equals the maximum rated supply voltage (±36 V), with a typical open-loop differential voltage gain of 100 dB. Available in SOT23-5 package.
Applications
- Sense amplifier
- Audio amplifier
- Industrial control
- DC gain stage
Key features
- Wide supply voltage range: single supply 3 V ~ 36 V, dual supply ±1.5 V ~ ±18 V
- Low supply current, independent of supply voltage: typical 0.7 mA
- Wide unity-gain bandwidth: typical 0.7 MHz
- Internal frequency compensation
- Low input bias and offset parameters: input offset voltage typical 3 mV, input offset current typical 2 nA, input bias current typical 20 nA
- Differential input voltage range equal to maximum rated supply voltage: ±36 V
- Open-loop differential voltage gain: typical 100 dB
- Package: SOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP8711GB235.TR#C54899981Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 200 | ₹37.85 · 200 in stock | View |
 | AiP321LVGB235.TR#C50338826Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 2,715 | ₹15.70 · 2,715 in stock | View |
 | AiP8731GB235.TR#C54899983Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 2,910 | ₹40.40 · 2,910 in stock | View |
| AiP8721GB235.TR#C52722726Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | On request | ₹37.28 · 0 in stock | View | |
