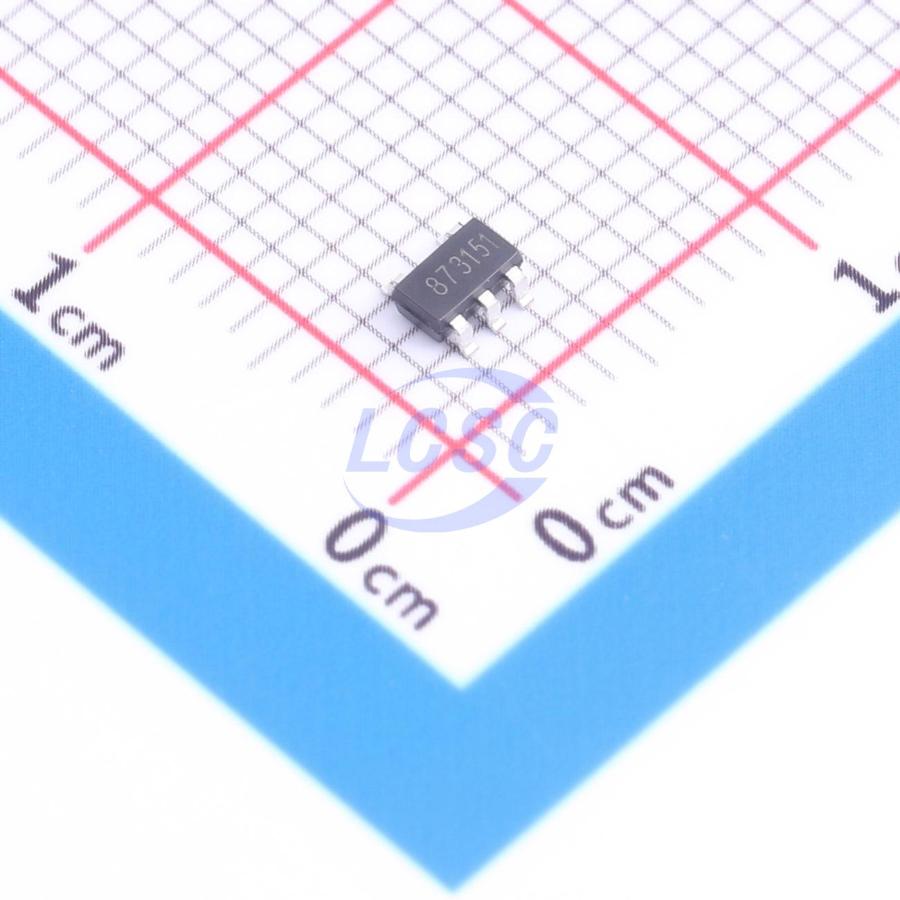

AiP8731GB235.TR
0.3pA 3.2mA 20MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Audio Amplifiers
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP8731GB235.TR
- Store part #
- C54899983
- Package / case
- SOT-23-5
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,935 in stock
#C54899983
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.40 | ₹202.00 |
| 50+ | ₹31.91 | ₹1,595.50 |
| 150+ | ₹28.29 | ₹4,243.50 |
| 500+ | ₹23.75 | ₹11,875.00 |
| 3,000+ | ₹21.72 | ₹65,160.00 |
| 6,000+ | ₹20.52 | ₹1,23,120.00 |
5 × ₹40.40
₹202.00
excl. GST
₹238.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP8731GB235.TR
₹202.00 for 5 + GST
Specifications
- number of channels
- 1
- Ib - Input Bias Current
- 0.3pA
- Operating Temperature
- -40℃~+125℃
- Input Offset Current(Ios)
- 0.3pA
- Vos - Input Offset Voltage
- 1mV
- Output Current
- 100mA
- Common Mode Rejection Ratio (CMRR)
- 75dB
- Quiescent Current
- 3.2mA
- Gain Bandwidth Product
- 20MHz
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Single Supply
- 2.2V~5.5V
- Slew Rate
- 12V/us
- Noise density(eN)
- 7.3nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
