DIODESDatasheet (PDF)

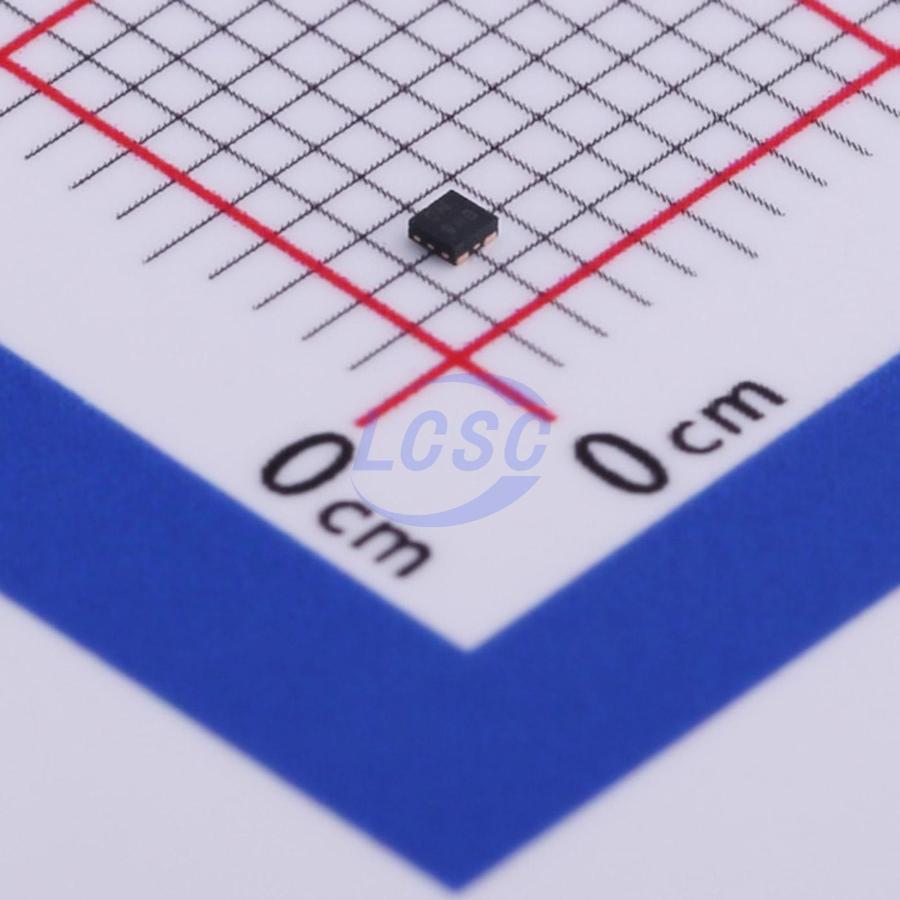

AP7340D-33FS4-7
3.3V Positive Fixed X2-DFN1010-4-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
X2-DFN1010-4-EPROHS3 CompliantActive
150mA HIGH PSRR LOW NOISE LDO WITH ENABLE
- Manufacturer
- DIODES
- Manufacturer part #
- AP7340D-33FS4-7
- Store part #
- C507883
- Package / case
- X2-DFN1010-4-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C507883
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹25.45 | ₹25.45 |
| 10+ | ₹24.95 | ₹249.50 |
| 30+ | ₹24.61 | ₹738.30 |
| 100+ | ₹24.26 | ₹2,426.00 |
1 × ₹25.45
₹25.45
excl. GST
₹30.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AP7340D-33FS4-7
₹25.45 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 100uA
- Output Configuration
- Positive
- Operating Voltage
- 5.25V
- Output Current
- 150mA
- Features
- Enable control;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.01 g
Overview
The AP7340 is a low dropout regulator with high output voltage accuracy, low RDSON, high PSRR, low output noise and low quiescent current. This regulator is based on a CMOS process. The AP7340 includes a voltage reference, error amplifier, current limit circuit and an enable input to turn it on and off. With the integrated resistor network, fixed output voltage versions can be delivered. With its low power consumption and line and load transient response, the AP7340 is well suited for low power handheld communication equipment. The AP7340 is packaged in an X2-DFN1010-4 package and allows for smallest footprint and dense PCB layout.
Applications
- Smart Phone/PAD
- RF Supply
- Cameras
- Portable Video
- Portable Media Player
- Wireless Adapter
- Wireless Communication
Key features
- Low VIN and wide VIN Range: 1.7V to 5.25V
- Guarantee Output Current, 150mA
- VOUT accuracy ±1%
- Ripple Rejection 75dB at 1kHz
- Low Output Noise, 60uVrms from 10Hz to 100kHz
- Quiescent Current as low as 35uA
- VOUT fixed 1.1V to 3.3V
- Totally Lead-Free & and Fully RoHS Compliant, Halogen and Antimony Free, Green Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP7340-33FS4-7#C5244411DIODES · X2-DFN1010-4 | DIODES | X2-DFN1010-4 | 175 | ₹29.24 · 175 in stock | View |
 | AP7315D-33FS4-7B#C5553105DIODES · X2-DFN1010-4 | DIODES | X2-DFN1010-4 | 45 | ₹12.73 · 45 in stock | View |
 | AP7343D-33FS4-7B#C260892DIODES · X2-DFN1010-4-EP | DIODES | X2-DFN1010-4-EP | 9,650 | ₹11.79 · 9,650 in stock | View |
 | NCP103BMX330TCG#C891993onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 1,000 | ₹35.11 · 1,000 in stock | View |
| XC6233H3319R-G#C3749531TOREX · USPQ-4B04 | TOREX | USPQ-4B04 | 189 | ₹27.52 · 189 in stock | View | |
