DIODESDatasheet (PDF)

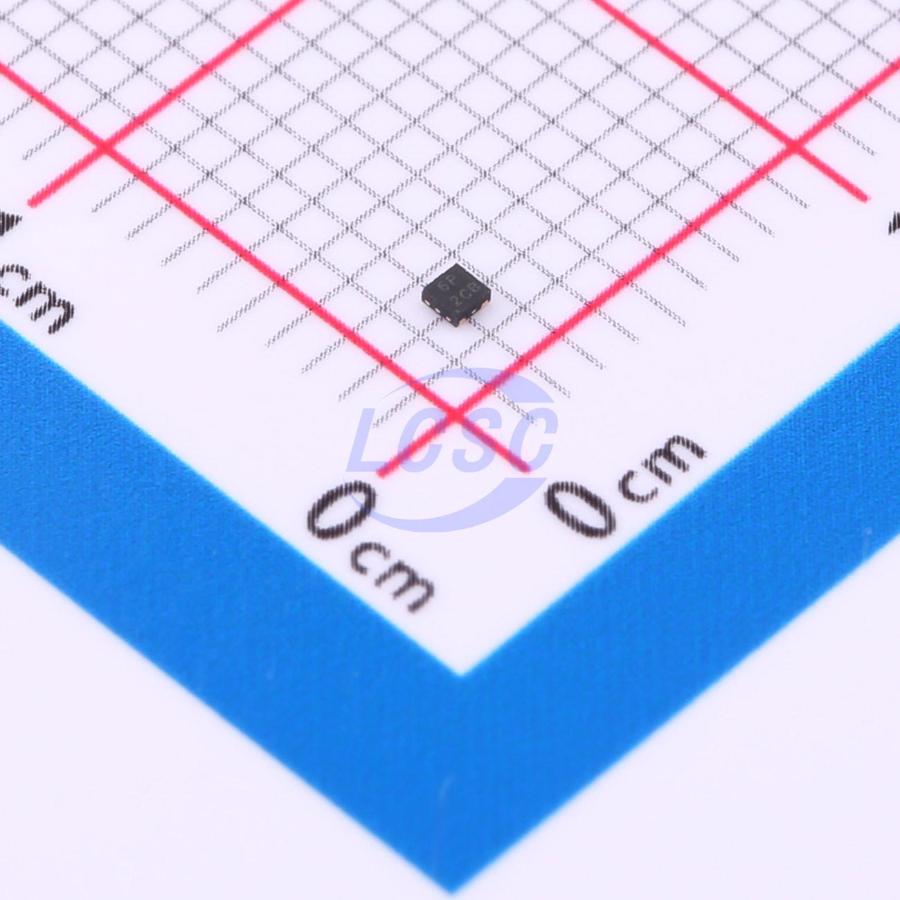

AP7343D-30FS4-7B
3V Positive Fixed X2-DFN1010-4-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
X2-DFN1010-4-EPROHS3 CompliantActive
300mA HIGH PSRR LOW-NOISE LDO WITH ENABLE
- Manufacturer
- DIODES
- Manufacturer part #
- AP7343D-30FS4-7B
- Store part #
- C6125644
- Package / case
- X2-DFN1010-4-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,020 in stock
#C6125644
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.24 | ₹82.40 |
| 100+ | ₹6.43 | ₹643.00 |
| 300+ | ₹5.52 | ₹1,656.00 |
| 1,000+ | ₹4.84 | ₹4,840.00 |
| 5,000+ | ₹4.30 | ₹21,500.00 |
| 10,000+ | ₹4.02 | ₹40,200.00 |
10 × ₹8.24
₹82.40
excl. GST
₹97.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
AP7343D-30FS4-7B
₹82.40 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 35uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 5.25V
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Output discharge;Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.02 g
Overview
The AP7343 is a low dropout regulator with high output voltage accuracy, low RDS(ON), high PSRR, low output noise, and low quiescent current. This regulator is based on a CMOS process. The AP7343 includes a voltage reference, error amplifier, current limit circuit, and an enable input to turn it on and off. With the integrated resistor network fixed output voltage versions can be delivered. With its low power consumption and line and load transient response, the AP7343 is well suited for low- power handheld communication equipment. The AP7343 is packaged in the X2- DFN1010- 4 (Type B) and SOT25 packages, allowing for the smallest footprint and a dense PCB layout.
Applications
- Smart phones/tablets
- RF supplies
- Cameras
- Portable videos
- Portable media players
- Wireless adapters
- Wireless communications
Key features
- Low VIN and Wide VIN Range: 1.7V to 5.25V
- Guarantee Output Current: 300mA
- VOUT Accuracy ±1%
- Ripple Rejection 75dB at 1kHz
- Low Output Noise, 60uVrms from 10Hz to 100kHz
- Quiescent Current as Low as 35 μA
- VOUT Fixed 0.9V to 3.6V
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SK6013AD4-30#C2682740Suntek · XDFN-4-EP(1x1) | Suntek | XDFN-4-EP(1x1) | 3,685 | ₹12.56 · 3,685 in stock | View |
 | AP7341-30FS4-7#C5244426DIODES · X2-DFN1010-4 | DIODES | X2-DFN1010-4 | 80 | ₹20.51 · 80 in stock | View |
 | SGM2036-3.0YUDH4G/TR#C503224SGMICRO · UTDFN-1x1-4L | SGMICRO | UTDFN-1x1-4L | 6,545 | ₹34.32 · 6,545 in stock | View |
 | SK6013SD4-30#C47325474Suntek · DFN-4-EP(1x1) | Suntek | DFN-4-EP(1x1) | 1,875 | ₹13.32 · 1,875 in stock | View |
 | RP114K301D-TRB#C194610Nisshinbo Micro Devices Inc. · DFN-4-EP(1x1) | Nisshinbo Micro Devices Inc. | DFN-4-EP(1x1) | 10,000 | ₹15.49 · 10,000 in stock | View |
