SuntekDatasheet (PDF)

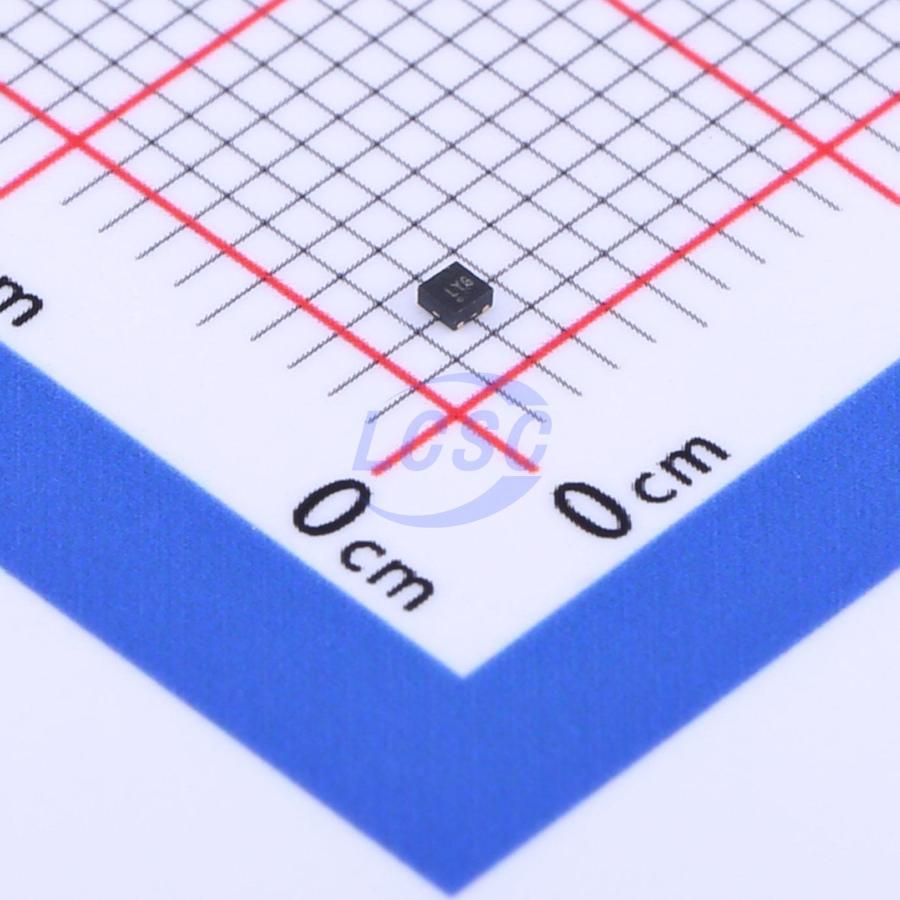

SK6013AD4-30
3V Positive Fixed XDFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
XDFN-4-EP(1x1)RoHSActive
Low Noise, High PSRR, High Speed, CMOS LDO
- Manufacturer
- Suntek
- Manufacturer part #
- SK6013AD4-30
- Store part #
- C2682740
- Package / case
- XDFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,685 in stock
#C2682740
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.56 | ₹62.80 |
| 50+ | ₹9.98 | ₹499.00 |
| 150+ | ₹8.68 | ₹1,302.00 |
| 500+ | ₹7.71 | ₹3,855.00 |
| 2,500+ | ₹6.95 | ₹17,375.00 |
| 5,000+ | ₹6.56 | ₹32,800.00 |
5 × ₹12.56
₹62.80
excl. GST
₹74.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SK6013AD4-30
₹62.80 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 35uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.018 g
Overview
The SK6013 is a high accuracy, low noise, high speed, low dropout CMOS Linear regulator with high ripple rejection and fast discharge function. The device offers a new level of cost effective 63 devices. SK6013 can provide product selections of output value in the range of 1.0V~3.6V by every 0.1V step. The current limiter's fold-back circuit also operates as a short circuit protection and an output current limiter at the output pin. The SK6013 regulators are available in standard SOT23-5L and DFN1x1-4L packages. Standard products are Pb-free and Halogen-free.
Applications
- Digital cameras
- Cellphones
- Bluetooth and wireless handsets
- Other portable electronic devices
Key features
- Input voltage: 2.5V~6.5V
- Output range: 1.0V~3.6V (customized by every 0.1V step)
- Maximum output current: 400mA@ VIN - VOUT = 0.5V
- PSRR: 75dB @1KHz
- Dropout voltage: 220mV @IOUT = 200mA
- Quiescent current: 35μA Typ.
- Shut-down current: <1μA
- Recommend capacitor: 1μF
- Ultra-low output noise: 20μVRMS
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SK6013SD4-30#C47325474Suntek · DFN-4-EP(1x1) | Suntek | DFN-4-EP(1x1) | 1,875 | ₹13.32 · 1,875 in stock | View |
 | SK6018D4-30#C2986175Suntek · DFN1x1-4L | Suntek | DFN1x1-4L | 8,065 | ₹9.86 · 8,065 in stock | View |
 | SK6513SD4-30#C52034515Suntek · DFN-4L(1x1) | Suntek | DFN-4L(1x1) | 150 | ₹22.93 · 150 in stock | View |
 | SUL6018D4-30#C41365254Suntek · DFN-4L(1x1) | Suntek | DFN-4L(1x1) | 1,430 | ₹44.24 · 1,430 in stock | View |
 | SK6019AD4-30#C2682761Suntek · DFN1x1-4L | Suntek | DFN1x1-4L | On request | Price on request | Quote |
