SuntekDatasheet (PDF)

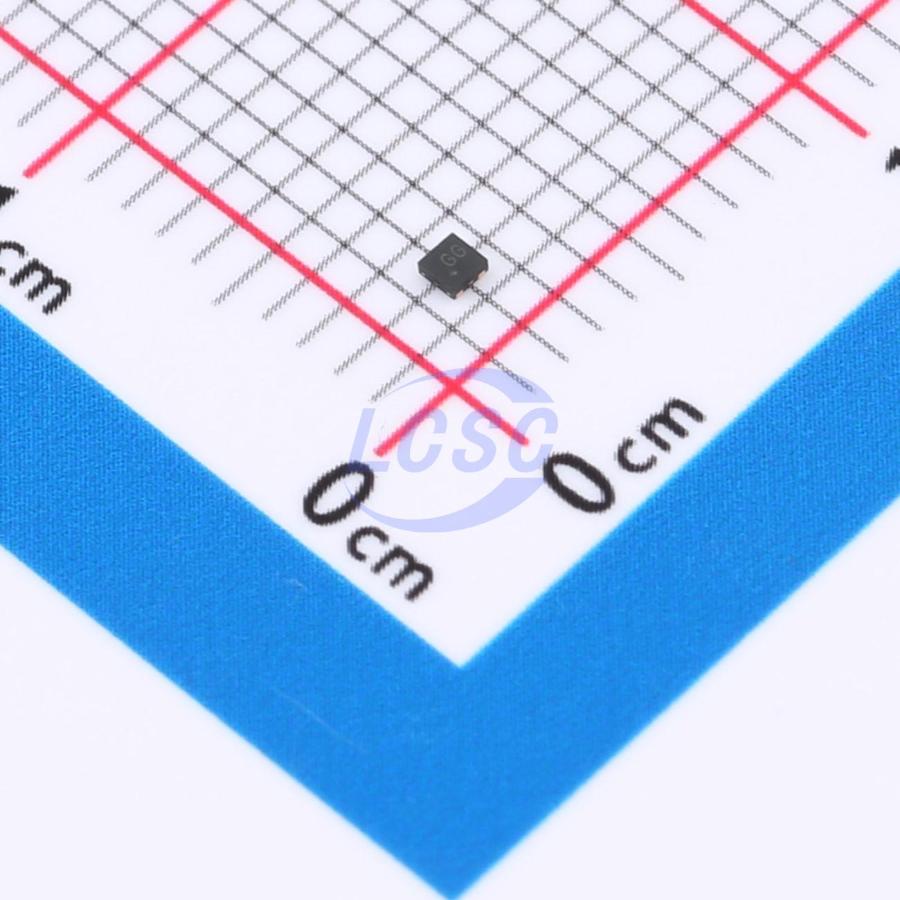

SK6013SD4-30
3V Positive Fixed DFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN-4-EP(1x1)RoHSActive
- Manufacturer
- Suntek
- Manufacturer part #
- SK6013SD4-30
- Store part #
- C47325474
- Package / case
- DFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,875 in stock
#C47325474
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.32 | ₹66.60 |
| 50+ | ₹10.53 | ₹526.50 |
| 150+ | ₹9.14 | ₹1,371.00 |
| 500+ | ₹8.10 | ₹4,050.00 |
| 2,500+ | ₹7.25 | ₹18,125.00 |
| 5,000+ | ₹6.84 | ₹34,200.00 |
5 × ₹13.32
₹66.60
excl. GST
₹78.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SK6013SD4-30
₹66.60 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.015 g
Overview
SK6013S is a low-dropout, low-power linear regulator that delivers an exceptionally high power supply rejection ratio while maintaining an ultra-low 40μA ground current, making it ideal for RF applications and portable devices such as wireless handsets and PDAs. The device employs advanced CMOS process technology and a PMOSFET pass element to achieve fast startup, ultra-low noise, and excellent transient response. The SK6013S remains stable with a 1μF ceramic output capacitor, and incorporates a precision voltage reference with a feedback loop for high accuracy. The device is available in DFN1×1-4, SOT23-5, and SC70-5 packages.
Applications
- Smart Phones and Cellular Phones
- PDAs
- MP3/MP4 Player
- Digital Still Cameras
- Portable instruments
Key features
- Wide input voltage range: 2.0V to 6.0V
- Maximum load current: 300mA
- Standard fixed output voltage options: 1.05V ~ 3.45V
- Ultra-low dropout: 250mV @ IOUT=300mA
- High PSRR: 75dB @1KHz
- Low noise: 45µVRMS
- Low quiescent current: 40uA
- Ultra-fast startup time: 25µs
- Excellent load/line transient response
- Line regulation: 0.03% (typical)
- Auto-discharge function
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SK6013AD4-30#C2682740Suntek · XDFN-4-EP(1x1) | Suntek | XDFN-4-EP(1x1) | 3,685 | ₹12.56 · 3,685 in stock | View |
 | SK6018D4-30#C2986175Suntek · DFN1x1-4L | Suntek | DFN1x1-4L | 8,065 | ₹9.86 · 8,065 in stock | View |
 | SK6513SD4-30#C52034515Suntek · DFN-4L(1x1) | Suntek | DFN-4L(1x1) | 150 | ₹22.93 · 150 in stock | View |
 | SUL6018D4-30#C41365254Suntek · DFN-4L(1x1) | Suntek | DFN-4L(1x1) | 1,430 | ₹44.24 · 1,430 in stock | View |
 | SK6019AD4-30#C2682761Suntek · DFN1x1-4L | Suntek | DFN1x1-4L | On request | Price on request | Quote |
