DIODES

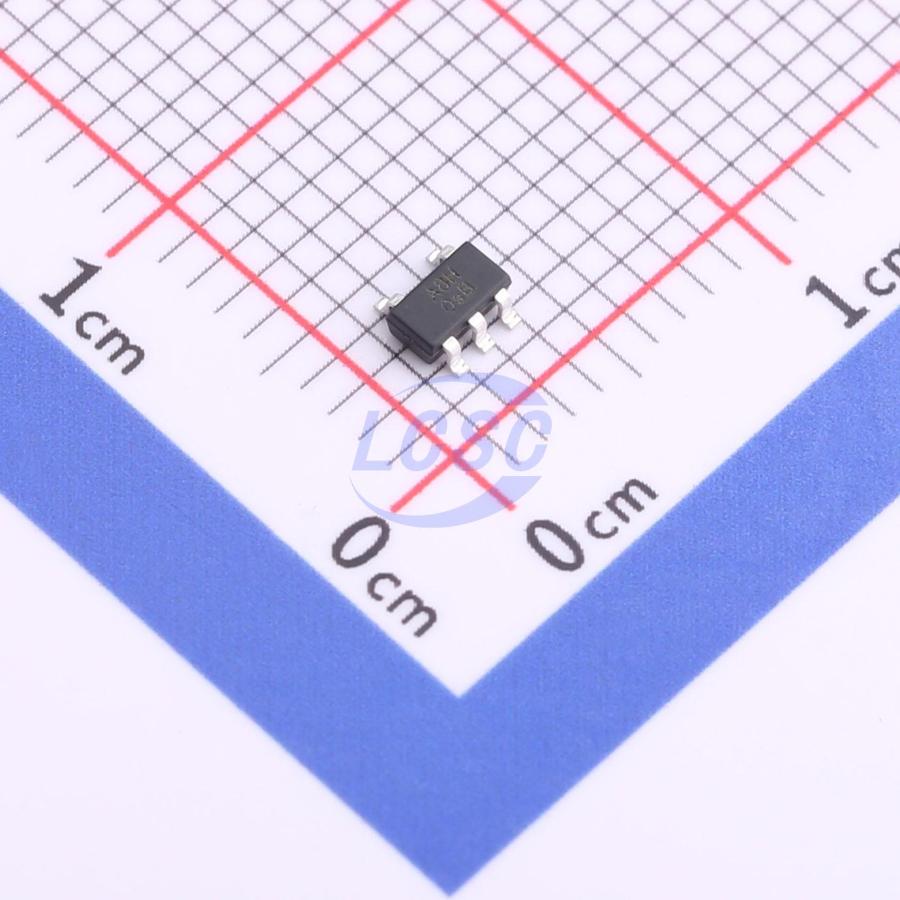

AP7354-33W5-7

3.3V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-25ROHS3 CompliantActive

150mA ULTRA-LOW QUIESCENT CURRENT LDO WITH ENABLE

Manufacturer: DIODES
Manufacturer part #: AP7354-33W5-7
Store part #: C460386
Package / case: SOT-25
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,105 in stock

#C460386

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹38.94	₹194.70
50+	₹30.35	₹1,517.50
150+	₹26.67	₹4,000.50
500+	₹22.07	₹11,035.00
3,000+	₹20.03	₹60,090.00
6,000+	₹18.80	₹1,12,800.00

Quantity (min 5, multiples of 5)

5 × ₹38.94

₹194.70

excl. GST

₹229.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP7354-33W5-7

₹194.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 250nA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 150mA
Features: Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.2 g

Overview

The AP7354 is a low dropout regulator with high output voltage accuracy. The AP7354 includes a voltage reference, error amplifier, current limit circuit, and an enable input to turn it on/off. With the integrated resistor network, fixed output voltage versions can be delivered. With its ultra-low quiescent current, the AP7354 is well-suited for low-power handheld, wearable devices, and other battery-operated devices requiring an extended time period until new battery replacement. The AP7354 is available in SOT23, SOT25, and X2-DFN1010-4 (Type B) packages.

Applications

Wearable Electronics
Sensor Module for Internet-of-Things (IoT)
Wireless Communication Module
Battery-Operated Device Camera Image Sensor

Key features

Wide VIN Range: 2.0V to 5.5V
Guarantee Output Current: 150mA
Output Voltage Range: 1.1V to 4.5V
VOUT Accuracy: ±1%
Quiescent Current as Low as 0.25μA
Output Discharge Available for Devices in SOT25 or X2-DFN1010-4 (Type B) Typical Standby Current: 0.02μA
ESD Protection Exceeds JESD 22: Exceeds 4000V Human Body Model (A114), Exceeds 400V Machine Model (A115)
Latch-Up Exceeds 400mA per JESD 78, Class I
Moisture Sensitivity: Level 1 per J-STD-020
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
AP7354D-33W5-7#C5179970DIODES · SOT-25	DIODES	SOT-25	1,660	₹29.04 · 1,660 in stock	View
TPL720F33-5TR#C28423903PEAK · SOT-23-5	3PEAK	SOT-23-5	37,730	₹14.70 · 37,730 in stock	View
MIC5205IDBV-3.3RG#C42396713HANSCHIP semiconductor · SOT-23-5	HANSCHIP semiconductor	SOT-23-5	4,220	₹9.88 · 4,220 in stock	View
SPX5205M5-L-3-3/TR#C6864MaxLinear · SOT-23-5	MaxLinear	SOT-23-5	79,145	₹36.69 · 79,145 in stock	View
MST5433BTG#C2761428MST · SOT-23-5	MST	SOT-23-5	290	₹14.59 · 290 in stock	View
