DIODESDatasheet (PDF)

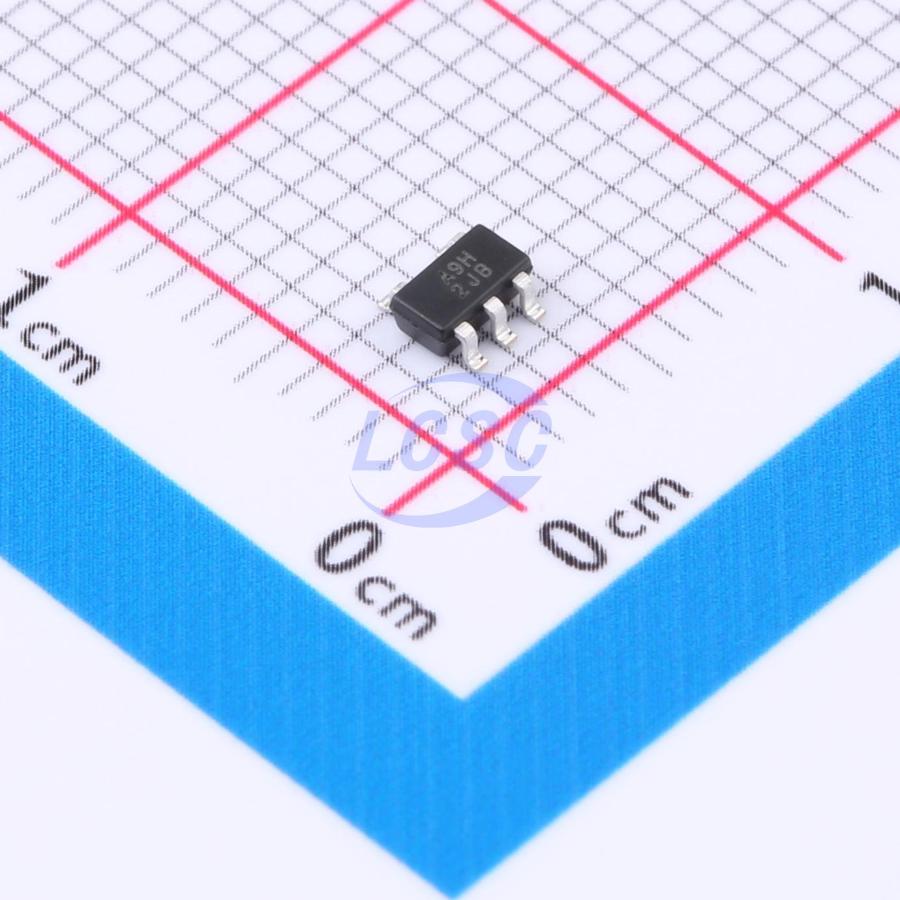

AP7354D-33W5-7
3.3V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-25ROHS3 CompliantActive
150mA ULTRA-LOW QUIESCENT CURRENT LDO WITH ENABLE
- Manufacturer
- DIODES
- Manufacturer part #
- AP7354D-33W5-7
- Store part #
- C5179970
- Package / case
- SOT-25
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,660 in stock
#C5179970
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.62 | ₹143.10 |
| 50+ | ₹25.15 | ₹1,257.50 |
| 150+ | ₹23.67 | ₹3,550.50 |
| 500+ | ₹21.82 | ₹10,910.00 |
| 3,000+ | ₹21.00 | ₹63,000.00 |
| 6,000+ | ₹20.51 | ₹1,23,060.00 |
5 × ₹28.62
₹143.10
excl. GST
₹168.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP7354D-33W5-7
₹143.10 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 600nA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The AP7354 is a low dropout regulator with high output voltage accuracy. The AP7354 includes a voltage reference, error amplifier, current limit circuit, and an enable input to turn it on/off. With the integrated resistor network, fixed output voltage versions can be delivered. With its ultra-low quiescent current, the AP7354 is well-suited for low-power handheld, wearable devices, and other battery-operated devices requiring an extended time period until new battery replacement. The AP7354 is available in SOT23, SOT25, and X2-DFN1010-4 (Type B) packages.
Applications
- Wearable Electronics
- Sensor Module for Internet-of-Things (IoT)
- Wireless Communication Module
- Battery-Operated Device Camera Image Sensor
Key features
- Wide VIN Range: 2.0V to 5.5V
- Guarantee Output Current: 150mA
- Output Voltage Range: 1.1V to 4.5V
- VOUT Accuracy: ±1%
- Quiescent Current as Low as 0.25μA
- Output Discharge Available for Devices in SOT25 or X2-DFN1010-4 (Type B) Typical Standby Current: 0.02μA
- ESD Protection Exceeds JESD 22: Exceeds 4000V Human Body Model (A114), Exceeds 400V Machine Model (A115)
- Latch-Up Exceeds 400mA per JESD 78, Class I
- Moisture Sensitivity: Level 1 per J-STD-020
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP7354-33W5-7#C460386DIODES · SOT-25 | DIODES | SOT-25 | 1,810 | ₹38.94 · 1,810 in stock | View |
 | TPL720F33-5TR#C28423903PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 37,730 | ₹14.70 · 37,730 in stock | View |
 | MIC5205IDBV-3.3RG#C42396713HANSCHIP semiconductor · SOT-23-5 | HANSCHIP semiconductor | SOT-23-5 | 4,220 | ₹9.88 · 4,220 in stock | View |
 | SPX5205M5-L-3-3/TR#C6864MaxLinear · SOT-23-5 | MaxLinear | SOT-23-5 | 81,650 | ₹36.69 · 81,650 in stock | View |
| ME6226C33M5G#C52941702MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 1,140 | ₹12.04 · 1,140 in stock | View | |
