DIODESDatasheet (PDF)

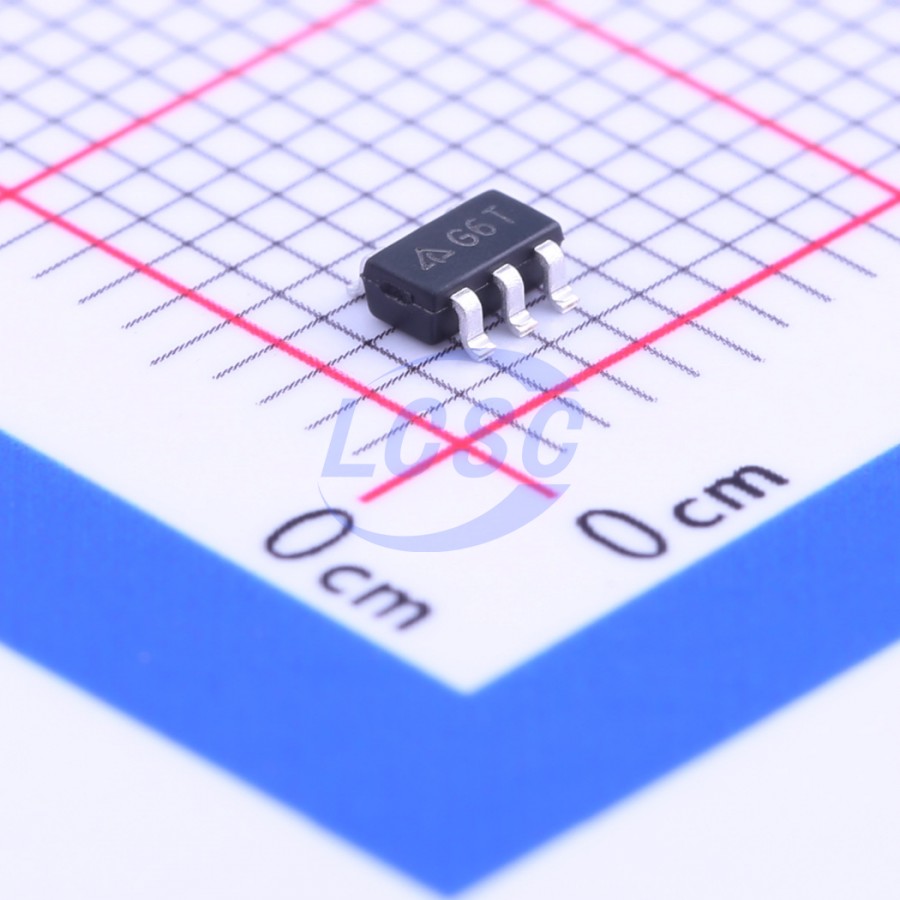

AS321KTR-G1
40mA 1 2mV 70dB 20nA 350uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
LOW POWER SINGLE OPERATIONAL AMPLIFIER
- Manufacturer
- DIODES
- Manufacturer part #
- AS321KTR-G1
- Store part #
- C144156
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,47,765 in stock
#C144156
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.62 | ₹63.10 |
| 50+ | ₹10.12 | ₹506.00 |
| 150+ | ₹8.88 | ₹1,332.00 |
| 500+ | ₹7.94 | ₹3,970.00 |
| 3,000+ | ₹6.36 | ₹19,080.00 |
| 6,000+ | ₹5.98 | ₹35,880.00 |
5 × ₹12.62
₹63.10
excl. GST
₹74.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AS321KTR-G1
₹63.10 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2mV
- Input Offset Current(Ios)
- 30nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 20nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 350uA
- Features
- Built-in compensation
- Dual Supply
- -18V~-1.5V;1.5V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.055 g
Overview
The AS321 is a high gain and internally frequency compensated operational amplifier specifically designed to operate from a single power supply. Operation from split power supply is also possible and the low power supply current drain is independent of the magnitude of the power supply voltages. Typical applications include battery charger, active filters, general purpose controllers and most conventional operational amplifier circuits. The AS321 is compatible with industry standard 321. The AS321 is available in SOT25 package.
Applications
- Battery Charger
- Active Filters
- General Purpose Controllers, Instruments
- Power Amplifier
- DC Summing Amplifier
- AC Coupled Non-Inverting Amplifier
- Fixed Current Sources
- Pulse Generator
- DC Coupled Low-Pass Active Filter
Key features
- Excellent Phase Margin: 60 deg.
- Large Voltage Gain: 100dB (Typical)
- Low Input Bias Current: 20nA (Typical)
- Low Input Offset Voltage: 2mV (Typical)
- Low Supply Current: 0.35mA at VCC = 5V
- Wide Power Supply Voltage:
- Single Supply: 3V to 36V
- Dual Supplies: ±1.5V to ±18V
- Wide Input Common Mode Voltage Range: 0V to VCC - 1.5V
- Lead-Free Packages: SOT25
- Totally Lead-Free; RoHS Compliant
- Lead-Free Packages, Available in “Green” Molding Compound: SOT25
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
