DIODES

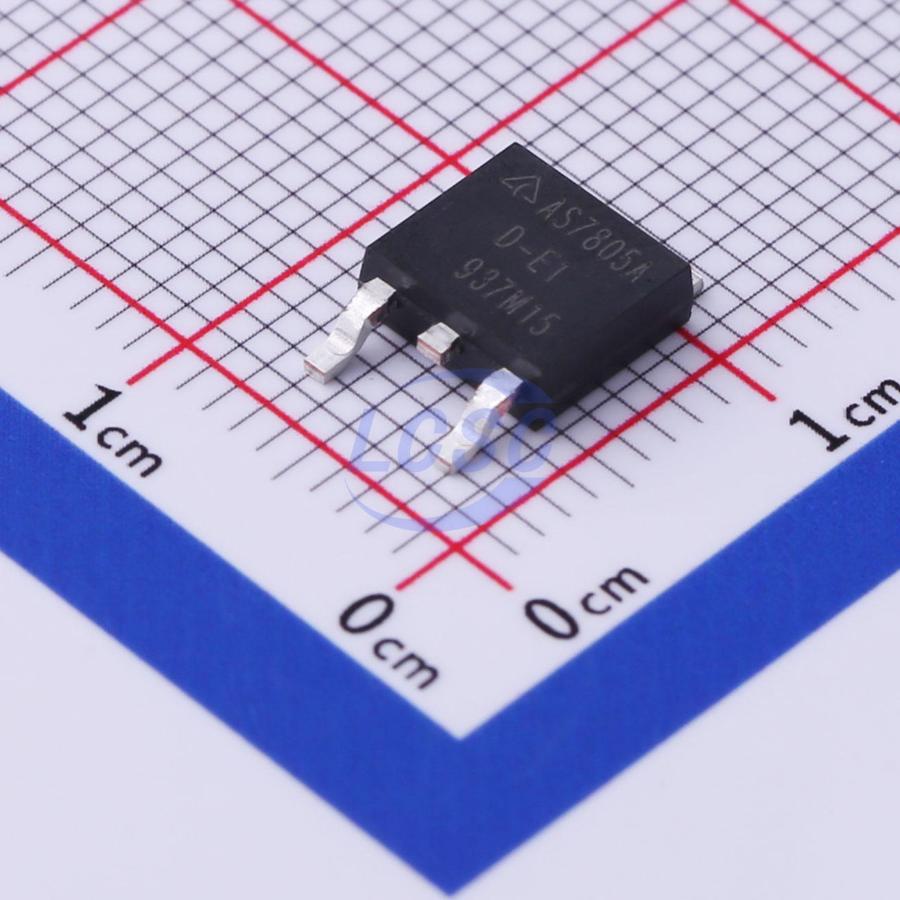

AS7805ADTR-E1

5V Positive Fixed TO-252-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TO-252-2ROHS CompliantActive

1A 3-TERMINAL POSITIVE VOLTAGE REGULATOR

Manufacturer: DIODES
Manufacturer part #: AS7805ADTR-E1
Store part #: C127926
Package / case: TO-252-2
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,549 in stock

#C127926

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹47.42	₹47.42
10+	₹36.96	₹369.60
30+	₹32.45	₹973.50
100+	₹26.86	₹2,686.00
500+	₹24.34	₹12,170.00
1,000+	₹22.90	₹22,900.00

Quantity (min 1)

1 × ₹47.42

₹47.42

excl. GST

₹55.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AS7805ADTR-E1

₹47.42 for 1 + GST

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 3.2mA
Output Configuration: Positive
Output Current: 1A
Operating Voltage: 25V
Features: Short Circuit Protection;Thermal shutdown;Over Current Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.555 g

Overview

The AS78XXA series are three- terminal positive voltage regulators designed for a wide variety of applications including local, on- card regulation. The AS78XXA are complete with internal current limiting, thermal shutdown protection, and safe- area compensation which make them virtually immune from output overload. If adequate heat sinking is provided, these regulators can deliver output currents of up to 1A. The AS78XXA are available in TO- 220- 3, TO- 220- 3 (2), TO- 252- 2 (5), TO252 (Type CJ) and TO- 263- 2 packages.

Applications

High- efficiency linear regulators
Post regulation for switching supplies
Microprocessor power supplies
Motherboards
Telecommunication

Key features

Output Current up to 1A
Fixed Output Voltages of 5V, 12V, 15V
Output Voltage Accuracy of ± 4% over the Full Temperature Range
Internal Short- Circuit Current Limiting
Internal Thermal Overload Protection
Output Transistor Safe- Area Protection
Low Load Regulation
Stable Performance in High Temperature
Lead- Free Packages: TO- 220- 3, TO- 220- 3 (2) - Totally Lead- Free; RoHS Compliant
Available in "Green" Packages: TO- 220- 3, TO- 220- 3 (2), and TO- 263- 2 - Lead- Free Finish; RoHS Compliant - Halogen and Antimony Free. "Green" Device
Lead- Free Packages, Available in "Green" Molding Compound: TO- 252- 2 (5), TO252 (Type CJ) - Totally Lead- Free & Fully RoHS Compliant - Halogen and Antimony Free. "Green" Device
