onsemiDatasheet (PDF)

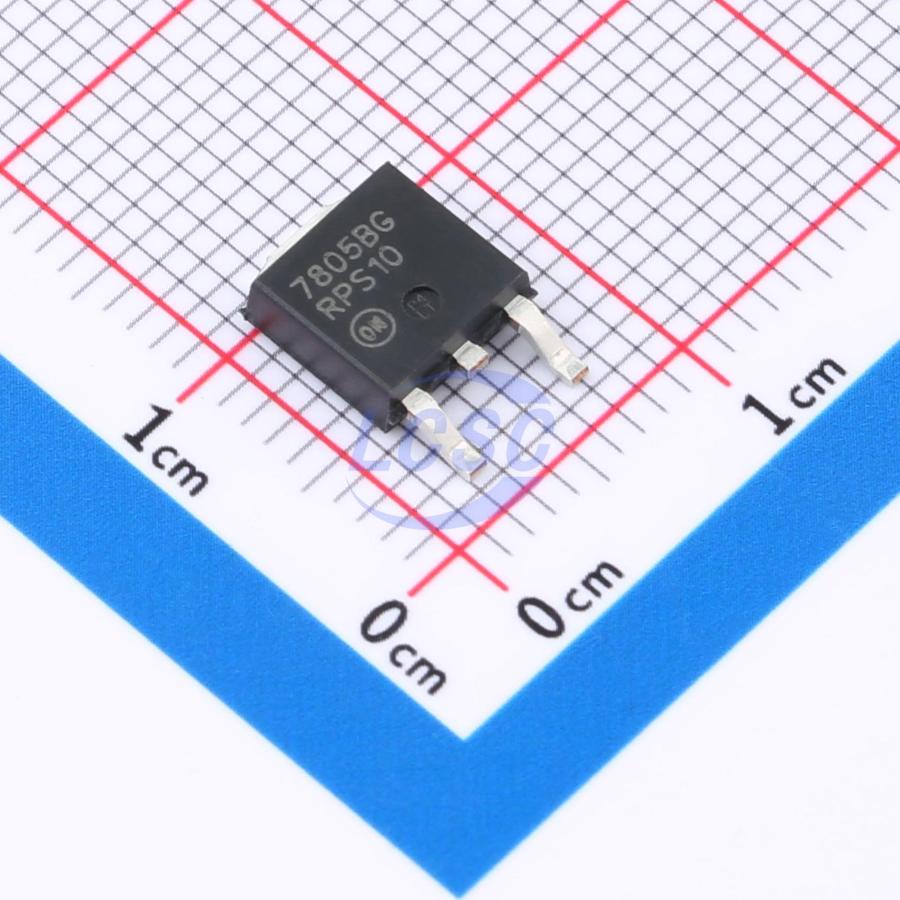

MC7805BDTRKG
5V Positive Fixed TO-252-2(DPAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2(DPAK)ROHS3 CompliantActive
1.0 A Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7805BDTRKG
- Store part #
- C110908
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46,295 in stock
#C110908
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.23 | ₹126.15 |
| 50+ | ₹19.86 | ₹993.00 |
| 150+ | ₹17.56 | ₹2,634.00 |
| 500+ | ₹13.63 | ₹6,815.00 |
| 2,500+ | ₹12.36 | ₹30,900.00 |
| 5,000+ | ₹11.59 | ₹57,950.00 |
5 × ₹25.23
₹126.15
excl. GST
₹148.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC7805BDTRKG
₹126.15 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.2mA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 1A
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection;Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.527 g
Overview
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 1.5%, 2% and 4% Tolerance
- Available in Surface Mount D²PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ7805B-TFN-ARG#C17703096JSCJ · TO-252-2L | JSCJ | TO-252-2L | 1,045 | ₹25.77 · 1,045 in stock | View |
 | AS7805ADTR-G1#C294595DIODES · TO-252-2 | DIODES | TO-252-2 | 55,540 | ₹42.43 · 55,540 in stock | View |
 | MC7805BDTG#C83632onsemi · DPAK | onsemi | DPAK | 6,935 | ₹40.59 · 6,935 in stock | View |
 | AS7805ADTR-E1#C127926DIODES · TO-252-2 | DIODES | TO-252-2 | 4,549 | ₹57.03 · 4,549 in stock | View |
 | CJ78D05#C89272JSCJ · TO-252-2L | JSCJ | TO-252-2L | 90,765 | ₹23.21 · 90,765 in stock | View |
