MICROCHIP

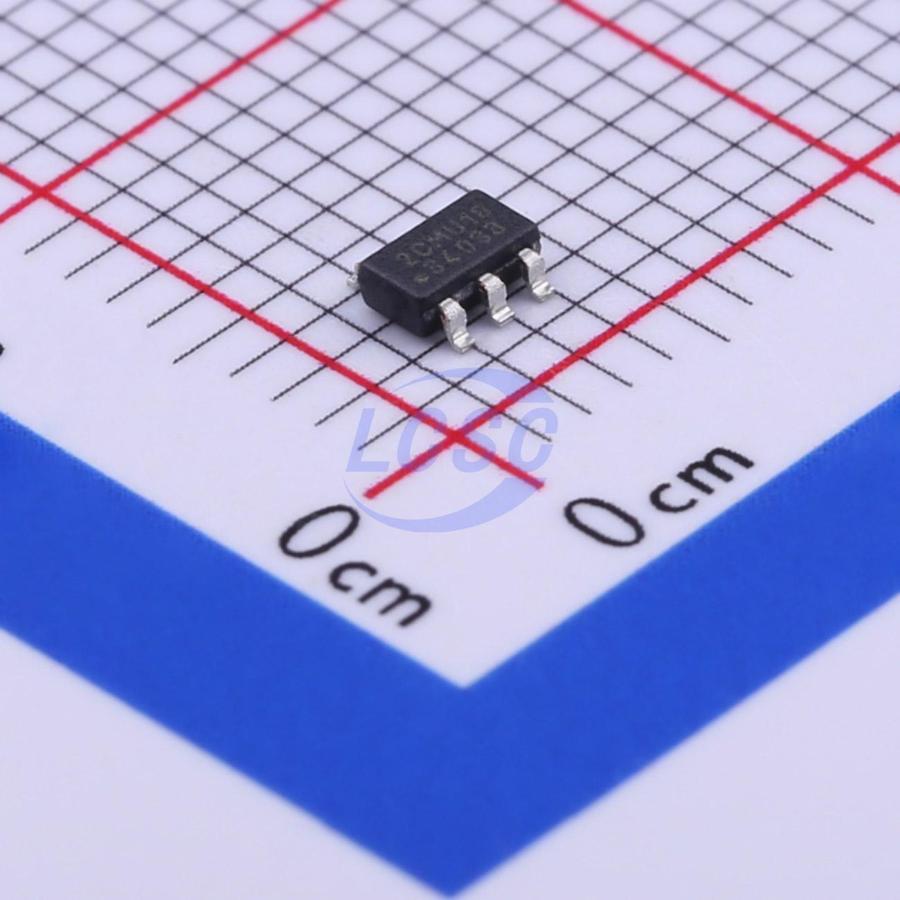

AT24C02C-STUM-T
2Kbit 1MHz I2C SOT-23-5 Memory RoHS
SOT-23-5ROHS3 CompliantActive
I²C-Compatible Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,729 in stock
#C94534
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.77 | ₹60.77 |
| 10+ | ₹48.22 | ₹482.20 |
| 30+ | ₹42.81 | ₹1,284.30 |
| 100+ | ₹36.12 | ₹3,612.00 |
| 500+ | ₹32.88 | ₹16,440.00 |
| 1,000+ | ₹31.14 | ₹31,140.00 |
1 × ₹60.77
₹60.77
excl. GST
₹71.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AT24C02C-STUM-T
₹60.77 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns;450ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
Key features
- Low-Voltage Operation: – VCC = 1.7V to 5.5V
- Internally Organized as 128×8 (1K) or 256×8 (2K)
- Industrial Temperature Range: -40°C to +85°C
- I²C-Compatible (Two-Wire) Serial Interface:
- 100 kHz Standard mode, 1.7V to 5.5V
- 400 kHz Fast mode, 1.7V to 5.5V
- 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
- Schmitt Triggers, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write-Protect Pin for Full Array Hardware Data Protection
- Ultra Low Active Current (3 mA maximum) and Standby Current (μA maximum)
- 8-Byte Page Write Mode: – Partial page writes allowed
- Random and Sequential Read Modes
- Self-Timed Write Cycle within 5 ms Maximum
- ESD Protection > 4,000V
- High Reliability:
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Green Package Options (Lead-free/Halide-free/RoHS compliant)
- Die Sale Options: Wafer Form and Bumped Wafers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24CS02-STUM-T#C2060969MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 2,765 | ₹121.69 · 2,765 in stock | View |
 | AT24MAC402-STUM-T#C2061068MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 147 | ₹194.48 · 147 in stock | View |
 | HG24C02M5/TR#C565360HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 3,140 | ₹8.20 · 3,140 in stock | View |
 | 24C02S(XBLW)#C18723540XBLW · SOT23-5 | XBLW | SOT23-5 | 1,68,360 | ₹3.97 · 1,68,360 in stock | View |
 | AT24C02S(TP)#C51939533TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,540 | ₹6.88 · 1,540 in stock | View |
