ROHMDatasheet (PDF)

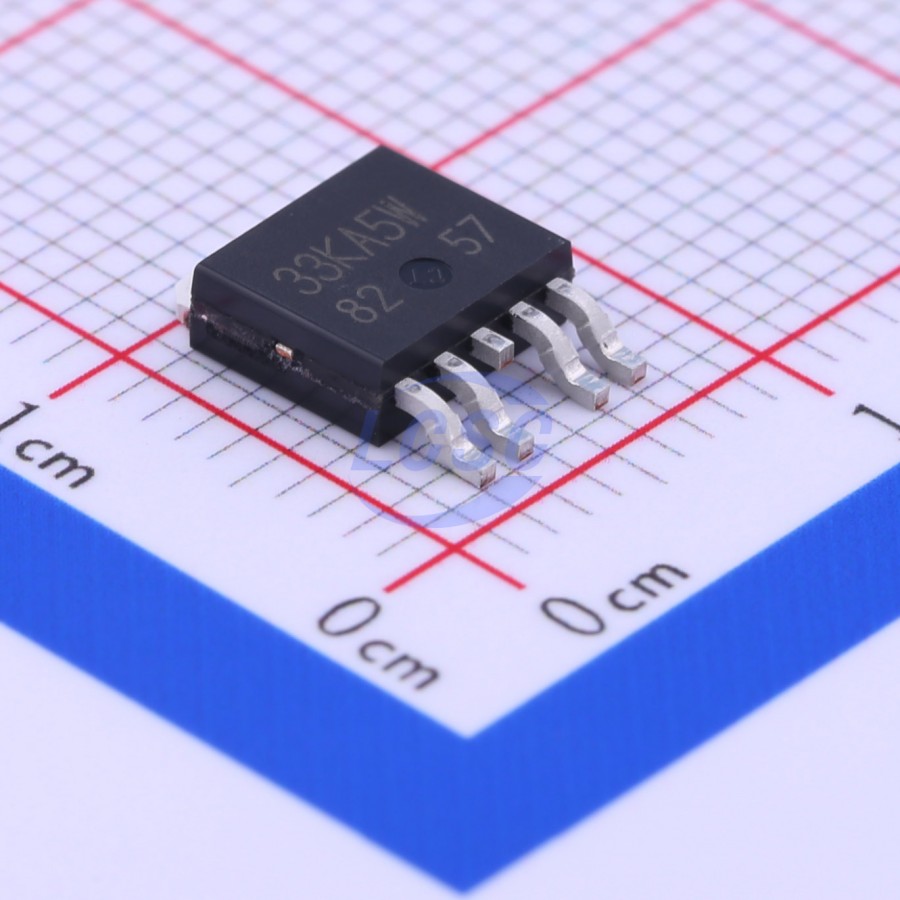

BD33KA5WFP-E2
3.3V Positive Fixed TO-252-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-5ROHS3 CompliantActive
500mA Variable/Fixed LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BD33KA5WFP-E2
- Store part #
- C308590
- Package / case
- TO-252-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32 in stock
#C308590
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹148.92 | ₹148.92 |
| 10+ | ₹145.25 | ₹1,452.50 |
| 30+ | ₹142.67 | ₹4,280.10 |
| 100+ | ₹140.09 | ₹14,009.00 |
1 × ₹148.92
₹148.92
excl. GST
₹175.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BD33KA5WFP-E2
₹148.92 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃@(Ta)
- Supply Current (Iq)
- 350uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
The BDxxKA5 series are low-saturation regulators that are available for output currents up to 500mA. The output voltage precision is ± 1%. These LDO regulators are offered in several output voltages and package lineups with or without ON/OFF switches (that set the circuit current to 0μA at shutdown). This series can be used for a broad spectrum of applications ranging from TVs and car audio systems to HDDs, PCs, and DVDs. There regulators have a built-in overcurrent protection circuit that prevents the destruction of the IC, due to output short circuits and a thermal shutdown circuit.
Applications
- Microcontrollers and all electronic devices that use logic circuit
Key features
- Output voltage precision: ±1%
- Low-saturation voltage with PMOS output: 0.12V Typ.(10 = 200mA)
- Built-in over-current protection circuit
- Built-in thermal shutdown circuit
- Shutdown switch (BDxxKA5WFP and BDxxKA5WF series)
- Ceramic capacitor compatible (recommended capacitance: 1μF or greater)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BA33BC0WFP-E2#C3747811ROHM · TO-252-5 | ROHM | TO-252-5 | 41 | ₹190.29 · 41 in stock | View |
 | TC1263-3.3VETTR#C632867MICROCHIP · TO-252-5 | MICROCHIP | TO-252-5 | 12 | ₹241.39 · 12 in stock | View |
 | TC1265-3.3VETTR#C632876MICROCHIP · TO-252-5 | MICROCHIP | TO-252-5 | 23 | ₹302.41 · 23 in stock | View |
 | BA033CC0WFP-E2#C84986ROHM · TO-252-5 | ROHM | TO-252-5 | 51 | ₹130.61 · 51 in stock | View |
 | BD33C0AWFP-CE2#C3747778ROHM · TO-252-5 | ROHM | TO-252-5 | 12 | ₹207.35 · 12 in stock | View |
