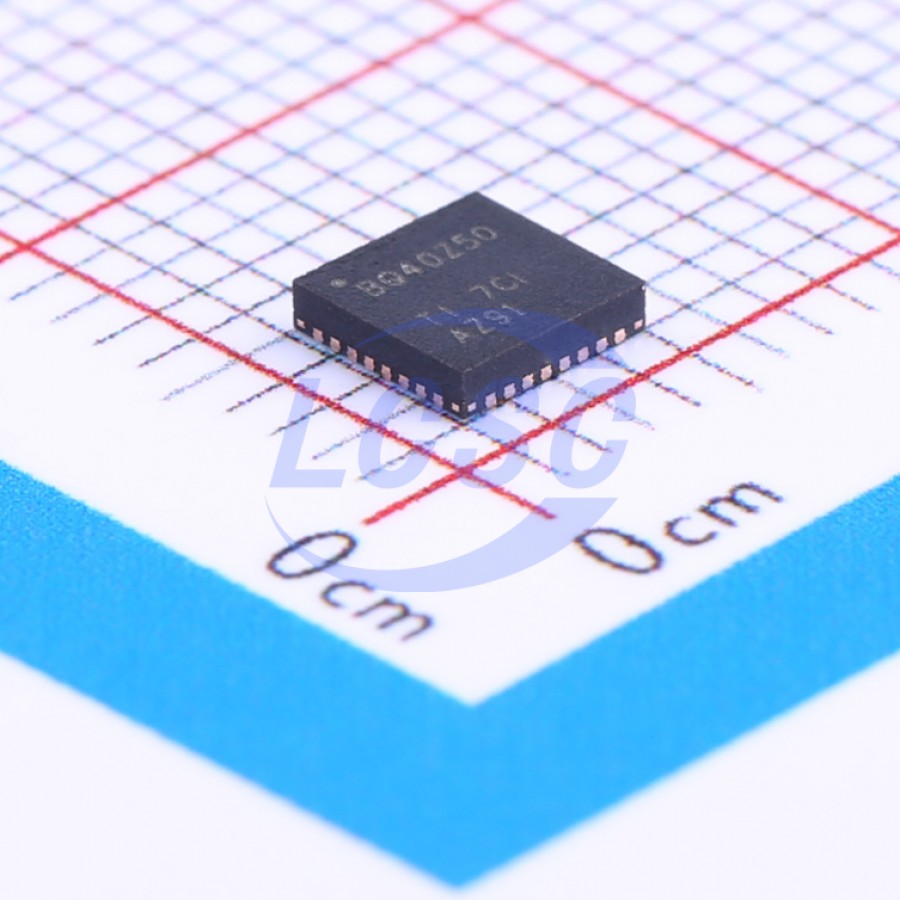

BQ40Z50RSMR-R1

The bq40z50-R1 device, incorporating patented Impedance Track technology, is a fully integrated, single-chip, pack-based solution that provides a rich array of features for gas gauging, protection, and authentication for 1-series, 2-series, 3-series, and 4-series cell Li-Ion and Li-Polymer battery packs. Using its integrated high-performance analog peripherals, the bq40z50-R1 device measures and maintains an accurate record of available capacity, voltage, current, temperature, and other critical parameters in Li-Ion or Li-Polymer batteries, and reports this information to the system host controller over an SMBus v1.1 compatible interface. The bq40z50-R1 device supports TURBO BOOST mode by providing the available max power and max current to the host system. The device also supports Battery Trip Point to send a BTP interrupt signal to the host system at the pre-set state of charge thresholds. The bq40z50-R1 provides software-based 1st- and 2nd-level safety protection against overvoltage, undervoltage, overcurrent, short-circuit current, overload, and overtemperature conditions, as well as other pack- and cell-related faults. SHA-1 authentication, with secure memory for authentication keys, enables identification of genuine battery packs. The compact 32-lead QFN package minimizes solution cost and size for smart batteries while providing maximum functionality and safety for battery gauging applications.

Applications

• Notebook/Netbook PCs
• Medical and Test Equipment
• Portable Instrumentation

Key features

• Fully Integrated 1-Series, 2-Series, 3-Series, and 4-Series Li-Ion or Li-Polymer Cell Battery Pack Manager and Protection
• Next-Generation Patented Impedance Track Technology Accurately Measures Available Charge in Li-Ion and Li-Polymer Batteries
• High Side N-CH Protection FET Drive
• Integrated Cell Balancing While Charging or At Rest
• Full Array of Programmable Protection Features
• Voltage
• Current
• Temperature
• Charge Timeout
• CHG/DSG FETs
• AFE
• Sophisticated Charge Algorithms
• JEITA Enhanced Charging Adaptive Charging Cell Balancing
• Supports TURBO BOOST Mode
• Supports Battery Trip Point (BTP) Diagnostic Lifetime Data Monitor and Black Box Recorder
• LED Display
• Supports Two-Wire SMBus v1.1 Interface
• SHA-1 Authentication
• Compact Package: 32-Lead QFN (RSM)
