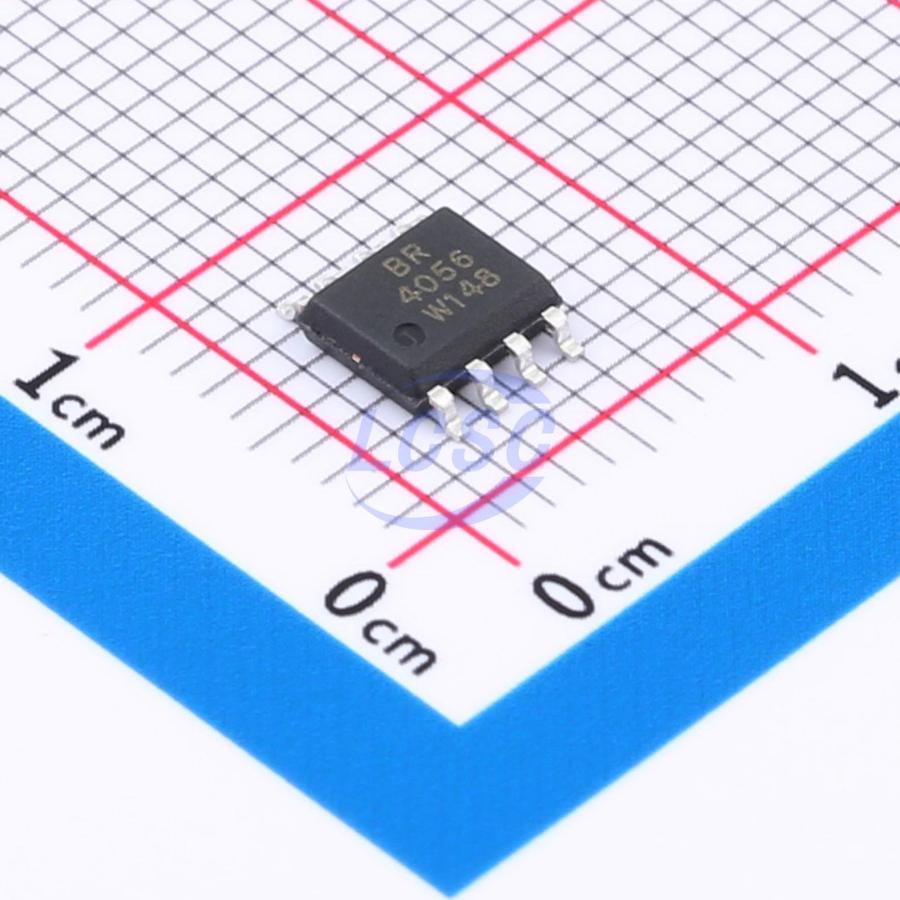

BRCL4056SE
Battery Charging IC Lithium-ion/Polymer ESOP-8
Single-cell lithium battery constant current/constant voltage charging management integrated circuit
- Manufacturer
- BLUE ROCKET
- Manufacturer part #
- BRCL4056SE
- Store part #
- C19190006
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,040 in stock
#C19190006
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.25 | ₹72.50 |
| 100+ | ₹5.71 | ₹571.00 |
| 300+ | ₹4.95 | ₹1,485.00 |
| 1,000+ | ₹4.37 | ₹4,370.00 |
| 4,000+ | ₹3.92 | ₹15,680.00 |
| 8,000+ | ₹3.69 | ₹29,520.00 |
10 × ₹7.25
₹72.50
excl. GST
₹85.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BRCL4056SE
₹72.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 2uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.172 g
Overview
The BRCL4056SE is an ESOP-8 packaged IC for constant-current/constant-voltage linear charging management of single-cell lithium batteries. The device integrates a power transistor internally, eliminating the need for external current-sense resistors and blocking diodes. Requiring minimal external components, the BRCL4056SE is ideally suited for portable applications. The constant-voltage charge regulation is fixed at 4.2V with 1% accuracy, and the charge current is set via a single external resistor. A thermal regulation circuit controls the die temperature within a safe range during high power dissipation or elevated ambient temperature conditions. When the input voltage is removed, the BRCL4056SE automatically enters a low-power sleep mode, reducing battery drain to less than 2uA. Additional features include input undervoltage lockout, automatic recharge, chip enable input, battery temperature monitoring, and charge status indication.
Applications
- Mobile phones
- Power banks
- Digital cameras
- MP3 players
- Bluetooth applications
- Portable devices
- USB bus-powered chargers
Key features
- Programmable charge current up to 1.0A
- Input voltage range: 4.5~6.5V
- No external MOSFET, sense resistor, or blocking diode required
- Preset 4.2V charge voltage with ±1% accuracy
- CC/CV/constant temperature charging mode — maximizes charge current while preventing overheating
- Battery reverse polarity protection
- Battery temperature monitoring
- Auto-recharge
- Dual-LED charge status indication with battery absent and fault status display
- Automatic entry into low-power sleep mode upon VCC dropout
- Soft-start inrush current limiting
- Enable pin control
- ESOP-8 package with exposed pad, halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BRCL4058ESE#C22435009BLUE ROCKET · ESOP-8 | BLUE ROCKET | ESOP-8 | 1,395 | ₹12.43 · 1,395 in stock | View |
 | BRCL4056BSE#C328564BLUE ROCKET · ESOP-8 | BLUE ROCKET | ESOP-8 | 23,976 | ₹15.35 · 23,976 in stock | View |
