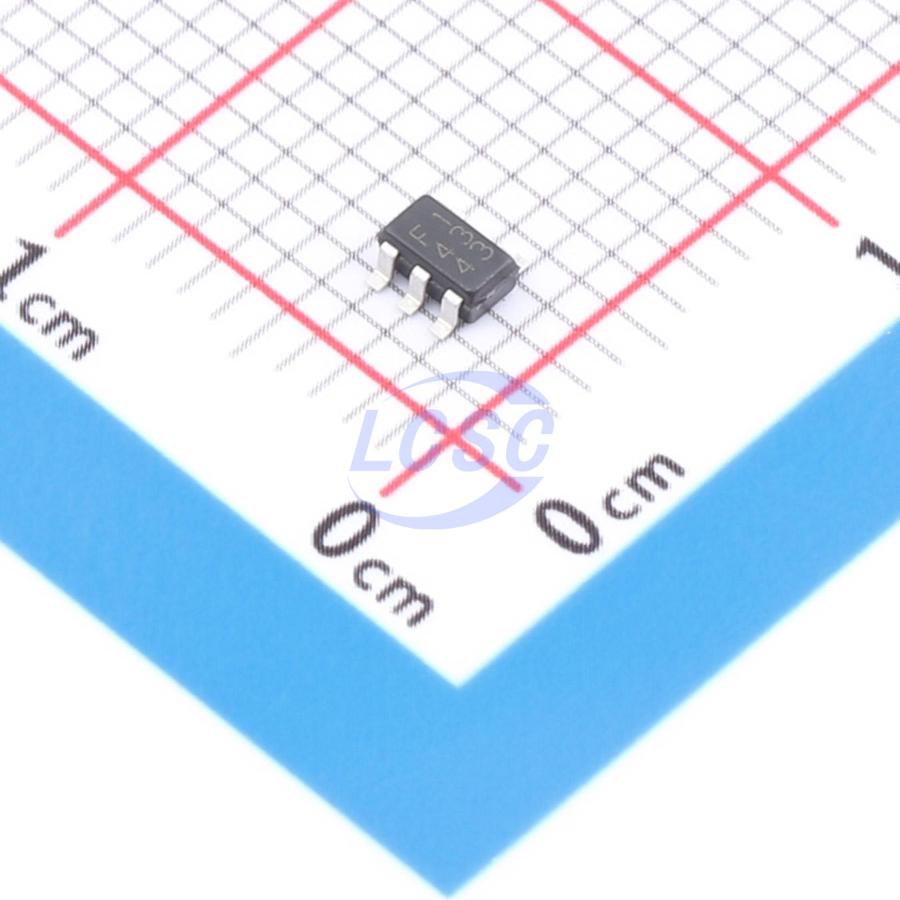

BU12TD3WG-TR
1.2V Positive Fixed SC-74A Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SC-74AROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- BU12TD3WG-TR
- Store part #
- C5158102
- Package / case
- SC-74A
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
84 in stock
#C5158102
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹48.47 | ₹48.47 |
| 10+ | ₹47.19 | ₹471.90 |
| 30+ | ₹46.54 | ₹1,396.20 |
| 100+ | ₹45.89 | ₹4,589.00 |
1 × ₹48.47
₹48.47
excl. GST
₹57.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BU12TD3WG-TR
₹48.47 for 1 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.065 g
Overview
The BUxxTD3WG series is a high-performance full-CMOS LDO regulator with a 200 mA output current in a universal SSOP5 package (2.9 mm × 2.8 mm × 1.25 mm). Despite a circuit current consumption as low as 35 μA, it delivers excellent noise characteristics and load transient response. It is ideal for powering logic ICs, RF circuits, and camera modules across a wide range of applications.
Applications
- Battery-powered portable devices, etc.
Key features
- High-precision detection
- Low current consumption
- Compatible with small ceramic capacitors (Cin = Co = 0.47 μF)
- Built-in output discharge circuit
- High ripple rejection
- ON/OFF control of output voltage
- Built-in overcurrent protection and thermal shutdown circuits
- SSOP5 package similar to SOT-23-5 (JEDEC)
- Low dropout voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP2127K-1.2TRG1#C151376DIODES · SOT-23-5 | DIODES | SOT-23-5 | 285 | ₹16.70 · 285 in stock | View |
 | RT9013-12GB#C23380883TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,005 | ₹11.76 · 1,005 in stock | View |
 | WL2803E12#C41408119TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,325 | ₹12.93 · 2,325 in stock | View |
 | TPRT9013-12GB#C587161TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,460 | ₹11.84 · 1,460 in stock | View |
 | AP7366-12W5-7#C3746334DIODES · SOT-25 | DIODES | SOT-25 | 25 | ₹26.57 · 25 in stock | View |
