ZHHXDZDatasheet (PDF)

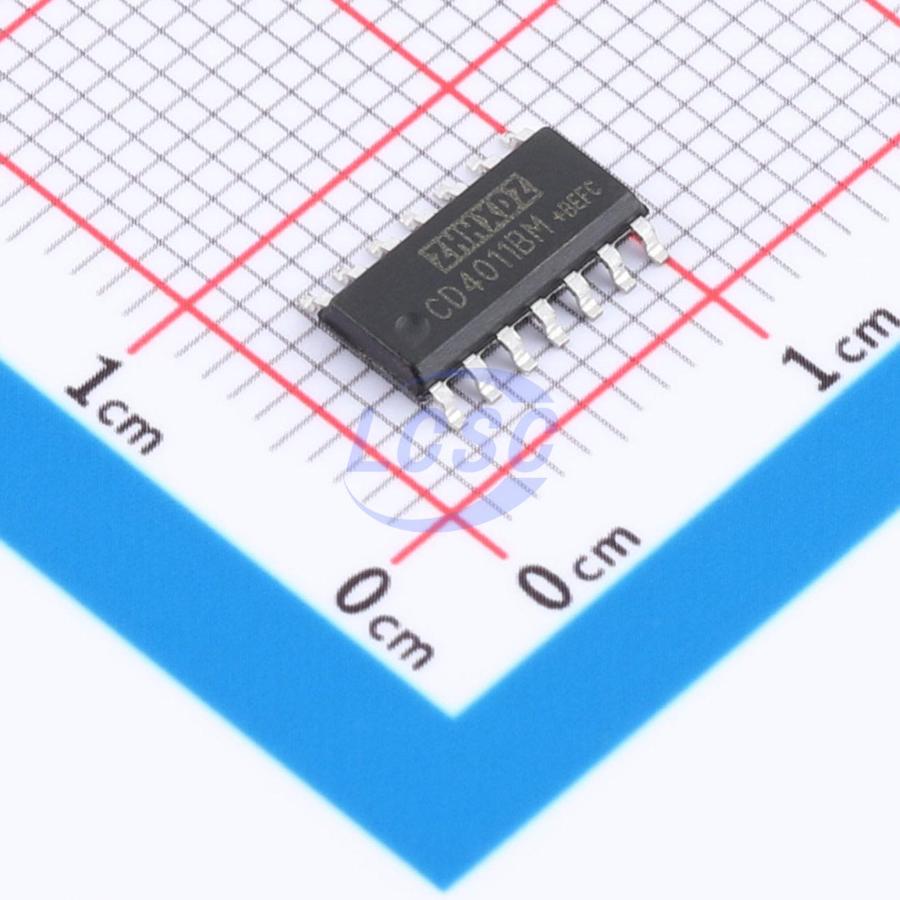

CD4011BM96-HX
TTL-compatible CMOS 3V~13V 70ns@15V,50pF SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- CD4011BM96-HX
- Store part #
- C53284324
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,480 in stock
#C53284324
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.25 | ₹61.25 |
| 50+ | ₹9.75 | ₹487.50 |
| 150+ | ₹8.49 | ₹1,273.50 |
| 500+ | ₹7.55 | ₹3,775.00 |
| 2,500+ | ₹6.80 | ₹17,000.00 |
| 5,000+ | ₹6.43 | ₹32,150.00 |
5 × ₹12.25
₹61.25
excl. GST
₹72.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4011BM96-HX
₹61.25 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Voltage - Supply
- 3V~13V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 70ns@15V,50pF
- Input Logic Level - High
- 3.5V;7V;11V
- Input Logic Level - Low
- 1.5V;3V;4V
- Operating Temperature
- -20℃~+85℃
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Current - Output High(IOH)
- 8.8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8.8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.325 g
Overview
CD4011BM96-HX is a monolithic complementary CMOS IC constructed with enhanced N-channel and P-channel transistors. The device features symmetrical source and sink current capability, compliant with B-series output drive standards. It integrates internal output buffers that provide high gain to improve transfer characteristics. All inputs are protected by diodes connected to VDD and VSS to guard against ESD damage.
Key features
- Low power consumption
- TTL logic level compatible
- Symmetrical output characteristics
- Low input leakage current
- Capable of driving 2 74L series or 1 74LS series load
