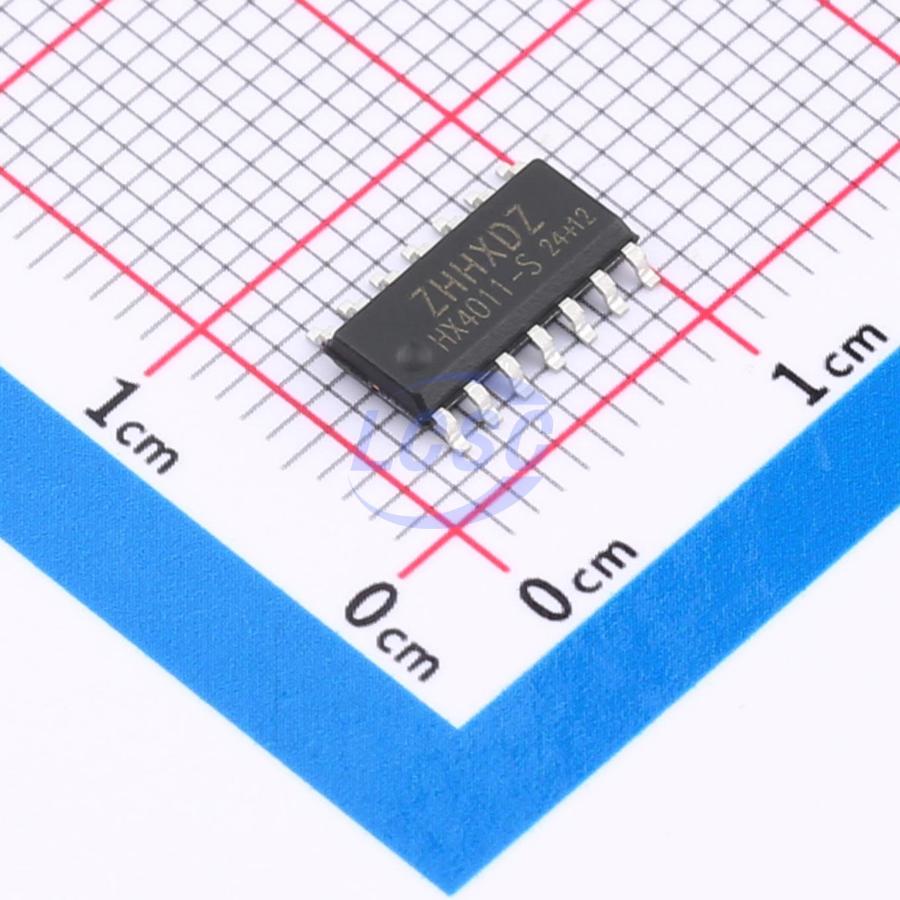

HX4011-S
TTL-compatible CMOS 3V~13V 250ns@5V,50pF 1uA SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
four and not gate
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- HX4011-S
- Store part #
- C42431685
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,475 in stock
#C42431685
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.18 | ₹60.90 |
| 50+ | ₹9.63 | ₹481.50 |
| 150+ | ₹8.35 | ₹1,252.50 |
| 500+ | ₹7.40 | ₹3,700.00 |
| 2,500+ | ₹6.63 | ₹16,575.00 |
| 5,000+ | ₹6.24 | ₹31,200.00 |
5 × ₹12.18
₹60.90
excl. GST
₹71.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX4011-S
₹60.90 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Voltage - Supply
- 3V~13V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 250ns@5V,50pF
- Input Logic Level - High
- 3.5V;7V;11V
- Operating Temperature
- -20℃~+85℃
- Input Logic Level - Low
- 1.5V;3V;4V
- Output Logic Level - High
- 4.95V~5V;9.95V~10V;14.95V~15V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8.8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8.8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.25 g
Overview
HX4011 - S is a monolithic complementary CMOS integrated circuit composed of enhanced N - channel and P - channel. They have equal source current and current absorption capabilities and comply with the B - Series output driver standard. The device has an output buffer that improves transmission characteristics by providing very high gain. To prevent electrostatic breakdown, all inputs have protective diodes for VDD and VSS
Key features
- Low power consumption
- TTL compatible
- Symmetrical output characteristics
- Low input leakage current
- Capable of driving 2 74L or 1 74LS device
- Internal block diagram
- Protection circuit
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4011BM96-HX#C53284324ZHHXDZ · SOP-14 | ZHHXDZ | SOP-14 | 2,480 | ₹12.25 · 2,480 in stock | View |
 | CD4093BM96-HX#C53284319ZHHXDZ · SOP-14 | ZHHXDZ | SOP-14 | 2,435 | ₹10.78 · 2,435 in stock | View |
 | HX4093-S#C42431690ZHHXDZ · SOP-14 | ZHHXDZ | SOP-14 | 1,430 | ₹10.72 · 1,430 in stock | View |
