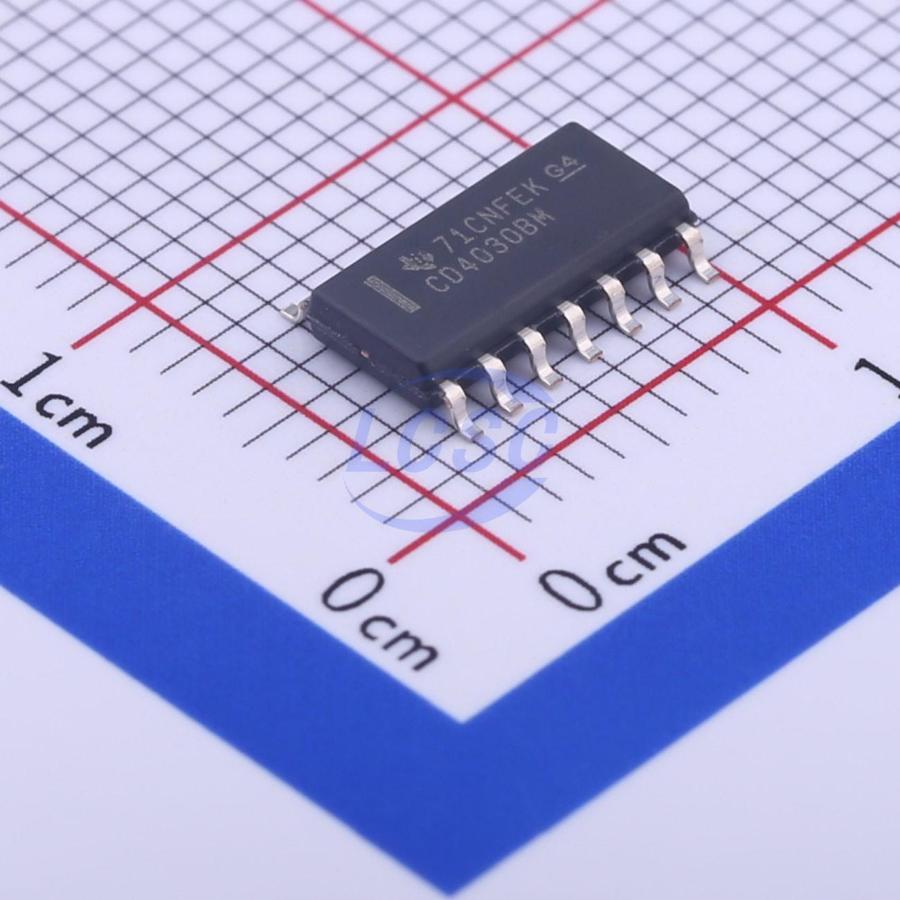

CD4030BM96
3V~18V 100ns@15V,50pF 1uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
CMOS Quad Exclusive-OR Gate
- Manufacturer
- TI
- Manufacturer part #
- CD4030BM96
- Store part #
- C44237
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,616 in stock
#C44237
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.36 | ₹97.36 |
| 10+ | ₹77.58 | ₹775.80 |
| 30+ | ₹69.11 | ₹2,073.30 |
| 100+ | ₹58.68 | ₹5,868.00 |
| 500+ | ₹53.90 | ₹26,950.00 |
| 1,000+ | ₹45.86 | ₹45,860.00 |
1 × ₹97.36
₹97.36
excl. GST
₹114.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4030BM96
₹97.36 for 1 + GST
Specifications
- Logic Family
- 4000B Series
- Voltage - Supply
- 3V~18V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 100ns@15V,50pF
- Input Logic Level - High
- 3.5V~11V
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - Low
- 1.5V~4V
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
CD4030B types consist of four independent Exclusive-OR gates. The CD4030B provides the system designer with a means for direct implementation of the Exclusive-OR function.
Applications
- Even and odd-parity generators and checkers
- Logical comparators
- Adders/subtractors
- General logic functions
Key features
- Medium-speed operation - tphL, tphL = 65 ns (typ.) at VDD = 10V, CL = 50 pF
- 100% tested for quiescent current at 20 V
- Standardized, symmetrical output characteristics
- 5-V, 10-V, and 15-V parametric ratings
- Maximum input current of 1 μA at 18 V over full package temperature range; 100 nA at 18 V and 25℃
- Noise margin (over full package-temperature range):
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
