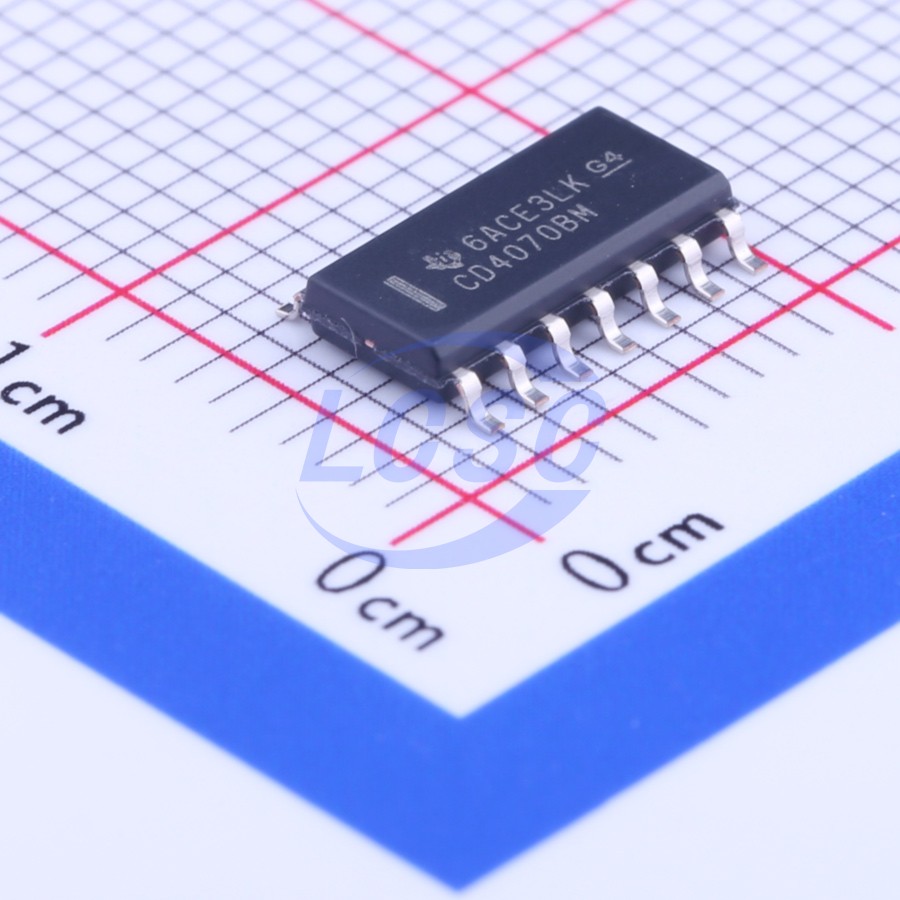

CMOS Quad Exclusive-OR and Exclusive-NOR Gate
- Manufacturer
- TI
- Manufacturer part #
- CD4070BM96
- Store part #
- C28329
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,151 in stock
#C28329
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.13 | ₹92.13 |
| 10+ | ₹72.79 | ₹727.90 |
| 30+ | ₹64.54 | ₹1,936.20 |
| 100+ | ₹54.32 | ₹5,432.00 |
| 500+ | ₹49.76 | ₹24,880.00 |
| 1,000+ | ₹42.16 | ₹42,160.00 |
1 × ₹92.13
₹92.13
excl. GST
₹108.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4070BM96
₹92.13 for 1 + GST
Specifications
- Input Logic Level - High
- 3.5V~11V
- Input Logic Level - Low
- 1.5V~4V
- Operating Temperature
- -55℃~+125℃
- Logic Family
- 4000B Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~18V
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 65ns@10V,50pF
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.33 g
Overview
The CD4070B contains four independent Exclusive-OR gates. The CD4077B contains four independent Exclusive-NOR gates. The CD4070B and CD4077B provide the system designer with a means for direct implementation of the Exclusive-OR and Exclusive-NOR functions, respectively.
Applications
- Logical Comparators
- Adders/Subtractors
- Parity Generators and Checkers
Key features
- High-Voltage Types (20V Rating)
- Quad Exclusive-OR Gate
- Quad Exclusive-NOR Gate
- Medium Speed Operation
- tPHL, tPLH = 65ns (Typ) at VDD = 10V, CL = 50pF
- 100% Tested for Quiescent Current at 20V
- Standardized Symmetrical Output Characteristics
- 5V, 10V and 15V Parametric Ratings
- Maximum Input Current of 1μA at 18V Over Full Package Temperature Range
- 100nA at 18V and 25℃
- Noise Margin (Over Full Package Temperature Range)
- 1V at VDD = 5V, 2V at VDD = 10V, 2.5V at VDD = 15V
- Meets All Requirements of JEDEC Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
