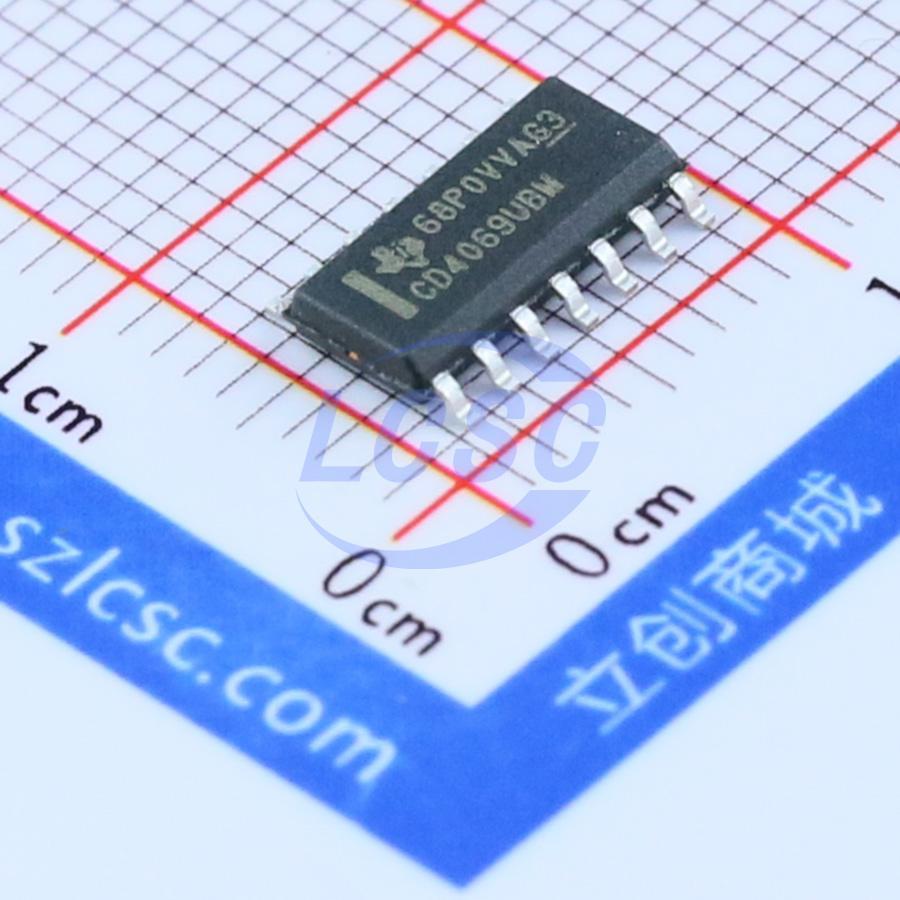

CD4069UBM96
3V~18V 50ns@15V,50pF 1uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
CMOS Hex Inverter
- Manufacturer
- TI
- Manufacturer part #
- CD4069UBM96
- Store part #
- C93672
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32,155 in stock
#C93672
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.46 | ₹142.30 |
| 50+ | ₹22.50 | ₹1,125.00 |
| 150+ | ₹19.95 | ₹2,992.50 |
| 500+ | ₹16.76 | ₹8,380.00 |
| 2,500+ | ₹14.01 | ₹35,025.00 |
| 5,000+ | ₹13.15 | ₹65,750.00 |
5 × ₹28.46
₹142.30
excl. GST
₹167.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4069UBM96
₹142.30 for 5 + GST
Specifications
- Logic Family
- 4000B
- Voltage - Supply
- 3V~18V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 50ns@15V,50pF
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - Low
- 1V~2.5V
- Input Logic Level - High
- 4V~12.5V
- Output Logic Level - High
- 4.95V~5V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.335 g
Overview
The CD4069UB device consist of six CMOS inverter circuits. These devices are intended for all general - purpose inverter applications where the medium - power TTL - drive and logic - level - conversion capabilities of circuits such as the CD4009 and CD4049 hex inverter and buffers are not required.
Applications
- Logic Inversion
- Pulse Shaping
- Oscillators
- High - Input - Impedance Amplifiers
Key features
- Standardized Symmetrical Output Characteristics
- Medium Speed Operation: - propagation delay time from high to low (tPHL), propagation delay time from low to high (tPLH) = 30 ns at 10 V (Typical)
- 100% Tested for Quiescent Current at 20 V
- Maximum Input Current of 1 μA at 18 V Over Full Package - Temperature Range, 100 nA at 18 V and 25 ℃
- Meets All Requirements of JEDEC Tentative Standard No. 13B, Standard Specifications for Description of B Series CMOS Devices
