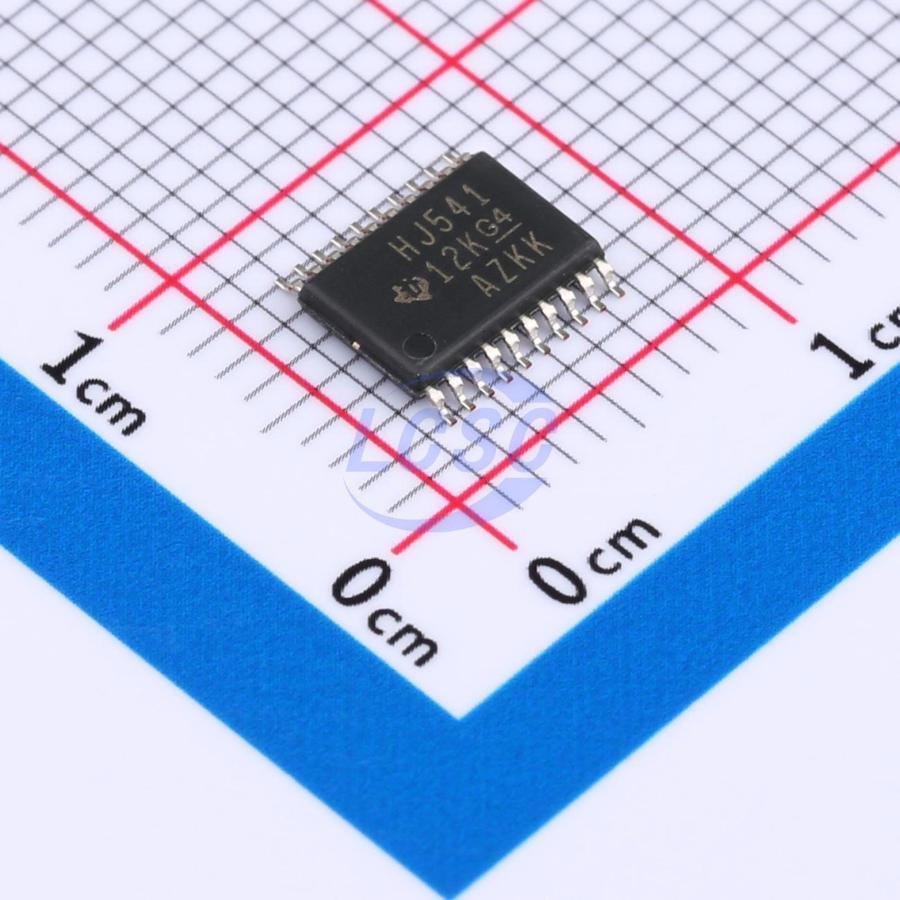

CD74HC541PWR

Buffered Input, Tri-State Output, Bus Drive Capability ’HC540 and CD74HCT540 are inverting octal buffers and line drivers with tri-state outputs, capable of driving 15 LSTTL loads. ’HC541 and ’HCT541 are non-inverting octal buffers and line drivers with tri-state outputs, capable of driving 15 LSTTL loads. Output enables (OE1) and (OE2) control the tri-state outputs. If OE1 or OE2 is high, the outputs are in a high-impedance state. For data output, both OE1 and OE2 must be low. Fan-out (over temperature range) Wide operating temperature range: -55 °C to 125 °C Balanced propagation delay and transition time Significantly reduced power consumption compared to LSTTL logic ICs HC type – Operating voltage from 2V to 6V High noise immunity: When VCC = 5V, N1L = 30%, NIH = 30% of VCC HCT type – Operating voltage from 4.5V to 5.5V Direct LSTTL input logic compatibility, VIL = 0.8V (max), VIH = 2V (min) – CMOS input compatibility, when the voltage is VOL, VOH, I1 ≤ 1μA

Key features

• Buffered input, 3-state output bus drive capability
• Wide operating temperature range: −55°C to 125°C
• Balanced propagation delay and transition time
• Significantly reduced power consumption compared to LSTTL logic ICs
• HC type operating voltage: 2V to 6V
• HC type high noise immunity: N1L = 30%, NIH = 30% of VCC at VCC = 5V
• HCT type operating voltage: 4.5V to 5.5V
• HCT type direct LSTTL input logic compatibility: VIL = 0.8V (max), VIH = 2V (min)
• HCT type CMOS input compatibility at VOL, VOH: I1 ≤ 1μA
