JSCJ

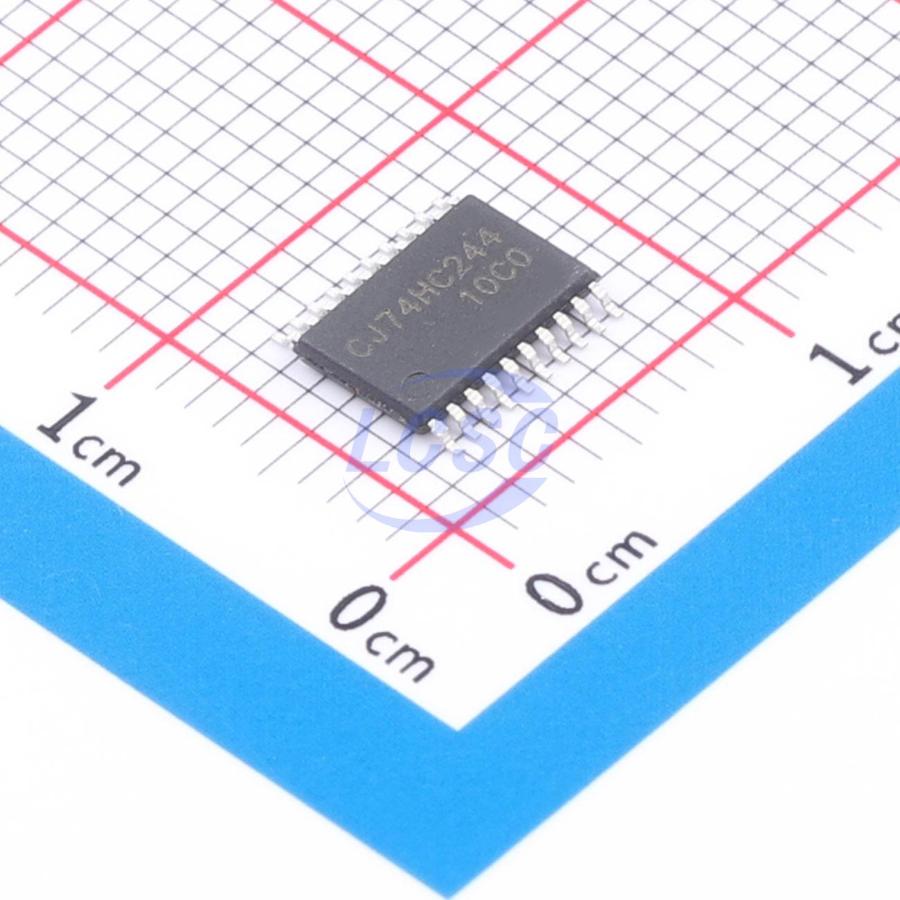

CJ74HC244BGN

StandardCMOS 2V~6V 8 1 9ns@5V,15pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers

TSSOP-20RoHSActive

Manufacturer: JSCJ
Manufacturer part #: CJ74HC244BGN
Store part #: C52145526
Package / case: TSSOP-20
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,190 in stock

#C52145526

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹30.26	₹151.30
50+	₹23.72	₹1,186.00
150+	₹20.92	₹3,138.00
500+	₹17.42	₹8,710.00
2,500+	₹15.86	₹39,650.00
4,000+	₹14.94	₹59,760.00

Quantity (min 5, multiples of 5)

5 × ₹30.26

₹151.30

excl. GST

₹178.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

CJ74HC244BGN

₹151.30 for 5 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 7.8mA
Input type: StandardCMOS
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 7.8mA
Number of Bits per Element: 8
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 160uA
Propagation Delay: 9ns@5V,15pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

CJ74HC/HCT244 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. It features two output enable pins, each controlling four 3-state outputs. When an output enable pin is HIGH, the outputs enter a high-impedance state. The inputs include clamping diodes, allowing the input interface to be connected to voltages higher than VCC through current-limiting resistors.

Applications

Servers
LED displays
Network switches
Telecom infrastructure
Motor control

Key features

Input levels: CMOS for CJ74HC244; TTL for CJ74HCT244
8-bit bus interface
Non-inverting tri-state outputs
Operating temperature range: -40℃ to +125℃
