TIDatasheet (PDF)

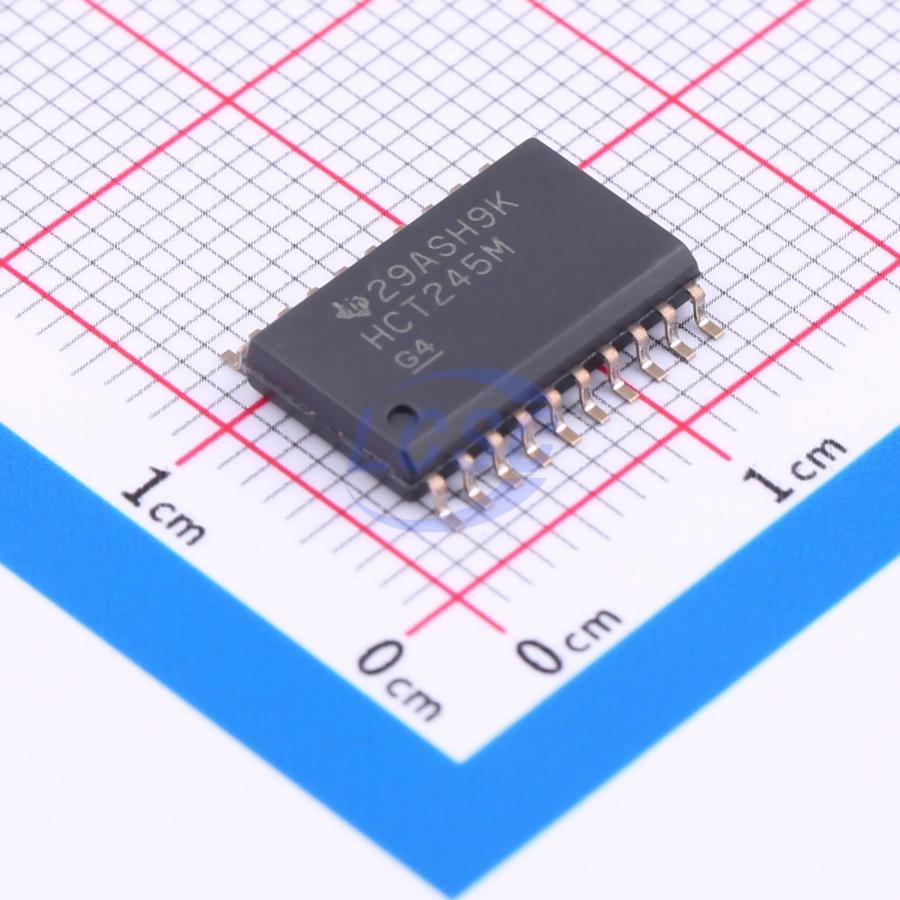

CD74HCT245M96
TTL-compatible CMOS 4.5V~5.5V 8 33ns@4.5V,50pF SOIC-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-300milROHS3 CompliantActive
Three-state in-phase high-speed CMOS logic octal bus transceiver
- Manufacturer
- TI
- Manufacturer part #
- CD74HCT245M96
- Store part #
- C2676067
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,417 in stock
#C2676067
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.12 | ₹107.12 |
| 10+ | ₹85.96 | ₹859.60 |
| 30+ | ₹75.37 | ₹2,261.10 |
| 100+ | ₹64.79 | ₹6,479.00 |
| 500+ | ₹58.53 | ₹29,265.00 |
| 1,000+ | ₹55.29 | ₹55,290.00 |
1 × ₹107.12
₹107.12
excl. GST
₹126.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
CD74HCT245M96
₹107.12 for 1 + GST
Specifications
- Function
- Output enable
- Input type
- TTL-compatible CMOS
- Current - Output High(IOH)
- 4mA
- Series
- CD4HCT
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 4mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Operating Temperature
- -55℃~+125℃
- Quiescent Supply Current
- 160uA
- Propagation Delay
- 33ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.57 g
Overview
The CDx4HC(T)245 is an octal bus transceiver with three-state outputs. All eight channels are controlled by the Direction (DIR) pin and the Output Enable OE̅ pin.
Key features
- Buffered input, tri-state output bus drive capability
- Typical propagation delay (A to B, B to A) of 9ns at V_CC = 5V, C_L = 15pF, T_A = 25℃
- Fan-out (over temperature range): 15 LSTTL loads for bus driver outputs
- Wide operating temperature range: -55℃ to 125℃
- Balanced propagation delay and transition times
- Significantly reduced power consumption compared to LSTTL logic ICs
- HC type: 2V to 6V operating voltage
- HC type: High noise immunity — N_IL = 30%, N_IH = 30% of V_CC at V_CC = 5V
- HCT type: 4.5V to 5.5V operating voltage
- HCT type: Direct LSTTL input logic compatibility, V_IL = 0.8V (max), V_IH = 2V (min)
- HCT type: CMOS input compatibility, I_L ≤ 1μA at V_OL and V_OH
