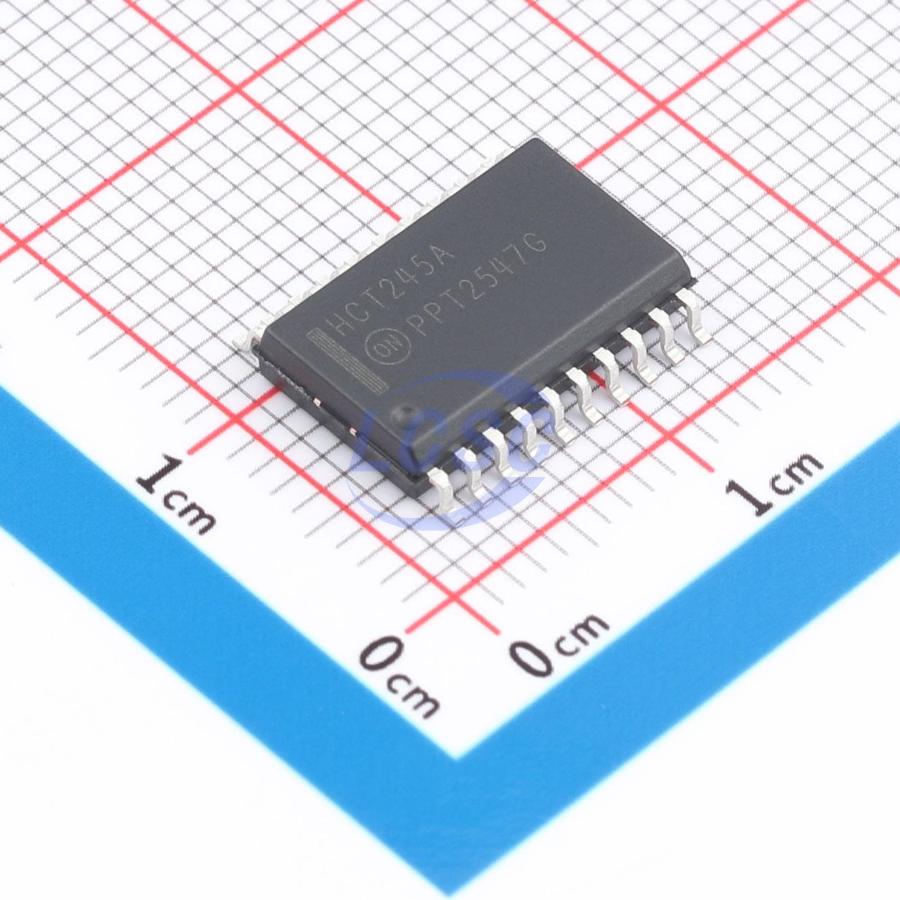

MC74HCT245ADWR2G
4.5V~5.5V 8 1 33ns@5V,50pF SOIC-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-300milROHS3 CompliantActive
Octal 3-State Noninverting Bus Transceiver with LSTTL Compatible Inputs
- Manufacturer
- onsemi
- Manufacturer part #
- MC74HCT245ADWR2G
- Store part #
- C7582
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,467 in stock
#C7582
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.54 | ₹84.54 |
| 10+ | ₹69.54 | ₹695.40 |
| 30+ | ₹61.93 | ₹1,857.90 |
| 100+ | ₹54.55 | ₹5,455.00 |
| 500+ | ₹45.21 | ₹22,605.00 |
| 1,000+ | ₹42.81 | ₹42,810.00 |
1 × ₹84.54
₹84.54
excl. GST
₹99.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MC74HCT245ADWR2G
₹84.54 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -55℃~+125℃
- Quiescent Supply Current
- 160uA
- Function
- Level shifting;Output enable
- Current - Output High(IOH)
- 6mA
- Series
- 74HCT
- Current - Output Low(IOL)
- 6mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Propagation Delay
- 33ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 13.333 g
Overview
The MC74HCT245A is identical in pinout to the LS245. This device may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs. The MC74HCT245A is a 3−state noninverting transceiver that is used for 2−way asynchronous communication between data buses. The device has an active−low Output Enable pin, which is used to place the I/O ports into high−impedance states. The Direction control determines whether data flows from A to B or from B to A.
Key features
- Output Drive Capability: 15 LSTTL Loads
- TTL/NMOS Compatible Input Levels
- Outputs Directly Interface to CMOS, NMOS and TTL
- Operating Voltage Range: 4.5 V to 5.5 V
- Low Input Current: 1.0 μA
- In Compliance with the Requirements Defined by JEDEC Standard No. 7 A
- Chip Complexity: 304 FETs or 76 Equivalent Gates
- These Devices are Pb −Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MC74HCT245ADWG#C906725onsemi · SOIC-20-300mil | onsemi | SOIC-20-300mil | 1 | ₹85.28 · 1 in stock | View | |
 | 74HCT245D#C2675539TOSHIBA · SOIC-20-300mil | TOSHIBA | SOIC-20-300mil | 41 | ₹69.33 · 41 in stock | View |
 | 74HCT245D,653#C5979Nexperia · SOIC-20-300mil | Nexperia | SOIC-20-300mil | 17,172 | ₹56.93 · 17,172 in stock | View |
 | SN74HCT245DWR#C132267TI · SOIC-20-300mil | TI | SOIC-20-300mil | 2,802 | ₹89.91 · 2,802 in stock | View |
 | CD74ACT245M#C2861832TI · SOIC-20-300mil | TI | SOIC-20-300mil | 33 | ₹202.50 · 33 in stock | View |
