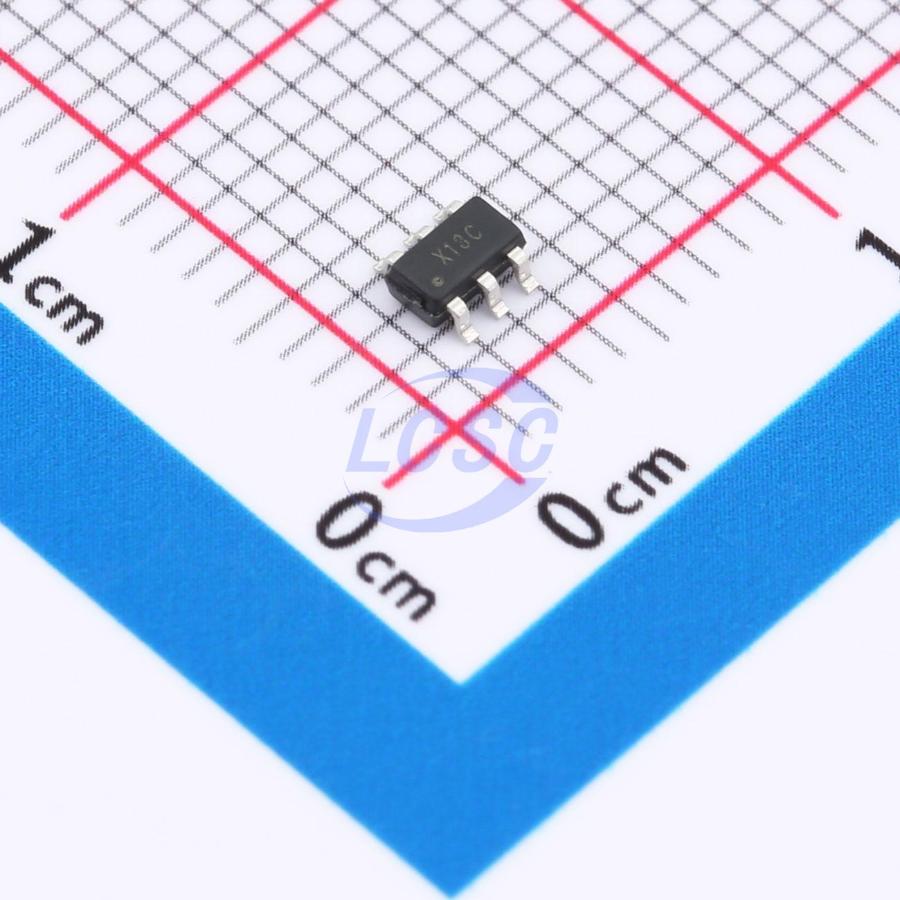

CI121S051
12 Bit Analog to Digital Converter 1 Input SAR SOT-23-6
SOT-23-6ROHS CompliantActive
Ultra-low-power 12/10/8-bit SAR Analog-to-Digital Converter
- Manufacturer
- Tokmas
- Manufacturer part #
- CI121S051
- Store part #
- C46491535
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,529 in stock
#C46491535
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.61 | ₹72.61 |
| 10+ | ₹58.78 | ₹587.80 |
| 30+ | ₹51.65 | ₹1,549.50 |
| 100+ | ₹44.73 | ₹4,473.00 |
| 500+ | ₹41.28 | ₹20,640.00 |
| 1,000+ | ₹39.11 | ₹39,110.00 |
1 × ₹72.61
₹72.61
excl. GST
₹85.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CI121S051
₹72.61 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Voltage - Supply
- 3.3V~5.25V
- Number of Channels
- 1
- Integral non - linearity
- 1LSB
- Clock/Oscillator
- External
- Clock Frequency
- 10MHz
- Resolution(Bits)
- 12;500kHz
- S/N Ratio
- 72.5dB
- ADC architecture
- SAR
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
CI121S051/CI101S051/CI081S051 is an ultra-low power, small form factor, single-channel 12-bit/10-bit/8-bit ADC with a high-speed serial interface. Unlike conventional devices that specify performance at only a single sample rate, this series fully specifies performance across a sample rate range of 200 KSPS to 500 KSPS. The converter is based on a SAR architecture and integrates an internal track-and-hold circuit. These devices are available in a 6-pin SOT-23 package and operate over a temperature range of -40℃ to 85℃. This series is a drop-in replacement for the ADC121S051/ADC101S051/ADC081S051, with dynamic power consumption of only one-half that of the latter.
Applications
- Battery-powered systems
- Instrumentation and control systems
- Remote data acquisition
- Portable systems
Key features
- Single supply voltage range: 3.3V to 5.25V
- Throughput rate: 200 - 500 KSPS
- Integral nonlinearity: ±1 LSB, differential nonlinearity: ±1 LSB (CI121S051)
- Zero latency
- SPI/DSP/MICROWIRE/QSPI-compatible serial interface
- Variable power management
- Low power consumption (CI121S051 typical): 1.72mW (3.3V, 500KSPS), 4.25mW (5V, 500KSPS)
- Second source for ADC121S051/ADC101S051/ADC081S051
- 6-pin SOT-23 package
