onsemi
LM358DR2G40mA 2 7mV 70dB 45nA 700uA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
From
₹7.29
7,12,060 in stock
COSINEDatasheet (PDF)

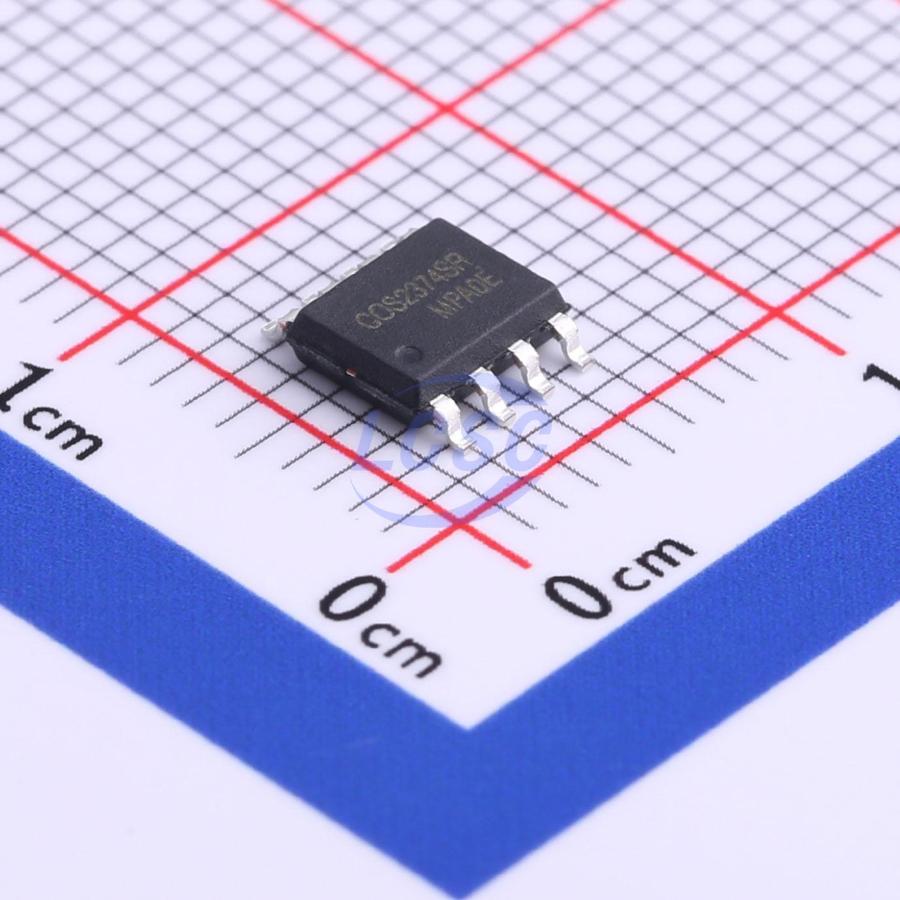

COS2374SR
21mA 2 5mV 5V/us 2.5pA 125dB 500uA 7MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS CompliantActive
7MHz, Rail-to-Rail Input/Output Low Power Operational Amplifiers
- Manufacturer
- COSINE
- Manufacturer part #
- COS2374SR
- Store part #
- C693068
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,990 in stock
#C693068
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.97 | ₹129.85 |
| 50+ | ₹20.51 | ₹1,025.50 |
| 150+ | ₹18.16 | ₹2,724.00 |
| 500+ | ₹15.24 | ₹7,620.00 |
| 2,500+ | ₹13.42 | ₹33,550.00 |
| 4,000+ | ₹12.63 | ₹50,520.00 |
5 × ₹25.97
₹129.85
excl. GST
₹153.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
COS2374SR
₹129.85 for 5 + GST
Specifications
- Output Current
- 21mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 2.5pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 2.5pA
- Common Mode Rejection Ratio(CMRR)
- 125dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 7MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Dual Supply
- -900mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | COS722SR#C693063COSINE · SOIC-8 | COSINE | SOIC-8 | 10,310 | ₹23.03 · 10,310 in stock | View |
 | COS6022SR#C18198084COSINE · SOP-8 | COSINE | SOP-8 | 175 | ₹20.20 · 175 in stock | View |
 | COS2353SR#C2685365COSINE · SOP-8 | COSINE | SOP-8 | 1,115 | ₹39.15 · 1,115 in stock | View |
 | COS2350SR#C19078363COSINE · SOP-8 | COSINE | SOP-8 | 3 | ₹58.68 · 3 in stock | View |
 | COS9162SRC#C19193261COSINE · SOP-8 | COSINE | SOP-8 | 168 | ₹72.77 · 168 in stock | View |
