COSINEDatasheet (PDF)

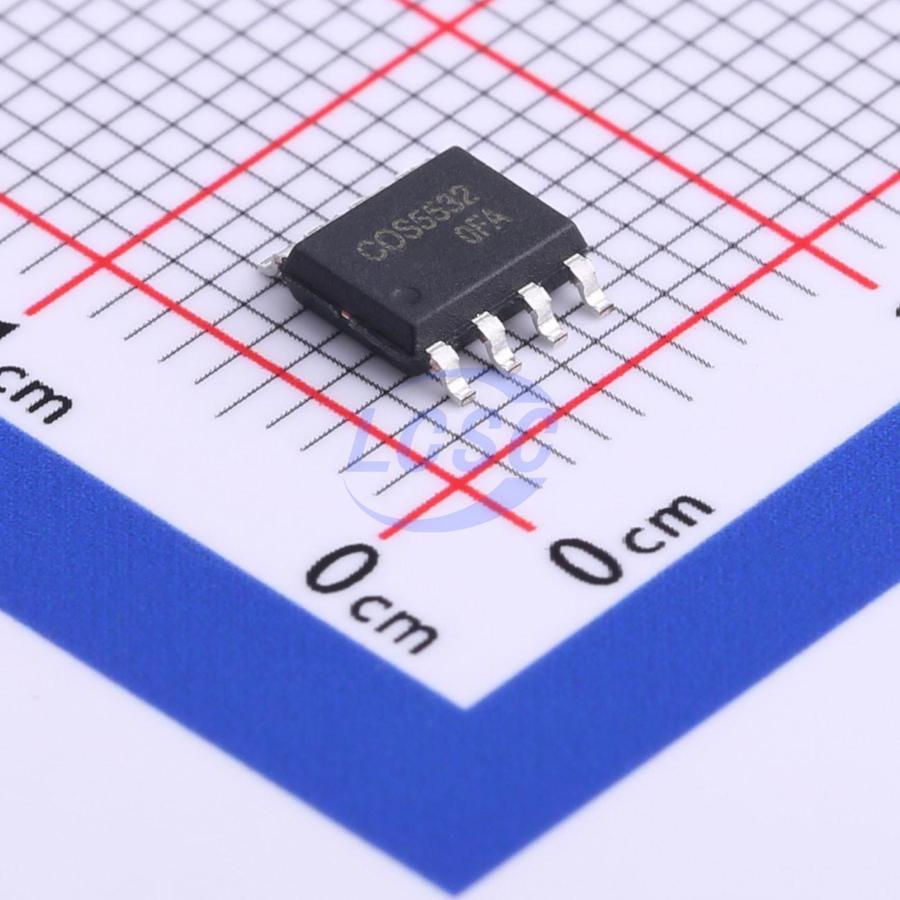

COS5532SR
60mA 2 5mV 8V/us 100dB 800nA 2.8mA 10MHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Low-Noise Dual Operational Amplifiers
- Manufacturer
- COSINE
- Manufacturer part #
- COS5532SR
- Store part #
- C693059
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,200 in stock
#C693059
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.10 | ₹90.50 |
| 50+ | ₹14.53 | ₹726.50 |
| 150+ | ₹12.74 | ₹1,911.00 |
| 500+ | ₹11.40 | ₹5,700.00 |
| 2,500+ | ₹9.30 | ₹23,250.00 |
| 4,000+ | ₹8.76 | ₹35,040.00 |
5 × ₹18.10
₹90.50
excl. GST
₹106.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
COS5532SR
₹90.50 for 5 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 8V/us
- Input Offset Current(Ios)
- 200nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 800nA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 2.8mA
- Gain Bandwidth Product
- 10MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 5nV/√Hz@1kHz
- Dual Supply
- 2.5V~18V
- Single Supply
- 5V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.182 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | COS5532SRB#C5241965COSINE · SOP-8 | COSINE | SOP-8 | 205 | ₹16.03 · 205 in stock | View |
 | COSNE5532SRB#C17702540COSINE · SOP-8 | COSINE | SOP-8 | 365 | ₹15.78 · 365 in stock | View |
 | COS722SR#C693063COSINE · SOIC-8 | COSINE | SOIC-8 | 10,310 | ₹23.03 · 10,310 in stock | View |
 | COS2353SR#C2685365COSINE · SOP-8 | COSINE | SOP-8 | 4,070 | ₹40.99 · 4,070 in stock | View |
 | COS2350SR#C19078363COSINE · SOP-8 | COSINE | SOP-8 | 3 | ₹58.68 · 3 in stock | View |
