COSINEDatasheet (PDF)

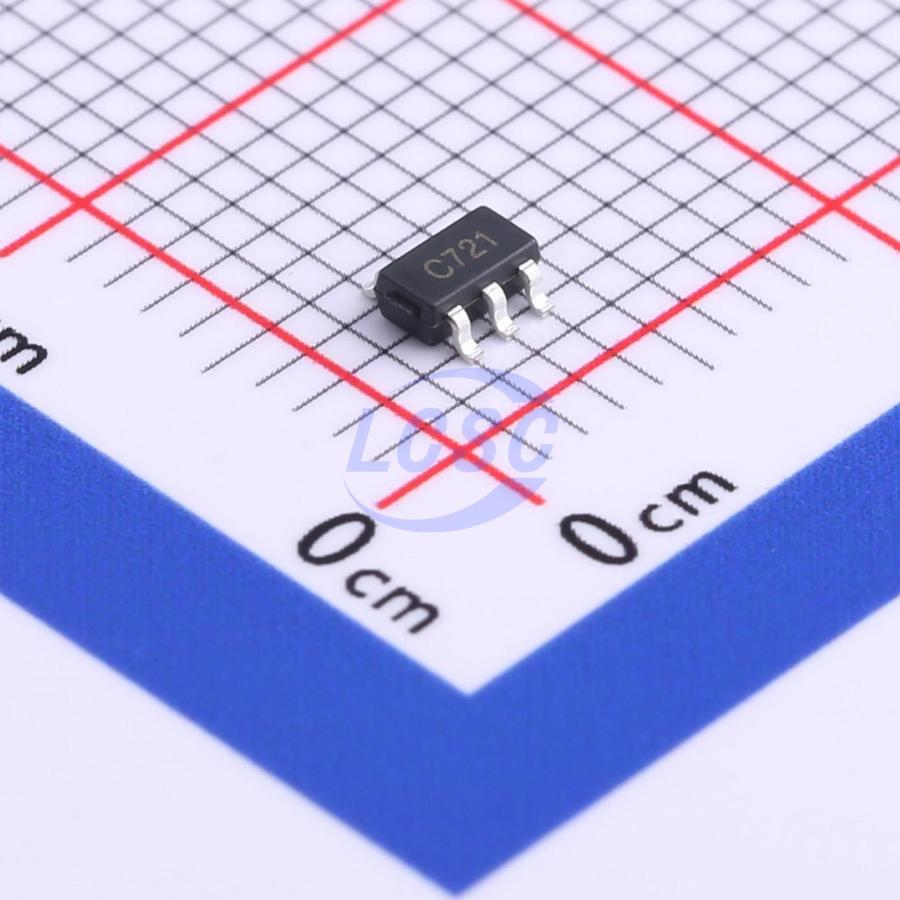

COS721TR
21mA 1 5mV 7.5V/us 2.5pA 125dB 10MHz 650uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
10MHz, Rail-to-Rail Input/Output Low Power Operational Amplifiers
- Manufacturer
- COSINE
- Manufacturer part #
- COS721TR
- Store part #
- C693056
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,605 in stock
#C693056
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.33 | ₹96.65 |
| 50+ | ₹14.95 | ₹747.50 |
| 150+ | ₹12.75 | ₹1,912.50 |
| 500+ | ₹11.11 | ₹5,555.00 |
| 3,000+ | ₹9.80 | ₹29,400.00 |
| 6,000+ | ₹9.14 | ₹54,840.00 |
5 × ₹19.33
₹96.65
excl. GST
₹114.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
COS721TR
₹96.65 for 5 + GST
Specifications
- Output Current
- 21mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 7.5V/us
- Input Offset Current(Ios)
- 2.5pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 2.5pA
- Common Mode Rejection Ratio(CMRR)
- 125dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Gain Bandwidth Product
- 10MHz
- Quiescent Current
- 650uA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 12nV/√Hz@1kHz
- Dual Supply
- 1.25V~2.75V;-2.75V~-1.25V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
