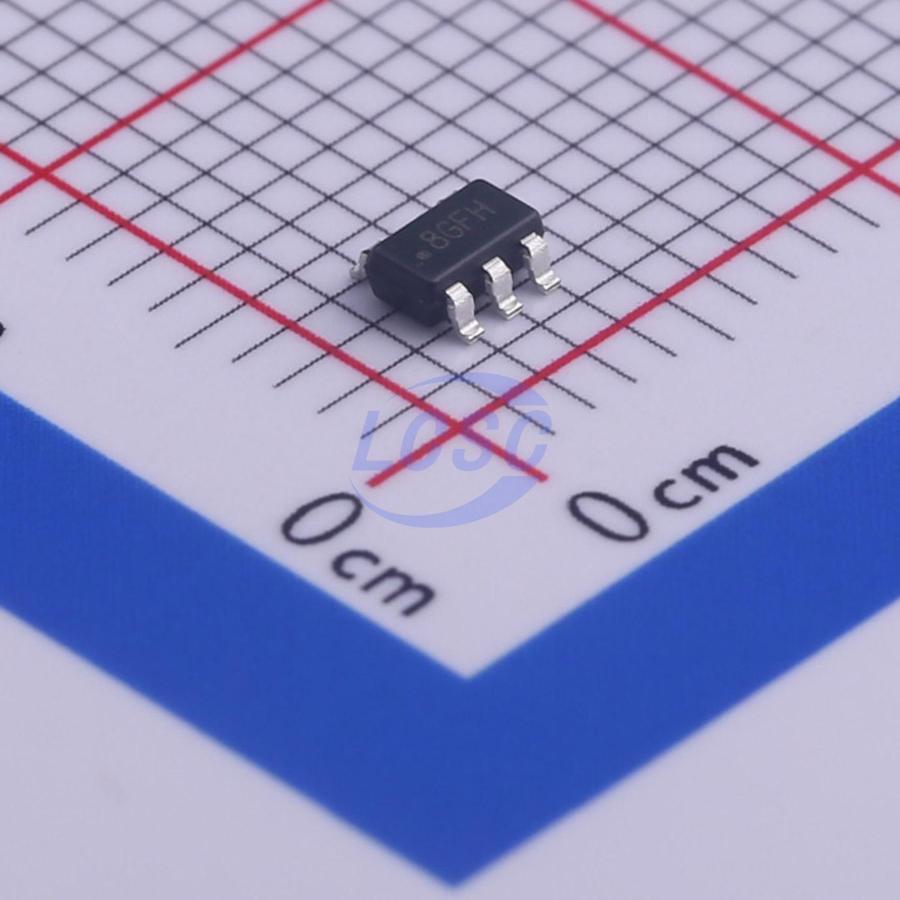

DIOODatasheet (PDF)
DIO20321ST5
48mA 1 700uV 3.6V/us 1pA 90dB 350uA 6MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- DIOO
- Manufacturer part #
- DIO20321ST5
- Store part #
- C444527
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,570 in stock
#C444527
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.97 | ₹104.85 |
| 50+ | ₹18.46 | ₹923.00 |
| 150+ | ₹17.38 | ₹2,607.00 |
| 500+ | ₹16.05 | ₹8,025.00 |
| 3,000+ | ₹14.54 | ₹43,620.00 |
| 6,000+ | ₹14.18 | ₹85,080.00 |
| 9,000+ | ₹14.01 | ₹1,26,090.00 |
| 21,000+ | ₹13.89 | ₹2,91,690.00 |
5 × ₹20.97
₹104.85
excl. GST
₹123.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO20321ST5
₹104.85 for 5 + GST
Specifications
- Output Current
- 48mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 700uV
- Slew Rate
- 3.6V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Quiescent Current
- 350uA
- Gain Bandwidth Product
- 6MHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The DI020321 (single), DI020322 (dual), DIO20324 (quad), and Dl02036 (Triple) are amplifiers with very low noise, low voltage, and low power operational. The Dl020321/2/4/6 has a high gain - bandwidth product of 6MHz, a slew rate of 3.6V/μs and a quiescent current of 350μA amplifier at 5V typically. The Dl020321/2/4/6 is designed to provide optimal performance in low voltage and low noise systems. All these chips provide rail - to - rail output swing into heavy loads. The input common - mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for D1020321/2/4/6.
Applications
- Audio Output
- Sensor Interface
- Active Filters
- A/D Converters
- Cellular and Cordless Phones
- Laptops and PDAs
- Photodiode Amplification
- Battery - Powered Instrumentation
Key features
- Supply Voltage Range: 2.5V to 5.5V
- Low Supply Current: 350μA Typically
- Rail - to - Rail Input and Output
- 6MHz High Gain - Bandwidth Product
- High Slew Rate: 3.6V/μs
- Settling Time to 0.1% with 2V Step: 2.1us
- Overload Recovery Time: 0.9μs
- Packages:
- DIO20321 Available in: SOT23 - 5/SOlC - 8
- DIO20322 Available in: SOIC - 8/MSOP - 8/TSSOP - 8
- DIO20324 Available in: TSSOP - 14/SOIC - 14
- DIO2036 Available in: QFN4*4 - 20
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DIO20721ST5#C444539DIOO · SOT-23-5 | DIOO | SOT-23-5 | 2,020 | ₹24.94 · 2,020 in stock | View |
