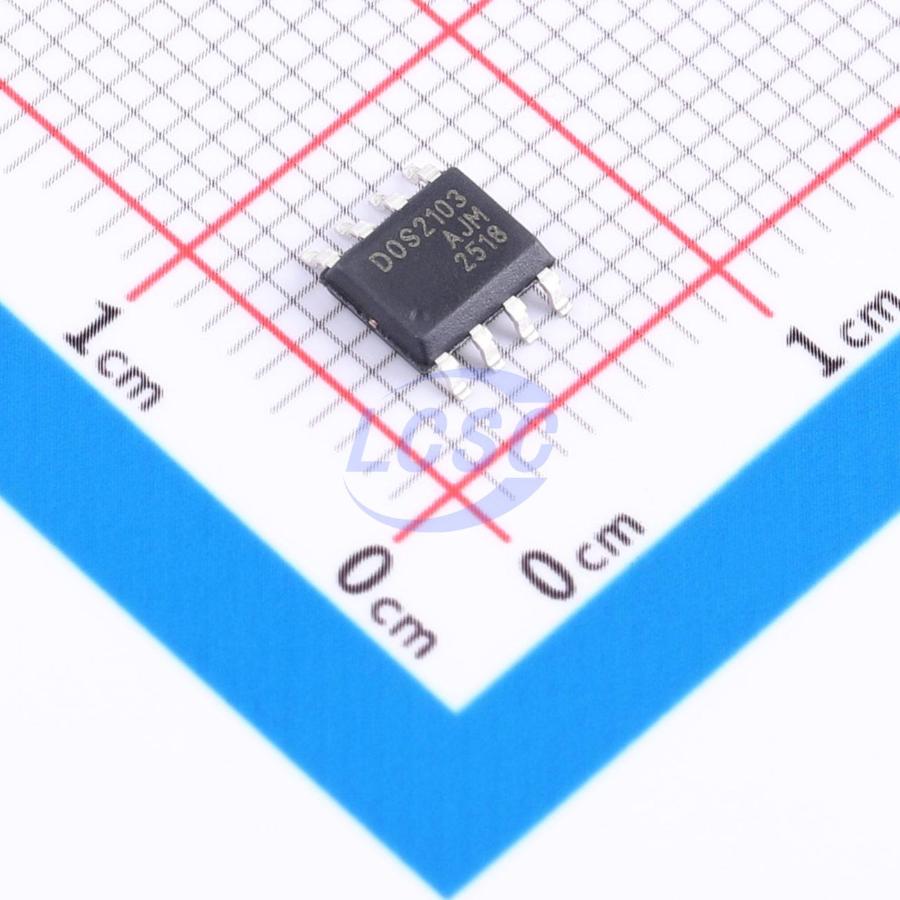

DOS2103
700V 600mA 300mA SOIC-8 Gate Drivers
- Manufacturer
- DOINGTER
- Manufacturer part #
- DOS2103
- Store part #
- C52140043
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,925 in stock
#C52140043
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.46 | ₹177.30 |
| 50+ | ₹28.03 | ₹1,401.50 |
| 150+ | ₹24.85 | ₹3,727.50 |
| 500+ | ₹20.88 | ₹10,440.00 |
| 2,500+ | ₹19.10 | ₹47,750.00 |
| 4,000+ | ₹18.05 | ₹72,200.00 |
5 × ₹35.46
₹177.30
excl. GST
₹209.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DOS2103
₹177.30 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 650ns
- High Level Delay Time
- 200ns
- Quiescent Current
- 120uA
- Input Logic Level - High
- 1V~2.5V
- Voltage - Supply
- 700V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
DOS2103 is a high-voltage high-speed power MOSFET driver with independent high-side and low-side referenced output channels. It employs proprietary HVIC and latch-resistant CMOS technology to achieve a robust monolithic structure. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic levels. The output drivers feature high-pulse-current buffer stages designed to minimize driver cross-conduction. The floating channel can be used to drive N-channel power MOSFETs in high-side configurations at operating voltages up to +700V.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro/Mini Inverter Driver
Key features
- Floating channel designed for bootstrap operation
- Full operating voltage up to +700V
- Compatible with 3.3V, 5V, and 15V logic levels
- dV/dt noise immunity of ±50 V/ns
- Allowable negative VS voltage capability of -9V
- Integrated VCC UVLO with undervoltage reset threshold of 8.9V and undervoltage set threshold of 8.2V
- Propagation characteristics: turn-on/turn-off propagation delay Ton/Toff = 650ns / 130ns, delay matching = 50ns
- Cross-conduction prevention logic with dead time of 520ns
- Wide operating temperature range: -40°C ~125°C
- Output source/sink current capability of 300mA/600mA
- RoHS-compliant SOIC8 package
