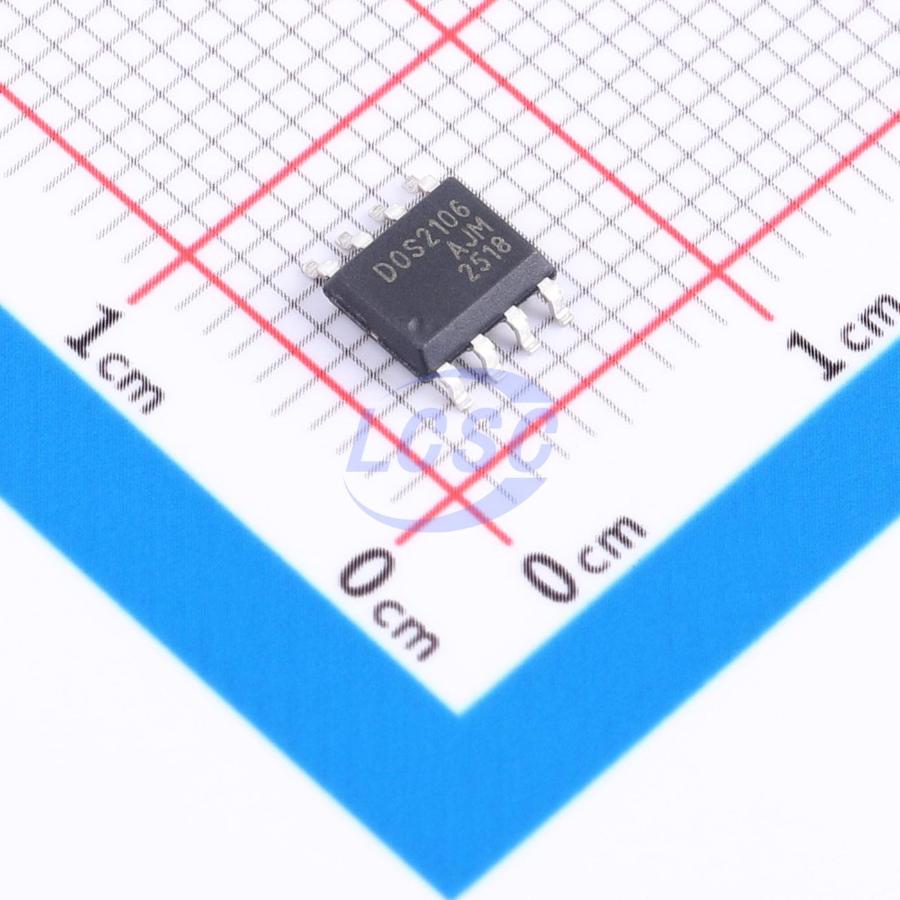

DOS2106
700V 600mA 300mA SOIC-8 Gate Drivers
- Manufacturer
- DOINGTER
- Manufacturer part #
- DOS2106
- Store part #
- C52140041
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,245 in stock
#C52140041
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.33 | ₹216.65 |
| 50+ | ₹34.25 | ₹1,712.50 |
| 150+ | ₹30.36 | ₹4,554.00 |
| 500+ | ₹25.52 | ₹12,760.00 |
| 2,500+ | ₹23.35 | ₹58,375.00 |
| 4,000+ | ₹22.05 | ₹88,200.00 |
5 × ₹43.33
₹216.65
excl. GST
₹255.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DOS2106
₹216.65 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 200ns
- Quiescent Current
- 120uA
- Input Logic Level - High
- 1V~2.5V
- Voltage - Supply
- 700V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
DOS2106 is a high-voltage, high-speed power MOSFET driver with independent high-side and low-side referenced output channels. Its proprietary HVIC and latch-up immune CMOS technology enable a robust monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic levels. The output drivers feature high-pulse-current buffer stages designed to minimize cross-conduction in the driver. The floating channel can be used to drive N-channel power MOSFETs in high-side configurations with operating voltages up to 700V.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro/Mini Inverter Driver
Key features
- Floating channel designed for bootstrap operation
- Full operating voltage up to 700V
- Compatible with 3.3V, 5V, and 15V input logic
- Tolerant of negative transient voltage, dV/dt immune
- Allowable negative Vs capability: -9V
- Gate drive supply range: 10V to 20V
- Matched propagation delay for both channels
- Wide operating temperature range: -40°C ~125°C
- Typical output source/sink current capability: 300mA/600mA
- RoHS compliant
