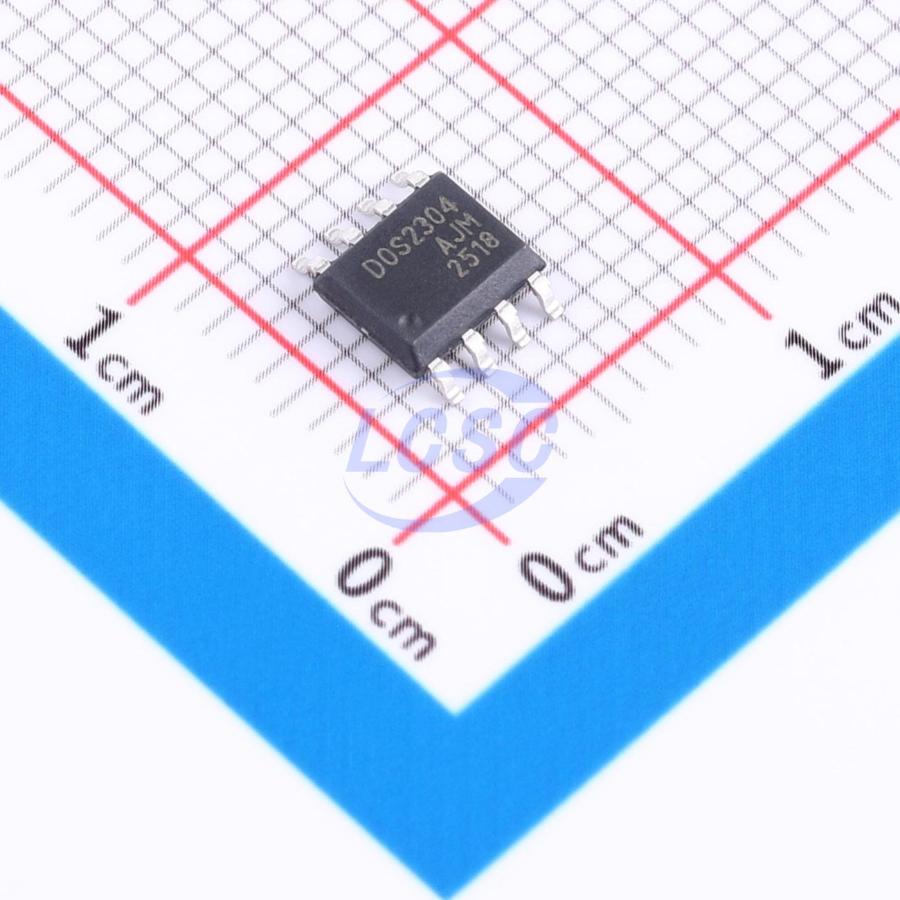

DOS2304
700V 600mA 300mA SOIC-8 Gate Drivers
- Manufacturer
- DOINGTER
- Manufacturer part #
- DOS2304
- Store part #
- C52140034
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,299 in stock
#C52140034
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.23 | ₹54.23 |
| 10+ | ₹42.97 | ₹429.70 |
| 30+ | ₹38.06 | ₹1,141.80 |
| 100+ | ₹31.92 | ₹3,192.00 |
| 500+ | ₹29.26 | ₹14,630.00 |
| 1,000+ | ₹27.62 | ₹27,620.00 |
1 × ₹54.23
₹54.23
excl. GST
₹63.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DOS2304
₹54.23 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 200ns
- Quiescent Current
- 120uA
- Input Logic Level - High
- 1V~2.5V
- Voltage - Supply
- 700V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 130ns
- Fall Time
- 70ns
- Features
- Interleaved conduction protection;Dead-time control;Built-in bootstrap diode
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
DOS2304 is a high-voltage, high-speed power MOSFET driver with independent high-side and low-side referenced output channels. Its proprietary high-voltage IC and latch-up resistant CMOS technology achieve a robust monolithic structure. Logic inputs are compatible with standard CMOS or LSTTL outputs, supporting logic levels as low as 3.3V. The output drivers feature high-pulse-current buffer stages designed to minimize driver shoot-through. The device integrates a bootstrap diode for high-side charging, simplifying the peripheral circuitry. The floating channel can be used to drive N-channel power MOSFETs in high-side configurations, with an operating voltage up to 700V.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro Inverter Driver
Key features
- Floating channel designed for bootstrap operation
- Full operating voltage up to +700V
- Compatible with 3.3V, 5V, and 15V input logic
- Tolerant of negative transient voltages, immune to dV/dt
- Allowable negative VS capability: -9V
- Gate drive supply range: 10V to 20V
- Matched propagation delay for both channels
- Wide operating temperature range: -40°C ~125°C
- Cross-conduction prevention
- Internal 100ns dead time
- Typical output source/sink current capability: 300mA/600mA
- RoHS compliant
