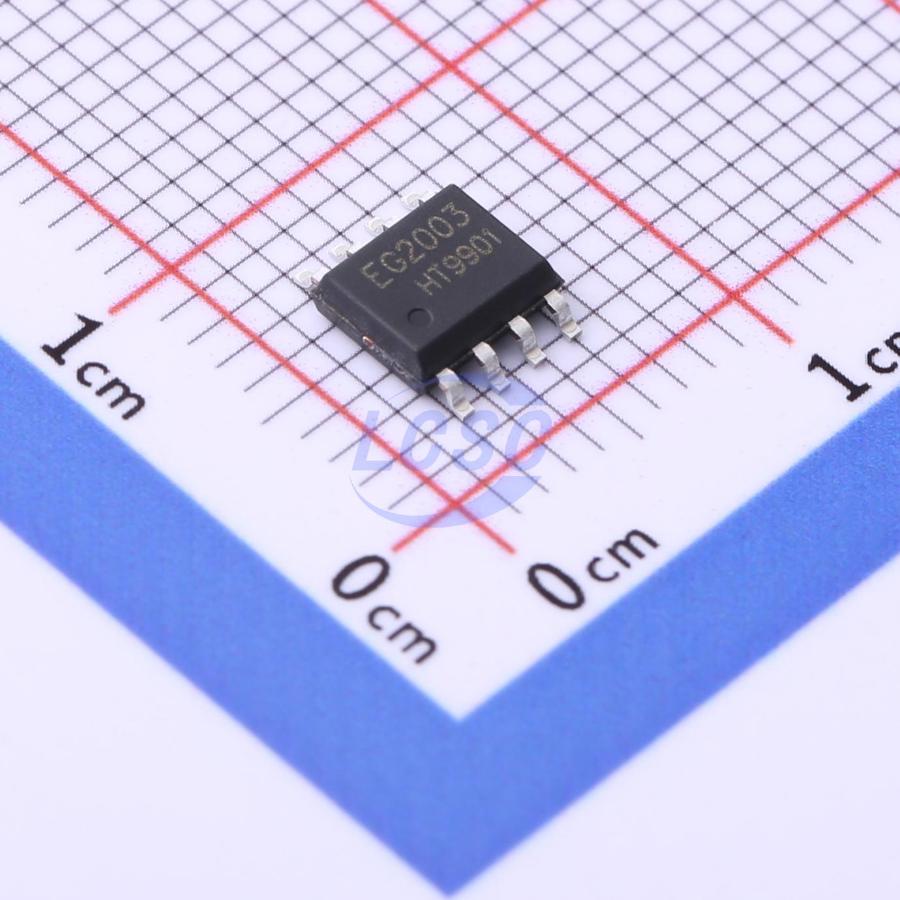

EG2003
Low Side High Side Gate Driver IC MOSFET IGBT SOP-8
MOSFET driver IC
- Manufacturer
- EG Micro
- Manufacturer part #
- EG2003
- Store part #
- C2987443
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,425 in stock
#C2987443
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.37 | ₹146.85 |
| 50+ | ₹25.77 | ₹1,288.50 |
| 150+ | ₹24.22 | ₹3,633.00 |
| 500+ | ₹22.29 | ₹11,145.00 |
| 2,500+ | ₹21.43 | ₹53,575.00 |
| 4,000+ | ₹20.92 | ₹83,680.00 |
5 × ₹29.37
₹146.85
excl. GST
₹173.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG2003
₹146.85 for 5 + GST
Specifications
- Input Logic Level - Low
- -300mV~1V
- Quiescent Current
- 200uA
- Voltage - Supply
- 10V~20V
- Driven Configuration
- High Side;Low Side
- Operating Temperature
- -45℃~+125℃
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 70ns
- Fall Time
- 35ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.166 g
Overview
EG2003 is a cost-effective gate driver IC dedicated to MOSFETs and IGBTs. It integrates logic signal input processing circuitry, undervoltage lockout (UVLO) protection, level shifting, pulse filtering, and output driver circuitry, designed specifically for brushless motor controllers and DC-DC power supply drive circuits. The EG2003 supports a high-side operating voltage up to 200V and a wide low-side Vcc supply voltage range of 10V~20V. The HIN input channel features a built-in 200K pull-down resistor, and the LIN input channel features a built-in 200K pull-down resistor, ensuring both high-side and low-side power MOSFETs remain off when inputs are floating. Output current capability is I O +/- 0.3A/0.6A. Available in SOP8 package.
Applications
- Mobile power high-voltage fast-charge switching power supply
- Wireless charging driver
- Variable frequency pump controller
- DC-DC power supply
- Brushless motor driver
Key features
- High-side floating bootstrap power supply design, withstand voltage up to 200V
- Compatible with 5V and 3.3V input voltage
- Maximum frequency up to 500KHz
- VCC and VB supply with undervoltage lockout (UVLO) protection
- Low-side VCC voltage range: 10V - 20V
- Output current capability: |0 +/- 0.3A/0.6A
- Built-in dead-time control circuit; HIN input channel active-high, controls high-side HO output; LIN input channel active-low, controls low-side LO output
- Minimal external components
- Package: SOP-8
