EnergyMathDatasheet (PDF)

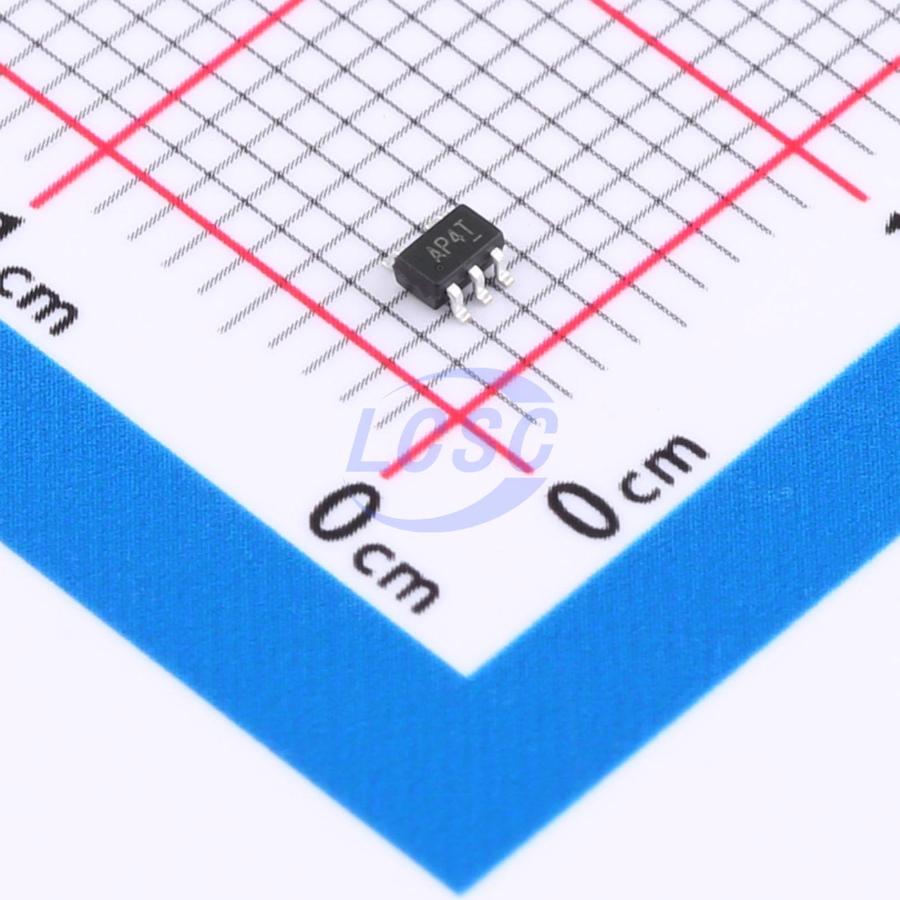

EM74AHC1G125GW
2V~5.5V 1 1 3.9ns@4.5V,15pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
Bus buffer/line driver; 3-state
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74AHC1G125GW
- Store part #
- C49188275
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,780 in stock
#C49188275
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.45 | ₹74.50 |
| 100+ | ₹5.89 | ₹589.00 |
| 300+ | ₹5.11 | ₹1,533.00 |
| 3,000+ | ₹4.52 | ₹13,560.00 |
| 6,000+ | ₹4.06 | ₹24,360.00 |
| 9,000+ | ₹3.82 | ₹34,380.00 |
10 × ₹7.45
₹74.50
excl. GST
₹87.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74AHC1G125GW
₹74.50 for 10 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Function
- Output enable;Level shifting
- Current - Output High(IOH)
- 8mA
- Series
- 74AHC
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3.9ns@4.5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
EM74AHC1G125 and EM74AHCT1G125 are single buffer/line drivers with tri-state output. Their inputs are overvoltage tolerant, enabling these devices to function as level translators in mixed-voltage environments.
Key features
- Wide supply voltage range: 2.0V to 5.5V
- Input overvoltage tolerance up to 5.5V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 200 mA
- Symmetrical output impedance
- Balanced propagation delay
- Input levels: CMOS level for EM74AHC1G125; TTL level for EM74AHCT1G125
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 7000 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
