EnergyMathDatasheet (PDF)

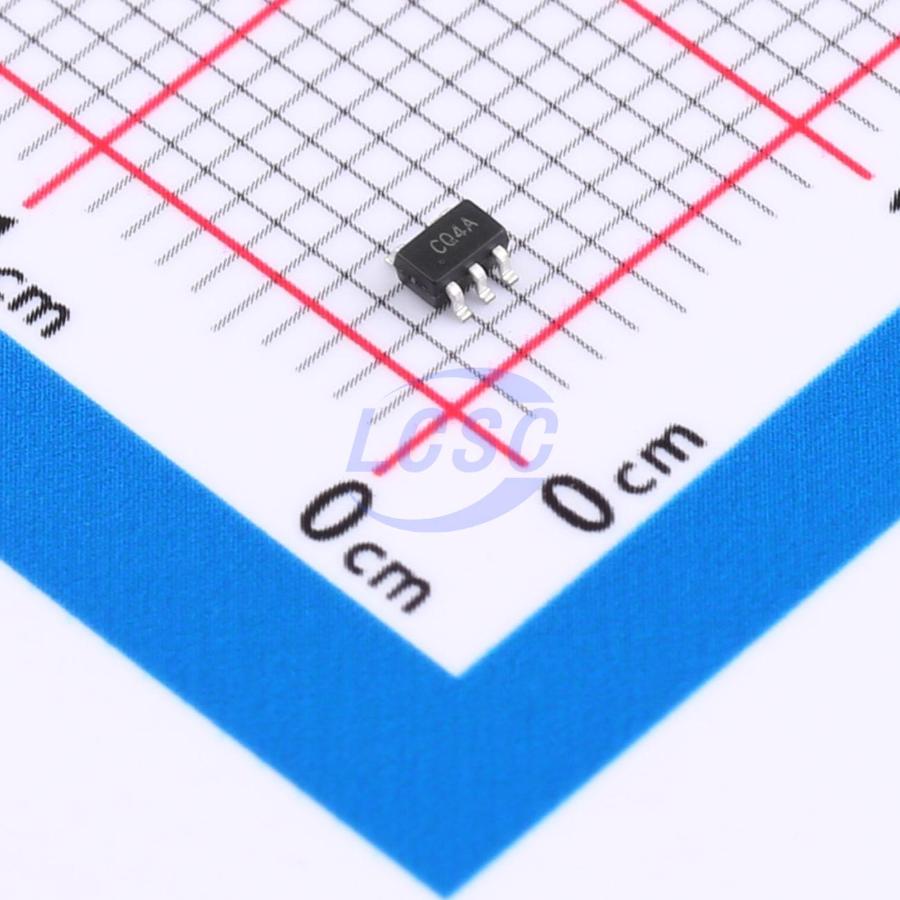

EM74AHCT1G126GW
2V~5.5V 1 1 5ns@5.5V,15pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74AHCT1G126GW
- Store part #
- C49188262
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,485 in stock
#C49188262
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.24 | ₹51.20 |
| 50+ | ₹8.10 | ₹405.00 |
| 150+ | ₹7.03 | ₹1,054.50 |
| 500+ | ₹6.22 | ₹3,110.00 |
| 3,000+ | ₹5.57 | ₹16,710.00 |
| 6,000+ | ₹5.25 | ₹31,500.00 |
5 × ₹10.24
₹51.20
excl. GST
₹60.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74AHCT1G126GW
₹51.20 for 5 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Function
- Output enable;Level shifting
- Current - Output High(IOH)
- 8mA
- Series
- 74AHCT
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 5ns@5.5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
EM74AHC1G126 and EM74AHCT1G126 are single buffer/line drivers with tri-state outputs. Their inputs feature overvoltage tolerance, enabling these devices to be used as level translators in mixed-voltage environments.
Key features
- Wide supply voltage range: 2.0V to 5.5V
- Input overvoltage tolerance up to 5.5V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 200 mA
- Symmetrical output impedance
- Balanced propagation delay
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 7000 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EM74AHCT1G125GW#C49188264EnergyMath · SOT-353 | EnergyMath | SOT-353 | 1,075 | ₹10.20 · 1,075 in stock | View |
 | EM74AHC1G125GW#C49188275EnergyMath · SOT-353 | EnergyMath | SOT-353 | 2,780 | ₹7.45 · 2,780 in stock | View |
 | EM74AHC1G126GW#C49188274EnergyMath · SOT-353 | EnergyMath | SOT-353 | 10 | ₹7.45 · 10 in stock | View |
 | EM74AHC1G07GW#C49188281EnergyMath · SOT-353 | EnergyMath | SOT-353 | 2,940 | ₹8.85 · 2,940 in stock | View |
